The Ultimate Guide to Guitar Wiring Upgrades: Prewired Harnesses vs DIY Kits
When guitarists try to elevate their instrument's tone, the first instinct is almost always to swap out the pickups. But after spending hundreds of dollars on custom single-coils or premium humbuckers, many players face an irritating bottleneck: the instrument still sounds muddy, lacks dynamic control, or suffers from high-end treble loss when the volume knob is rolled back.
The hidden culprit is almost always your factory electronics. Standard production instruments are built using cheap, high-tolerance components that choke your signal before it ever reaches the amplifier.
"High-tolerance" components means that while the part (a capacitor or potentiometer) might be marked, for example, 250k ohms, it might have a high tolerance rating of 20%, meaning that manufacturer only guarantees that the actual measured value is within 20% of the marked value. In our example the potentiometer with 20% tolerance might have an actual maximum resistance of only 200k ohms or as high as 300k ohms. So the values intended by the circuit designer may not actually exist in the components in your guitar, and thus the sound is not correct.
Committing to a comprehensive guitar wiring harness upgrade is the most definitive way to restore your guitar's clarity, open up its dynamic range, and gain ultimate control over your output.
But when you decide to overhaul your internal layout, you hit a classic workbench dilemma: Should you source individual components and assemble a guitar electronics kit from scratch, or invest in a professionally built, drop-in layout? This guide lays out the anatomy of premium prewired guitar electronics so you can determine the best strategy for your project to secure the best value guitar electronics harness kit.
Anatomy of a Premium Guitar Circuit
To find the best value guitar electronics harness kit, you have to look beyond the surface and evaluate the specific internal components. A true premium overhaul relies on highly stable, pro-grade parts working together seamlessly:
Potentiometers (Pots)
Standard factory pots often feel like on/off switches, where all your volume changes bunch up at one end of the dial. High-grade potentiometers (such as Bourns Pro Audio or CTS) feature low tolerance and smooth resistance curves that sweep predictably from 1 to 10.
Tone Capacitors
Capacitors filter out harsh high frequencies. Moving to historic Paper-in-Oil (PIO) or reliable Sprague Orange Drop capacitors ensures a warm, musical top-end roll-off without muddying your core tone.
Switches and Output Jacks
Genuine Switchcraft USA and Centralab toggle switches, Oak-Grigsby blade switches, and Switchcraft USA mono jacks provide crisp, positive detents and reliable structural connections that eliminate cutouts and crackling.
Vintage Pushback Cloth Wire
Authentic Gavitt cloth-covered pushback wire and braided shielding help ground your entire chassis, isolating your single-coil or humbucker signals to drive away unwanted background hum.
Taper, Resistance, and Wiring Styles
Before committing to a guitar wiring harness upgrade, you need to choose and tailor the circuit's technical specs to your specific guitar model:
Audio vs. Linear Taper
Human hearing perceives changes in volume logarithmically rather than linearly. Linear taper pots often cause volume changes to feel cramped between 10 and 8. We utilize audio taper pots because their electrical curves track the human ear's perception, resulting in an exceptionally balanced, responsive sweep.
The Resistance Rule: 250k vs. 500k
The resistance of your pots determines how much top-end treble bleeds into your ground connection. As a baseline engineering rule, single-coil pickups (like Stratocasters) need 250k pots to tame ice-pick high frequencies. Higher-output humbuckers (like Les Pauls) require 500k pots to preserve their natural top-end clarity and keep the neck position from sounding muddy.
Vintage '50s Wiring vs. Modern Standard
Modern factory circuits are simple to run, but they suffer a major flaw: as you roll down your volume knob, your tone turns dark and muddy. Vintage '50s wiring styles change the interaction between the volume and tone controls. This historic layout keeps your output bright, punchy, and clear across the entire sweep of the volume pot.
DIY Kit vs. Prewired Drop-In Harness
Assembling a raw guitar electronics kit by yourself is a satisfying challenge, but it requires solid technical skill. Sourcing individual pieces means handling multiple hot solder joints directly over your guitar's finish. A bad joint creates high resistance, which causes tone loss or creates ground loops that introduce loud hums.

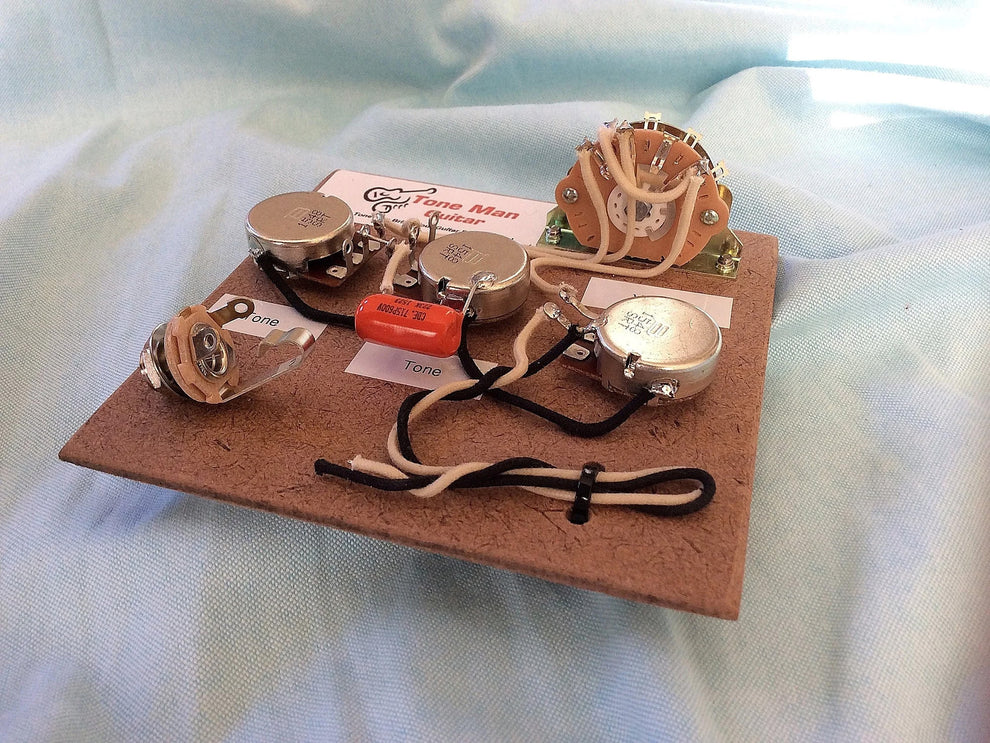

Opting for professional prewired guitar electronics changes the game. A pre-assembled loom is hand-wired, meticulously grounded, and bench-tested on a dedicated jig before installation. This completely eliminates the risk of overheating internal pot tracks with a loose soldering iron or of making a mistake on a complex wiring blueprint.
The value of a prewired assembly depends heavily on the model you are working on:
Stratocasters & Telecasters
Relatively straightforward, as the components are mounted to an accessible pickguard or a flat control plate.
Les Pauls & SGs
Moderate difficulty due to long, narrow chassis grounding channels and deep wood control cavities.
ES-335 & Semi-Hollow Guitars
Extreme Difficulty because hollowbody instruments like the ES-335 lack a rear access panel, you have to solder every single component outside the body and fish the loose assembly through the narrow f-holes using surgical tubing or fishing line. Utilizing a pre-spaced, prebuilt wiring loom is practically essential to keep your sanity intact during a hollowbody project.
Crucial Physical Fitment Parameters
Avoid ordering parts blindly by checking these three mechanical parameters first:
Bushing Length (Long vs. Short Shaft)
Modern production carved-top Gibsons need long-shaft pots (3/4 inch) to clear the thick wood floor. Flat-top guitars, SGs, Fenders, and historic reissues use short-shaft pots (3/8 inch). Always measure only the threaded part of the bushing to verify your model's requirement.
The Import Metric Trap
Import brands (like Squier, Epiphone, or Ibanez) use metric dimensions (M8 holes). Premium USA upgrade components require an imperial 3/8-inch hole layout. You will need to cleanly enlarge the pickguard or top wood holes with a hand reamer to accommodate full-size USA pots.
Knob Splines
USA CTS pots use a fine-spline design (24 teeth), while many premium Bourns Pro Audio pots use a coarse-spline design (18 teeth). Ensure your replacement control knobs match the spline tooth count of your new shafts to avoid splitting the metal during assembly.
Fitment Reference Matrix
| Guitar Family | Pot Value Option | Recommended Setup Style | Essential Fitment Spec |
|---|---|---|---|
| Gibson Les Paul Standard | 500k Audio Taper | '50s Vintage Style | Long-Shaft Bushing |
| Gibson Custom / SG / Junior | 500k Audio Taper | '50s Vintage Style | Short-Shaft Bushing |
| Epiphone Les Paul / SG | 500k Audio Taper | '50s Vintage Style | Short Shaft (Requires Reaming) |
| Fender Stratocaster | 250k Audio Taper | Modern or Custom EJ | Short-Shaft Bushing |
| Squier Stratocaster | 250k Audio Taper | Modern Standard | Short Shaft (Requires Reaming) |
| ES-335 / Hollowbody | 500k Audio Taper | '50s Vintage Style | Prebuilt Pre-spaced Loom |
