Firebird Wiring Harness - Premium Prewired Kit - PIO Tone Caps

Upgrade your guitar with the Tone Man Guitar Premium Firebird wiring harness.  This prewired kit uses high-quality components designed to deliver smoother control, improved reliability, and true vintage tone.  Each harness is carefully assembled and tested in my shop with pride and includes wiring diagram and installation instructions for easy installation.  I want you to be 100% satisfied!

• Premium quality components

• 50s wiring configuration for the best tone
• Clear wiring diagram included for easy installation
• Ships to your USA front door For FREE

Product Description

This prewired Premium Firebird wiring harness is built using premium components selected for reliability and tonal performance.  The vintage 50s wiring helps maintain clarity when rolling down the volume while delivering smooth and responsive tone control. Improves sustainability.

What's Included

• Bourns Pro Audio 500K potentiometers coarse spline (short shaft)
• Paper in Oil tone capacitors Centralab .033uf bridge .015uf neck
• Switchcraft or Centralab 3-way toggle switch r angle prewired black tip
• Switchcraft 1/4-inch jack
• Vintage style  Gavitt Cloth 22 awg push-back wire

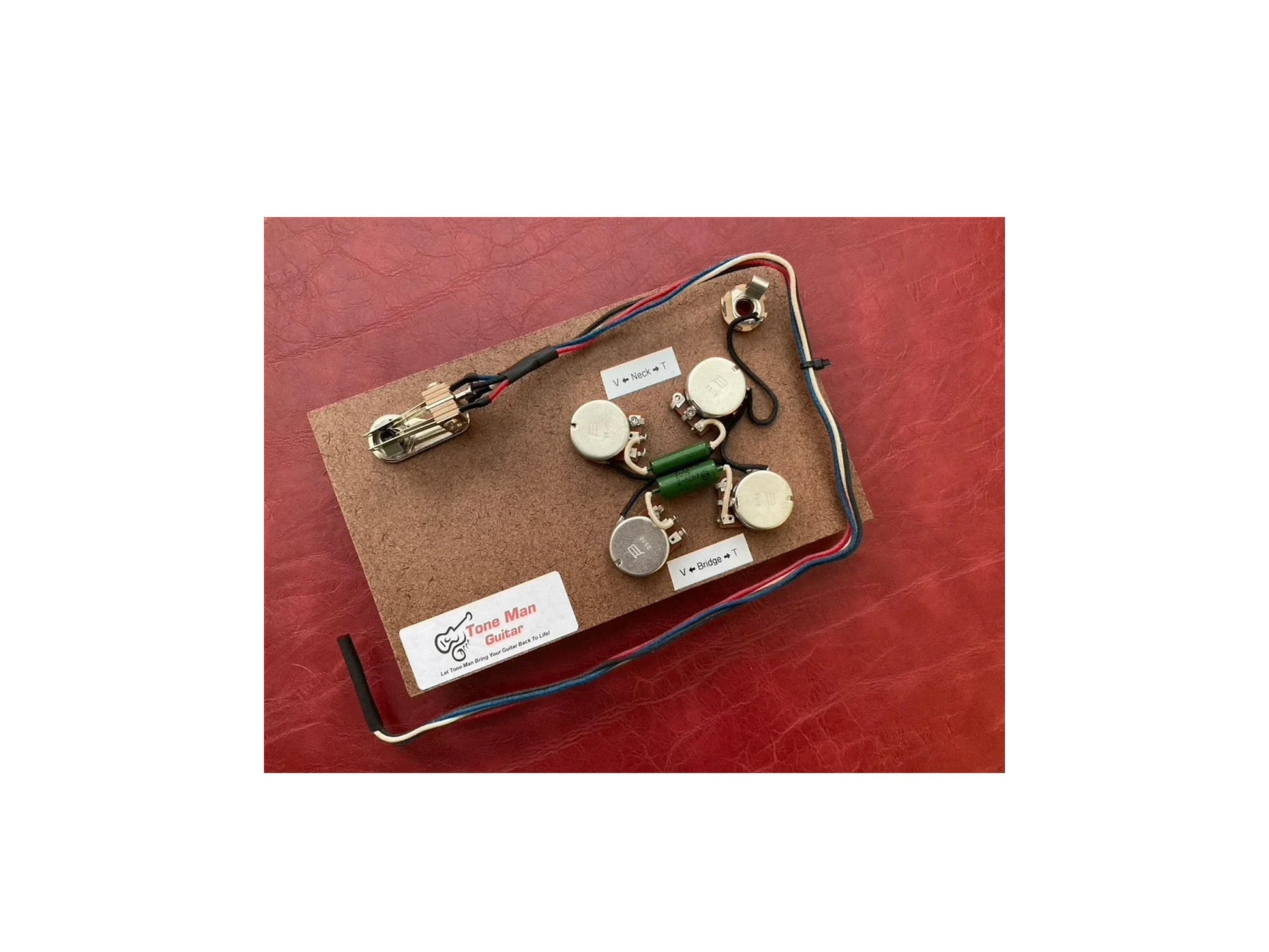

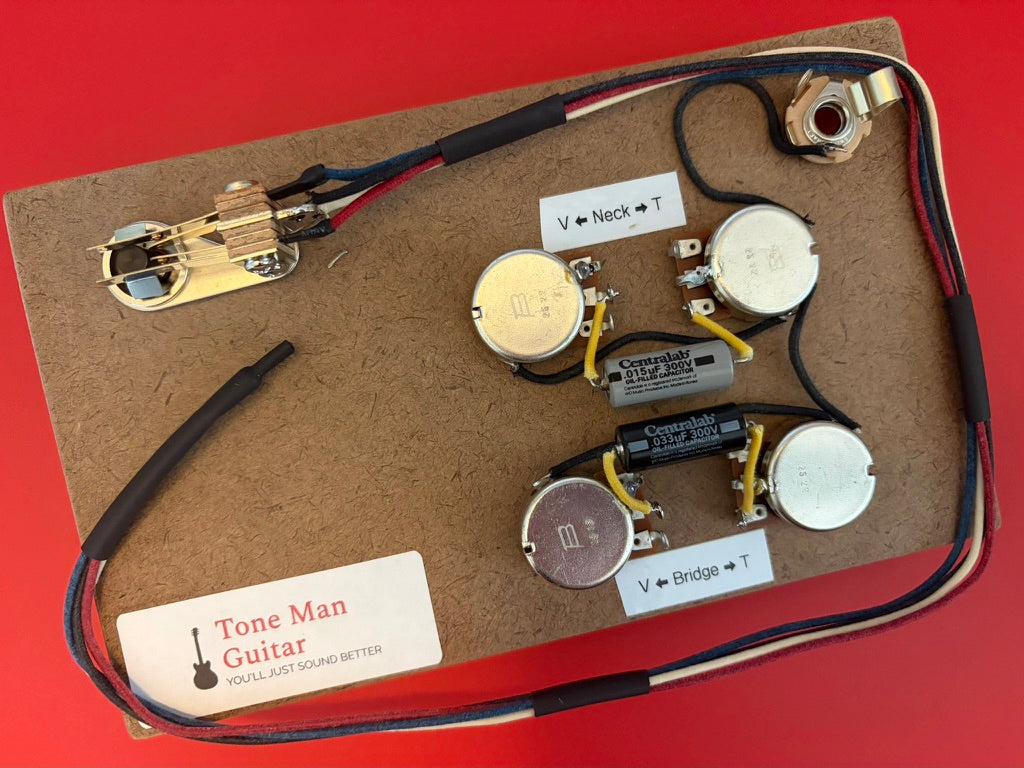

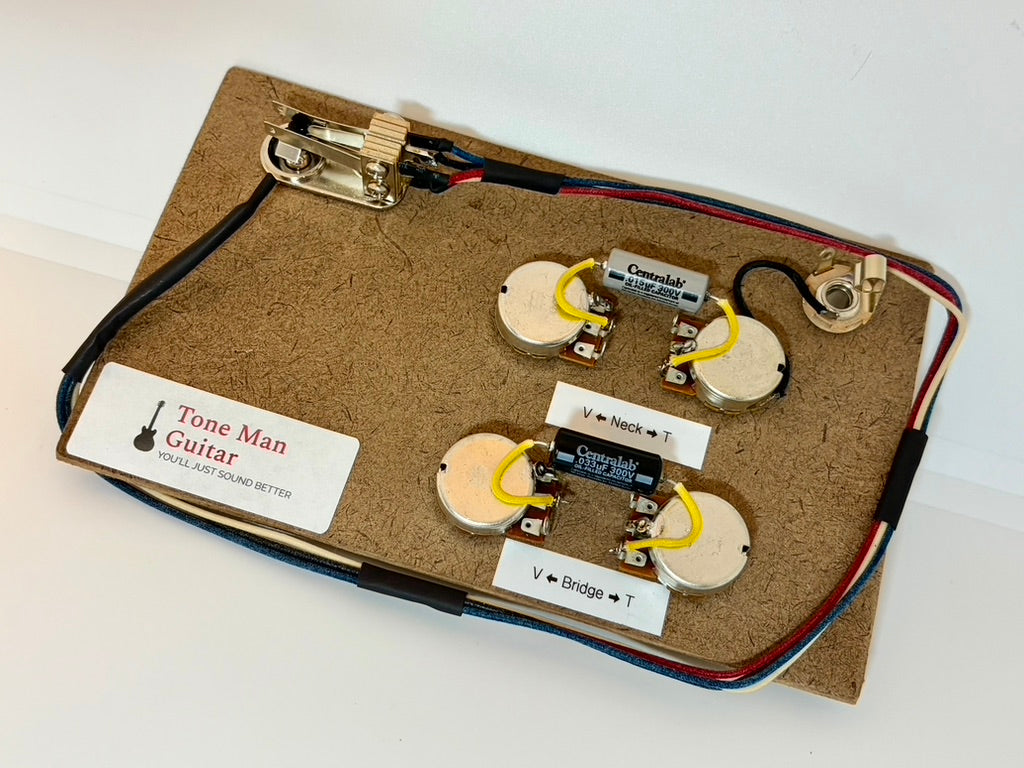

• Fully prewired harness assembly board drilled to specs
• Wiring diagram and installation instructions

For additional various product details see our Product Information page.

Tone Benefits

• Improved clarity and signal response and Sustain
• Smooth volume and tone controls
• Vintage style tonal response
• Reliable professional grade components

Compatibility

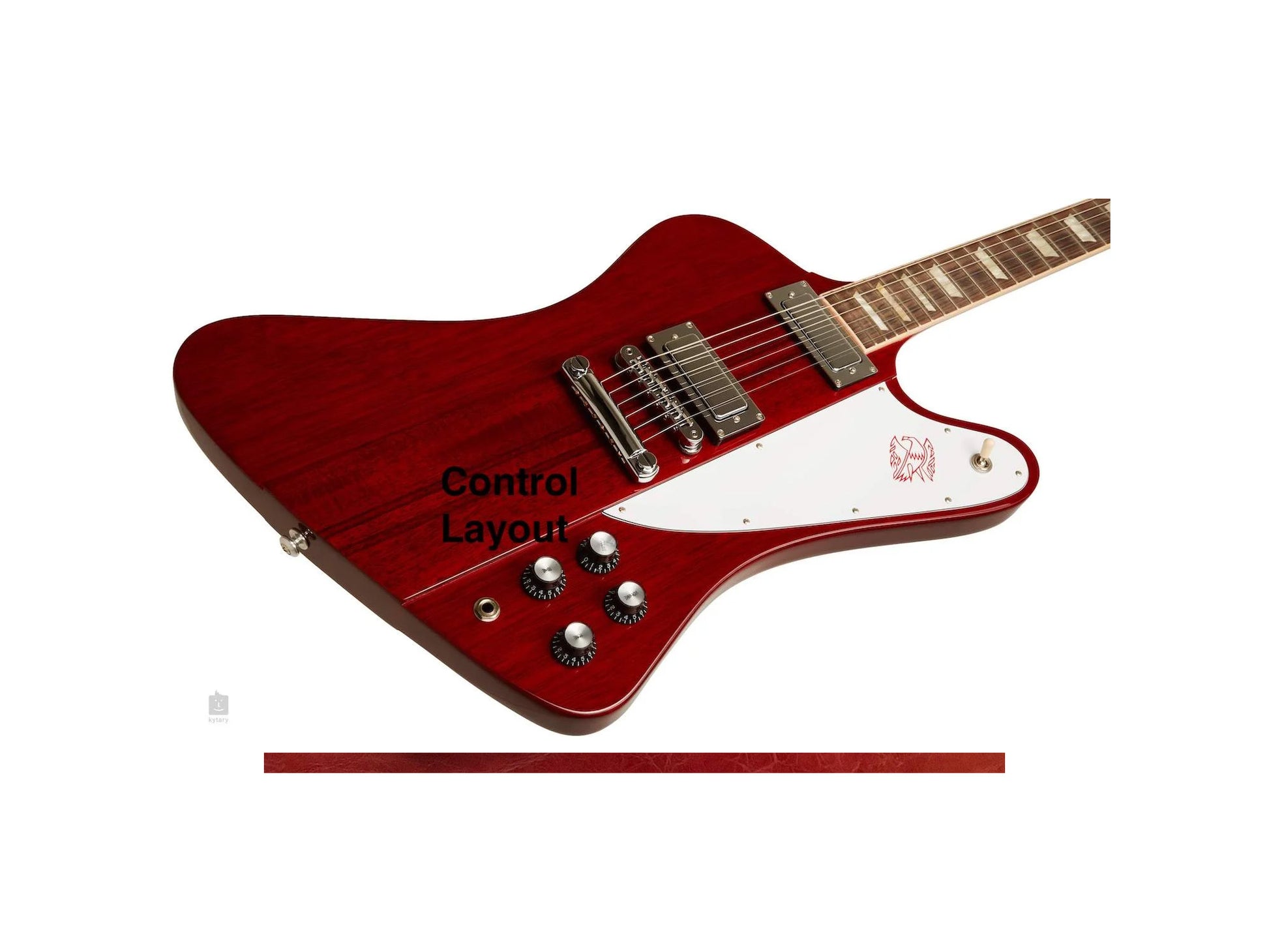

• Gibson or Epiphone 4 Control Firebird controls located under pickguard

• Knob fitting requires 18 teeth coarse spline knobs (we sell new knobs)
• Pot hole size requirements 3/8 inch

• If you're not sure what you need reach back to us thru the "Contact Us" link


Check your guitars 3 way switch type. We use the R-Angle Switch prewired (see pictures) that lays angled in the cavity under the pick guard. If yours is different send us an email before purchase for options

Template component distance measurements. Compare to your guitar

• Volume to volume 2" Tone to tone 2"
• Volume to tone 2" Jack to switch  wire run 9"
• Jack to neck tone 3"
• Prewired switch wire run 20"

This wiring harness is custom built to order after purchase.  Lead time to build kit prior to shipping is 5 to 10 business days. In stock means we have the parts to build your kit.

Cheers,

Gary Standerfer / Tone Man Guitar

Free USA Shipping

This kit is for: Gibson or Epiphone Firebird 4 controls in component cavity with R angle switch located under pick guard.

What's In The Kit Kit:

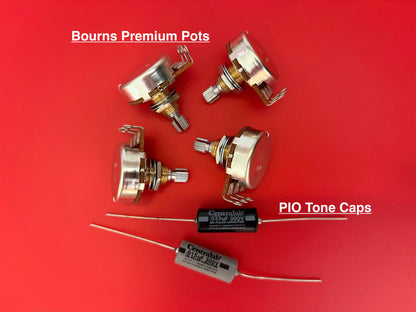

•  Bourns Pro Audio 500K potentiometers - Short-Split-Shaft, Audio Taper Coarse Spline 18 Teeth
•  PIO Centralab tone caps .033uf bridge .015uf neck
•  Switchcraft or Centralab (brand depends on availability) prewired 3-way r-angle toggle switch black tip.
•  Switchcraft 1/4 Output Jack
•  50’s style Gavitt cloth push back 22awg wiring through out
•  Assembled template hard board.  Note the template does not get installed.
• 50’s Wiring diagram and easy to read step by step installation instructions.
• Every kit goes thru our Performance and Accuracy Testing before being shipped out. Our kits work.

For additional product details go to our Product Information page,

Template component distance measurements:

• Vol to vol 2"
• Tone to tone 2"
• Vol to tone 2"
• Jack to neck tone 3"
• Prewired switch wire run 20"

NOTES:

• Check your guitars 3 way switch type. We use the R-Angle Switch prewired (see pictures) that lays angled in the cavity under the pick guard. If yours is different send us an email before purchase for options.

• Note: If you have an imported guitar (e.g. Japan, China, etc.) or have mini pots you may need to modify the potentiometer holes to 3/8 inch to accommodate the Bourns bushings.

• Each harness is custom built after purchase.  Lead time to build before shipping is 5 to 12 business days depending on our back log of orders. In stock means we have the parts to build.
