TONE MAN GUITAR: COLLECTIONS

Prewired Hollowbody Wiring Harnesses

Pre-spaced, drop-in prewired harnesses for Gibson, Epiphone, and Ibanez semi-hollow and archtop guitars. Fits ES-335, ES-339, ES-295, ES-175, Joe Pass, Casino, Sheraton, and Dot models with 500K Bourns pots and PIO caps.

Drop-In Assemblies for ES-335 & Semi-Hollow Guitars

Installing electronics through a semi-hollow f-hole is notoriously difficult. Tone Man Guitar solves this by hand-soldering each hollowbody harness on custom-drilled templates that match exact body spacing. Components feed smoothly through the f-hole as a unified assembly with built-in wire slack to prevent binding.

ES-335 vs. ES-339 Fitment Specifications

  • ES-335 / Archtop Models: Standard 500K short-shaft Bourns pots with Switchcraft right-angle toggle switch and braided wire.
  • ES-339 / Tighter F-Holes: Engineered for narrower f-hole openings (minimum 1-1/8" clearance) found on modern Epiphone Inspired by Gibson models.

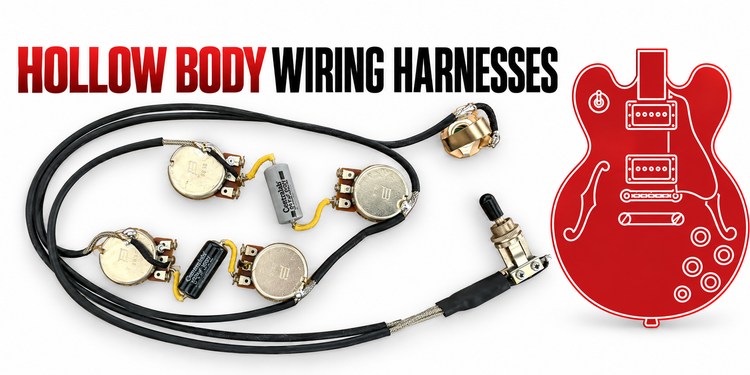

Prewired ES-335 hollowbody harness with Switchcraft toggle switch and Bourns pots

Tone Man Guitar Products in this Collection

Vintage 50s Tone Architecture

Replaces factory printed circuit boards (PCB) and thin ribbon cable with point-to-point vintage Gavitt braided wire and Centralab Paper-in-Oil tone capacitors (.033uF bridge / .015uF neck) for maximum hollowbody air, resonance, and dynamic response.
