Upgrade your guitar with the Tone Man Guitar Premium '59 Series single-pickup hollow body wiring harness. This prewired harness is built for hollow body guitars with one pickup and two controls (1 volume, 1 tone). It isn't made for a specific model: check the measurements below against your guitar before ordering. Each harness is carefully assembled and tested in my shop and includes a wiring diagram and step-by-step installation instructions. I want you to be 100% satisfied!
- Premium quality components
- 50s wiring configuration for the best tone
- Clear wiring diagram and installation instructions included
- Ships to your USA front door for FREE
What's Included

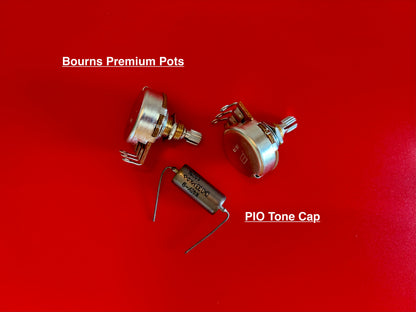

- Bourns Pro Audio 500K potentiometers, short split shaft, audio taper (qty 2: 1 volume, 1 tone)
- Paper-in-oil (PIO) .033uF tone capacitor
- Switchcraft 1/4" output jack
- Gavitt-style 22 AWG cloth push-back wire for grounding, plus 22 AWG braided cloth push-back wire

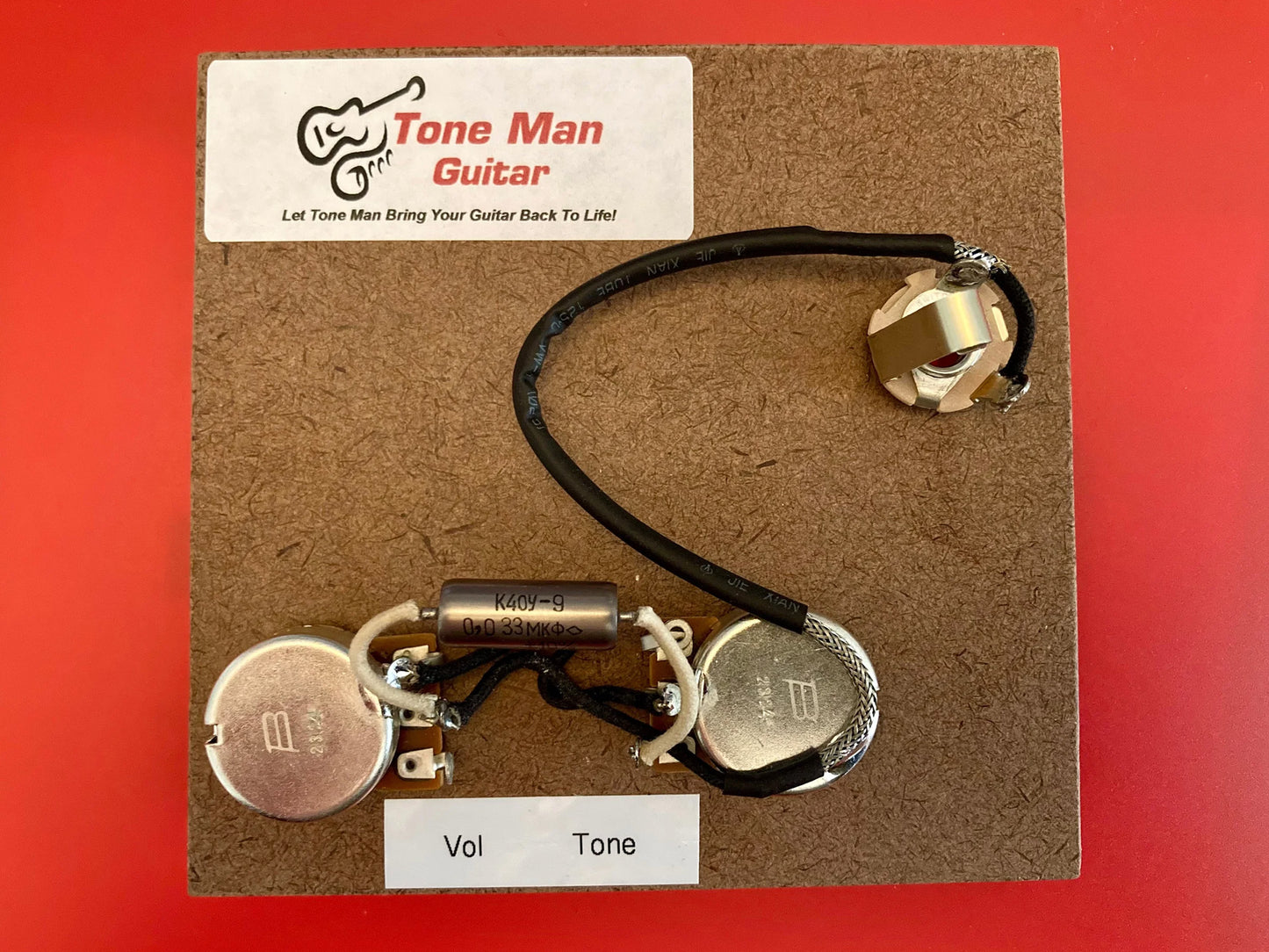

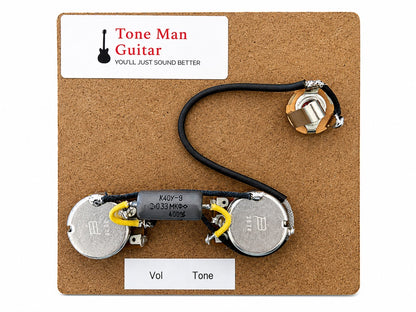

- Fully prewired on an assembly board, with only the final pickup and ground connections left to make (the board is for building and shipping only; it isn't installed)
- Wiring diagram and step-by-step installation instructions
For additional product details, see our Product Information page.
Compatibility
- Hollow body guitars with a single pickup and 2 controls (1 volume, 1 tone). See the control layout photo.
- Pot holes and jack hole must be 3/8". Imported guitars (Japan, China and others) may need the pot holes reamed to 3/8" for the Bourns bushings.
- Need new knobs? See our knobs.
- Not sure it fits? Reach out through the Contact Us page.
Fitment Measurements
Compare these to your guitar:
- Volume to tone: 2.5"
- Tone to jack: 4". Need more, up to 8"? Add a note to your order.
- F-hole minimum opening for feeding the harness through: 1-1/8" at the widest point. It can also be fed through the pickup opening.
Shipping & Build Time
Every harness is custom built to order and tested before it ships. Lead time to build before shipping is 4 to 6 business days. In stock means we have the parts to build your harness.
Cheers,
Gary Standerfer / Tone Man Guitar
Workbench Note:
Single-pickup archtops and hollow bodies come in many shapes, so this single pickup hollow body wiring harness is built to a standard 2-control layout rather than one model. The measurements above are what matter: if your volume and tone pots sit about 2.5" apart and your f-hole or pickup opening is at least 1-1/8" wide, it will fit. Have a two-pickup hollow body? See our ES-175 wiring harness.
