Prewired SG Wiring Harnesses

Drop-in 50s prewired wiring harnesses for Gibson and Epiphone SG models. Built with Bourns Pro Audio 500K short-shaft potentiometers, Centralab Paper-in-Oil or Orange Drop capacitors, and Switchcraft right-angle 3-way toggle switches.

Vintage 50s & Modern Wiring Upgrades for SG Guitars

Because SG control cavities are shallow, they require short-shaft potentiometers and right-angle toggle switches. Our prewired SG harnesses deliver clean component clearance, rock-solid grounding, and true 50s-style audio tapers that prevent sudden volume drop-offs.

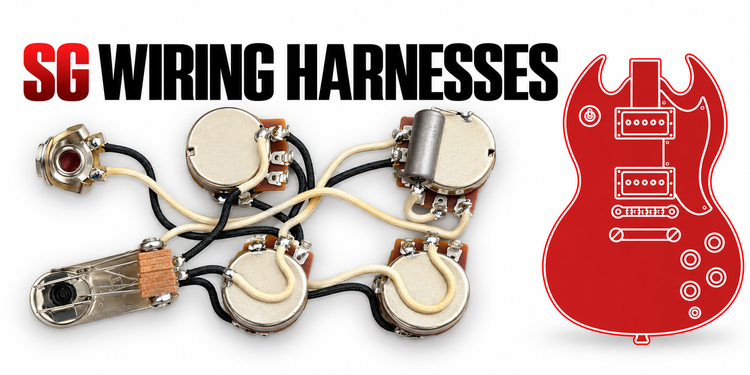

Hand-soldered prewired SG wiring harness with 500K Bourns pots and vintage PIO capacitors

Tone Man Guitar Products in this Collection

Available SG Configurations

  • Standard 2-Pickup SG: Two volume controls, two tone controls, 50s wired with .022uF or .033uF/015uF PIO caps.
  • SG 3-Pickup 59 Premium: Specialized 3-humbucker switching layout with custom cap values.

Bench-Tested Drop-In Assembly

Arrives fully prewired on a custom SG cavity template. Connect your pickup lead wires and bridge ground to the marked soldering points for an immediate upgrade in clarity and sweep control.
