SG 3-Pickup Wiring Harness – Prewired, Short Shaft, PIO Cap
SG 3-Pickup Wiring Harness – Prewired, Short Shaft, PIO Cap
Gary Standerfer - Tone Man Guitar.
Couldn't load pickup availability
What players say · from verified buyers
“Best wiring harnesses out there. The soldering is top notch. Everything is looks clean and tidy. Comes with really great instructions.”
Les Paul owner
“Answered all questions I had within minutes. One of the best transactions I have ever had.”
Les Paul owner
“Your work is exemplary. One of the cleanest and neatest soldering jobs I've ever seen.”
Ed M., Harrisville, WV · Strat
Upgrade your guitar with the Tone Man Guitar SG 3-pickup wiring harness. This prewired harness is built for 3-pickup SG guitars with 4 controls: 3 volume and 1 master tone. Each harness is carefully assembled and tested in my shop and includes a wiring diagram and installation instructions. I want you to be 100% satisfied!
- Modified 3-pickup switching for more useful pickup combinations
- Bourns 500K short shaft pots
- Paper-in-oil .033uF tone cap
- Ships to your USA front door for FREE
Special Pickup Selection Wiring
The standard wiring for a 3-humbucker guitar gives you Bridge / Bridge & Middle / Neck on the 3-way toggle. This harness follows a modified schematic instead. The neck and bridge pickups work with the toggle just like a standard 2-pickup SG. The middle pickup is blended in with its own volume control.
What's Included

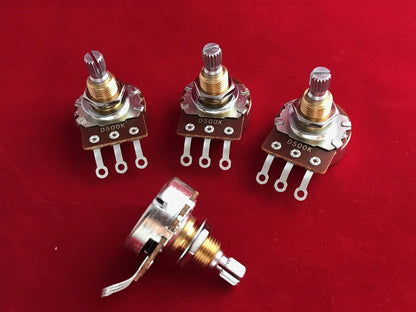

- Bourns 500K potentiometers, short split shaft, audio taper: 3 volume, 1 master tone
- Paper-in-oil (PIO) .033uF vintage tone capacitor
- Switchcraft or Centralab 3-way right-angle toggle switch, prewired, black tip (cream on request if in stock; add a note to your order)
- Switchcraft 1/4" jack
- Gavitt cloth wire throughout

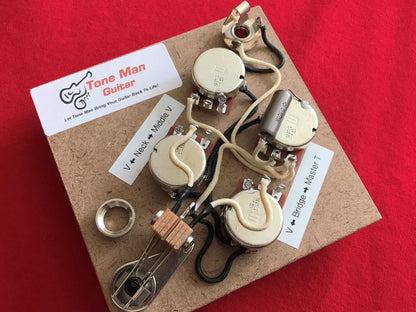

- Fully prewired harness on an assembly board drilled to spec (the board is for building and shipping only; it isn't installed)
- Wiring diagram and installation instructions
For additional product details, see our Product Information page.
Compatibility
- 3-pickup SG guitars with 4 controls (3 volume, 1 master tone)
- Imported guitars (Japan, China, Epiphone and others) may need the pot holes reamed to 3/8" for the Bourns bushings.
- Need new knobs? See our knobs.
- Not sure what you need? Reach out through the Contact Us page.
Shipping & Build Time
Every harness is custom built to order and tested before it ships. Lead time to build before shipping is 4 to 6 business days. In stock means we have the parts to build your harness.
Cheers,
Gary Standerfer / Tone Man Guitar
Workbench Note:
On a stock 3-pickup SG, the toggle's middle position gives you bridge and middle, not bridge and neck. This SG 3-pickup wiring harness changes that: the toggle works like a standard 2-pickup SG, and the middle pickup gets its own volume so you can blend it in. Playing a 2-pickup SG? See our SG wiring harness.
