Prewired Stratocaster Harnesses

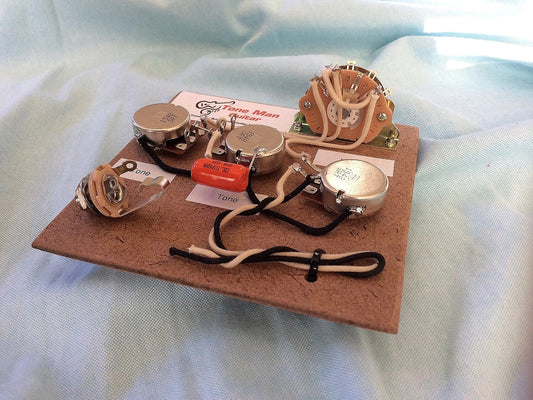

Drop-in prewired harnesses for Fender and Squier Stratocasters. Featuring 250K Bourns Pro Audio pots, prewired Oak Grigsby 5-way blade switch, Switchcraft jack, and vintage Gavitt cloth wire with .047uF PIO or Orange Drop tone capacitors.

Custom & Vintage-Spec Strat Wiring Upgrades

Factory Stratocaster wiring often suffers from dull tone controls and noisy switches. Our prewired Strat harnesses replace the entire electronic path with hand-soldered, bench-tested components mounted on a template board sized for standard 3-single-coil (SSS) pickguards and HSS routing.

Custom Stratocaster Wiring Options

  • Standard SSS Layout: Master volume, neck tone, middle/bridge tone with .047uF capacitor roll-off.

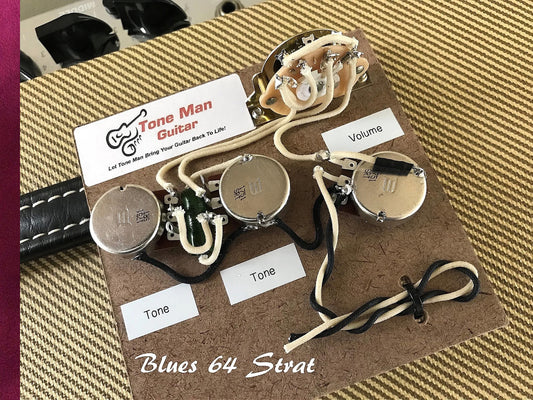

  • Blues '64 Series: Features vintage-correct .1uF or .033uF paper-in-oil capacitors for smooth blues roll-off.

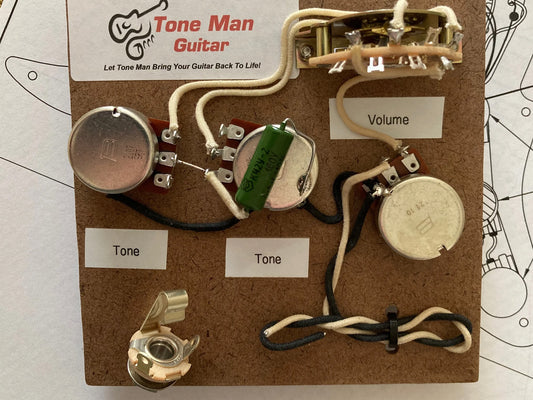

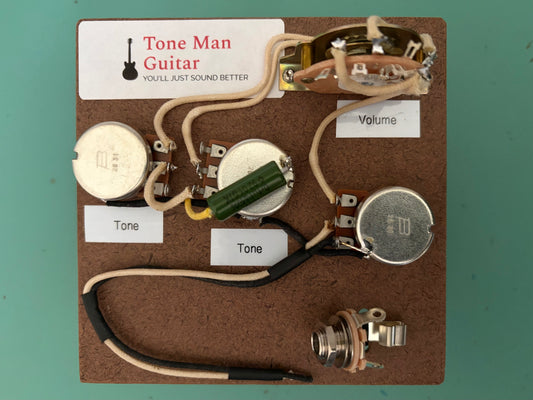

  • Eric Johnson (EJ) Spec: Dedicated bridge pickup tone control to tame top-end harshness without deadening output.

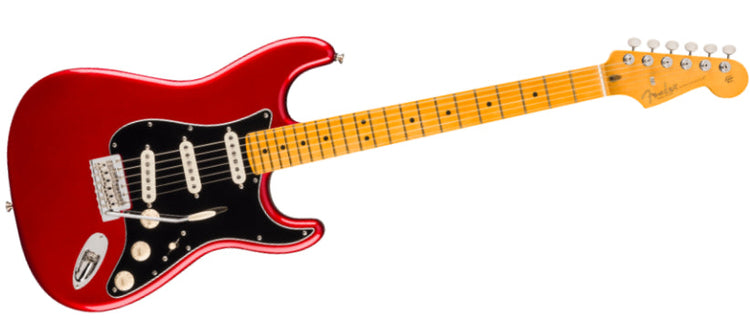

Stratocaster prewired harness with 5-way Oak Grigsby switch and Orange Drop capacitor

Tone Man Guitar Products in this Collection

Easy Pickguard Drop-In Installation

Each harness comes completely pre-assembled with low-friction 250K Bourns pots and an Oak Grigsby 5-way switch. Simply solder your three pickup hot leads and ground connections to the designated points using our clear color-coded wiring diagram.
