Upgrade your guitar with the Tone Man Guitar Premium Explorer wiring harness. This prewired harness is built for Gibson and Epiphone Explorer guitars with 3 controls in line (2 volume, 1 tone), the jack in the control cavity and a right-angle 3-way switch under the pickguard in the upper horn. Each harness is carefully assembled and tested in my shop and includes a wiring diagram and step-by-step installation instructions. I want you to be 100% satisfied!
- Premium quality components
- 50s wiring configuration for the best tone
- Clear wiring diagram and installation instructions included
- Ships to your USA front door for FREE
What's Included

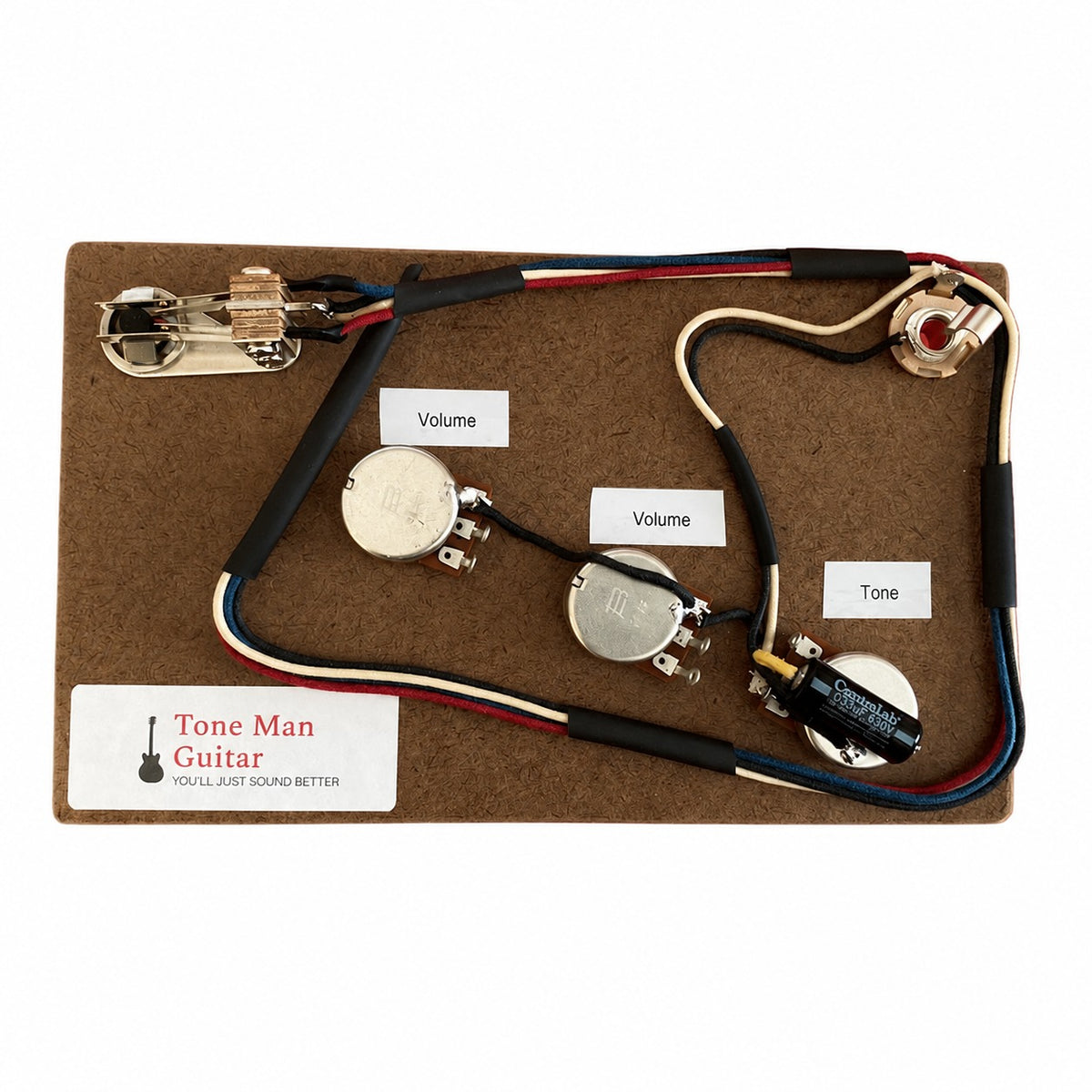

- Bourns Pro Audio 500K potentiometers, short split shaft, audio taper, 18-tooth coarse spline
- Centralab paper-in-oil (PIO) .033uF tone capacitor
- Switchcraft or Centralab 3-way right-angle toggle switch, prewired, black tip
- Switchcraft 1/4" chrome output jack
- Vintage-style Gavitt 22 AWG cloth push-back wire throughout

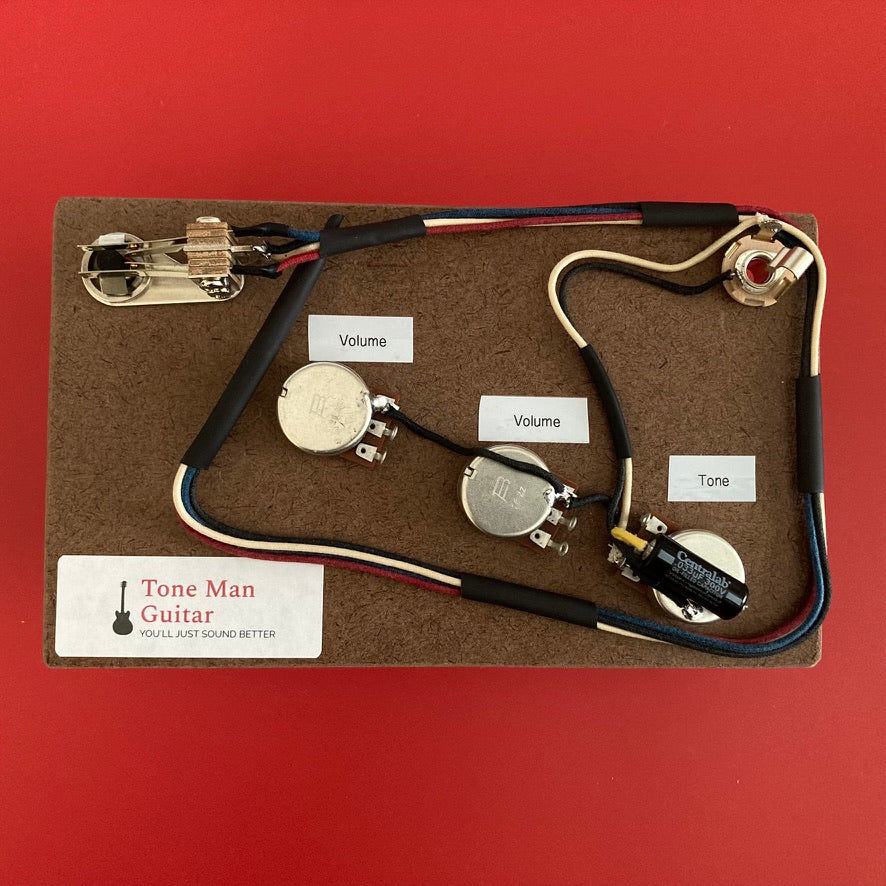

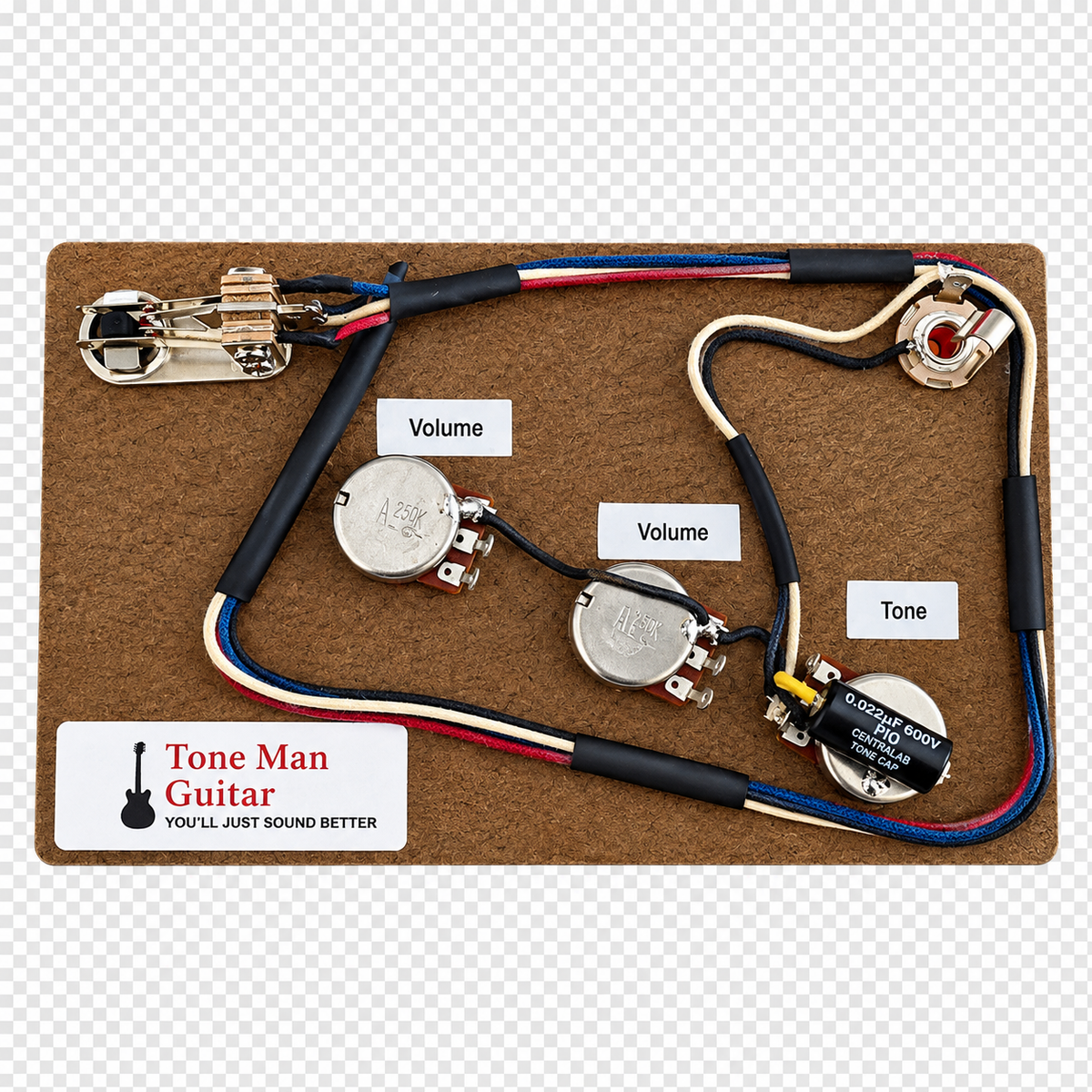

- Fully prewired harness on an assembly board drilled to spec (the board is for building and shipping only; it isn't installed)
- 50s wiring diagram and step-by-step installation instructions
For additional product details, see our Product Information page.
Compatibility

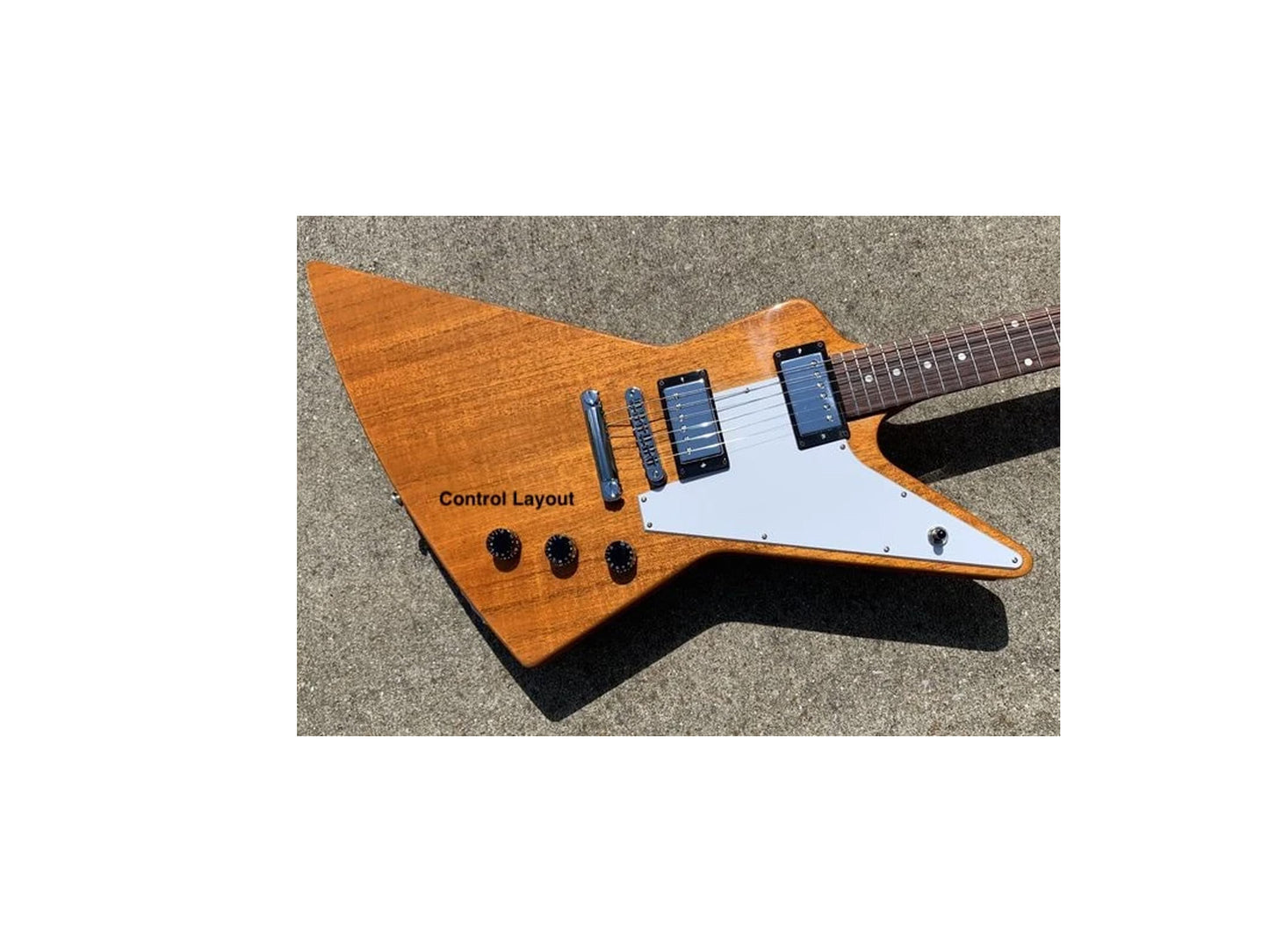

- Gibson and Epiphone Explorer with 3 controls in line (2 volume, 1 tone) and the jack in the control cavity. See the control layout photo and compare it to your guitar.
- Uses a right-angle 3-way toggle that lies in the cavity under the pickguard. If your guitar uses a short straight switch, email us before ordering.
- Imported guitars (Japan, China and others) or guitars with mini pots may need the pot holes reamed to 3/8" for the Bourns full-size bushings.
- Need new knobs? See our knobs.
- Not sure it fits? Reach out through the Contact Us page.
Fitment Measurements
Compare these to your guitar:
- Volume to volume: 2"
- Second volume to tone: 2"
- Tone to jack: 3"
- Prewired switch wire run: 18"
Shipping & Build Time
Every harness is custom built to order and tested before it ships. Lead time to build before shipping is 4 to 6 business days. In stock means we have the parts to build your harness.
Cheers,
Gary Standerfer / Tone Man Guitar
Workbench Note:
The Explorer puts its three knobs in a straight line along the lower body and its switch far up in the treble horn, a long way from the control cavity. That's why this Explorer wiring harness comes with an 18" prewired switch run and pots spaced to the Explorer layout, rather than a Les Paul harness adapted to fit. Playing a 4-knob Les Paul instead? See our Les Paul wiring harness.
