DIY Les Paul Wiring Kits

Complete DIY electronics upgrade kits for Gibson and Epiphone Les Paul models. Includes four 500K Bourns Pro Audio pots, Centralab Paper-in-Oil or Orange Drop caps, Switchcraft toggle switch, jack, wire, and 50s schematic.

Build Your Own Vintage 50s Les Paul Harness

Wire your Les Paul control cavity with 50s-style schematics using top-tier components. Our DIY kits give you total control over component lead routing while providing the finest audio-grade parts available.

Choosing Your Shaft Length & Series

  • Long Shaft Kits: For 1977-present Gibson Les Paul Standard, Traditional, Custom, Classic, and Studio models.
  • Short Shaft Kits: For pre-1977 Gibsons, historic reissues, Les Paul Juniors, Specials, and ALL Epiphone Les Pauls.
  • Premium 59 Series: Includes Centralab Paper-in-Oil capacitors (.033uF bridge / .015uF neck).
  • Classic Series: Includes Sprague/CDE Orange Drop capacitors (.022uF).

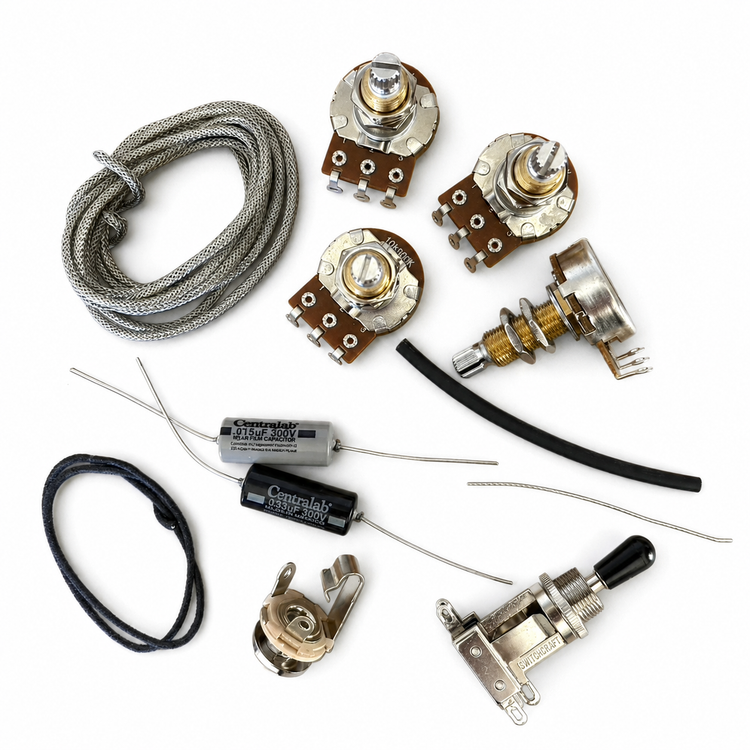

DIY Les Paul wiring kit with Bourns 500K pots, Switchcraft Centralab toggle, and wiring schematic

Tone Man Guitar Products in this Collection

Everything Included in One Package

Each kit comes with 4 Bourns 500K pots, 2 tone caps, 1 Switchcraft right-angle toggle switch with tip, 1 Switchcraft jack, Gavitt braided wire, Gavitt cloth wire, and step-by-step wiring instructions.
