Les Paul Wiring Kit - DIY Premium Kit - Short Shaft Pots PIO Tone Caps

Upgrade your guitar with the Tone Man Guitar Premium Les Paul wiring kit.  This kit comes with high-quality components designed to deliver smoother control, improved reliability, and true vintage tone.  Each kit comes with all parts and includes wiring diagram for easy installation.  I want you to be 100% satisfied!

• Premium quality components

• All parts included
• Clear wiring diagram included for easy installation
• Ships to your USA front door For FREE

Product Description

This DIY Premium 59 wiring kit comes with all premium components selected for reliability and tonal performance.  The vintage 50s wiring diagram helps your installation go smoothly.

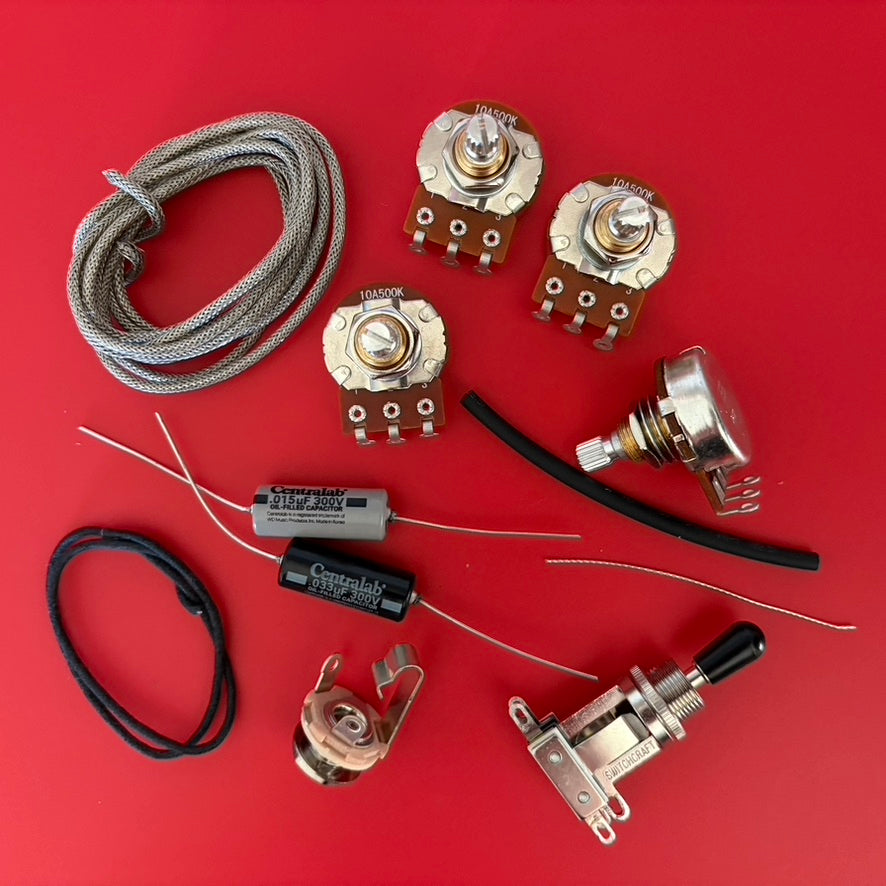

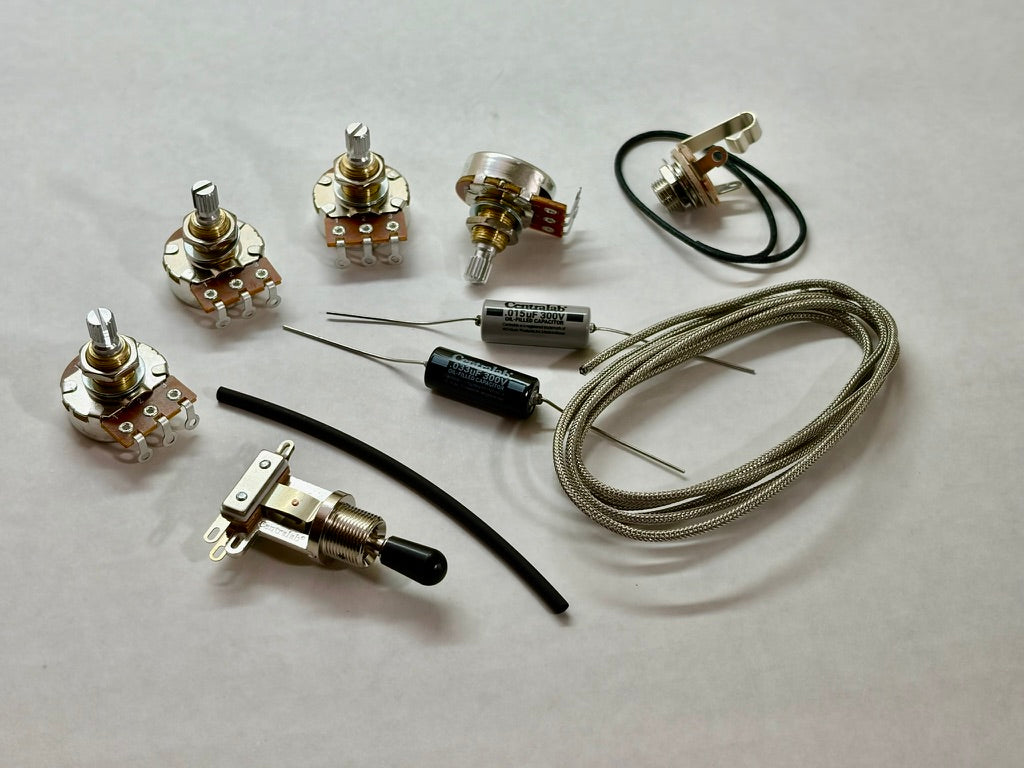

What's Included

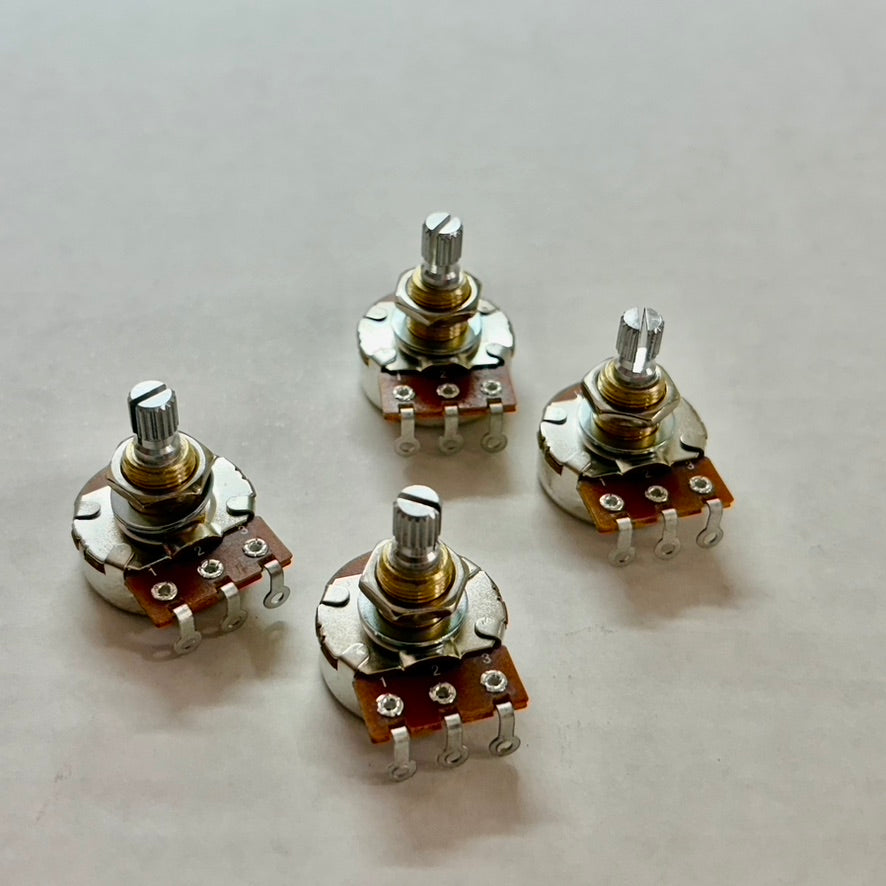

• Bourns Pro Audio 500K potentiometers coarse spline (short shaft)
• Paper in Oil tone capacitors Centralab .033uf bridge .015uf neck
• Switchcraft or Centralab 3-way toggle switch black tip
• Switchcraft 1/4-inch jack
• Vintage style cloth Gavitt push-back wire for pot connection grounding
• 4.5 ft braided Gavitt shielded 50's Vintage 22awg wire (for wiring your 3 way switch & output jack)
• 3" shrink tubing (to insulate jack lead in cavity

• 50s Wiring diagram

For additional various product details see our Product Information page.

Tone Benefits

• Improved clarity and signal response and Sustain
• Smooth volume and tone controls
• Vintage style tonal response
• Reliable professional grade components

Compatibility (Gibson manufactured prior to 1977 short shaft pots - Some historic RI models built in later years also use short shaft.  Best to measure threaded part of shaft)

• Gibson Les Paul Standard, Traditional, Classic, Custom, Some historic RI
• ALL YEARS Epiphone Les Paul models (requires 3/8-inch pot hole size)
• Knob fitting requires 18 teeth coarse spline knobs (we sell new knobs)
• If you're not sure what you need reach back to us thru the "Contact Us" link


If you have an imported guitar (e.g. Japan, China, etc.)  you may need to modify the potentiometer holes to 3/8 inch to accommodate the Brouns bushings.

Cheers,

Gary Standerfer / Tone Man Guitar
