Upgrade your guitar with the Tone Man Guitar Premium Epiphone DOT Studio wiring harness. This prewired harness uses high-quality components for smoother control, improved reliability, and true vintage tone. Each harness is carefully assembled and tested in my shop with pride, and includes a wiring diagram and installation instructions for easy installation. I want you to be 100% satisfied!
- Premium quality components
- 50s wiring configuration for the best tone
- Clear wiring diagram included for easy installation
- Ships to your USA front door for FREE
Product Description
This prewired Premium Epiphone DOT Studio wiring harness is built using premium components selected for reliability and tonal performance. The vintage 50s wiring helps maintain clarity when you roll down the volume while delivering smooth, responsive tone control.
What's Included
- Bourns Pro Audio 500K potentiometers, coarse spline (short shaft)
- Centralab paper-in-oil .033uF tone capacitor
- Switchcraft or Centralab 3-way toggle switch, black tip (chrome or gold)
- Switchcraft 1/4" jack
- Vintage-style Gavitt cloth push-back wire

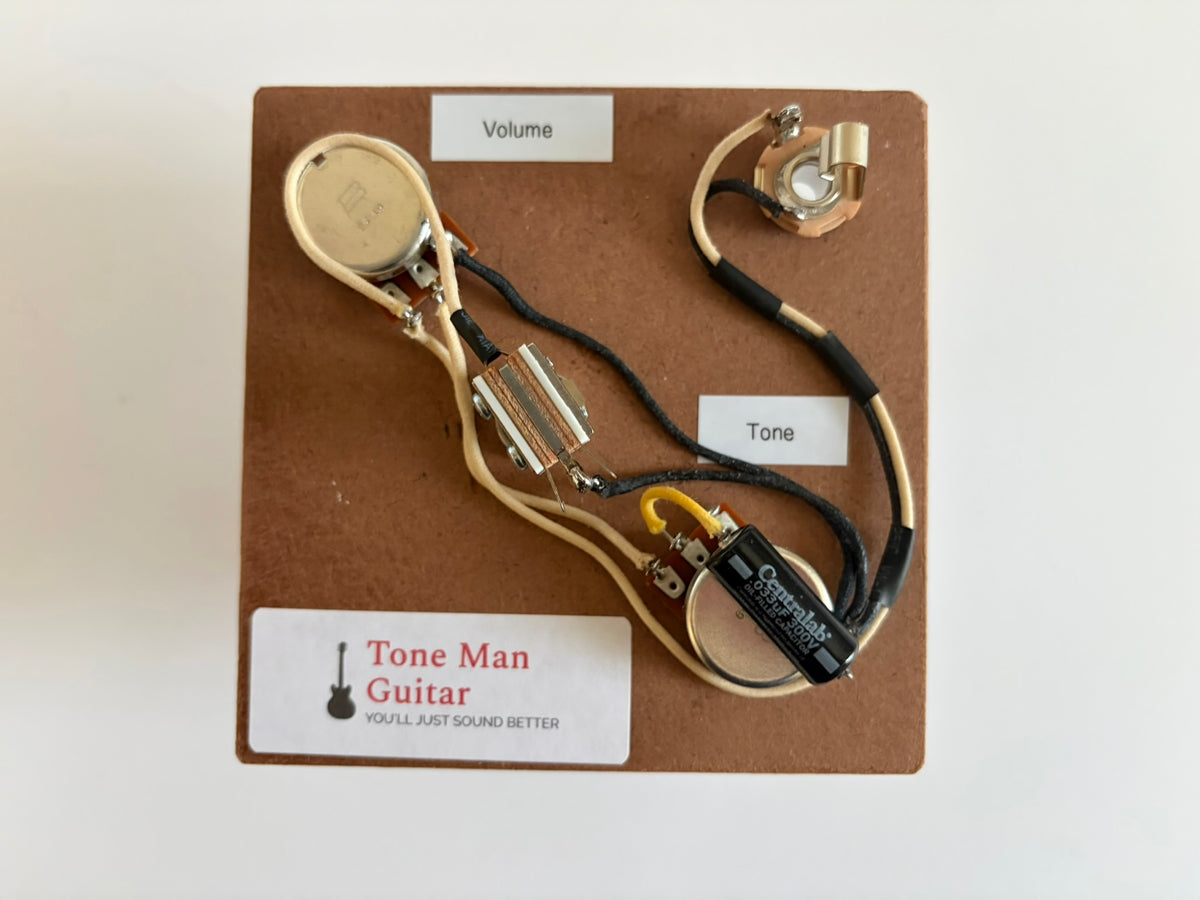

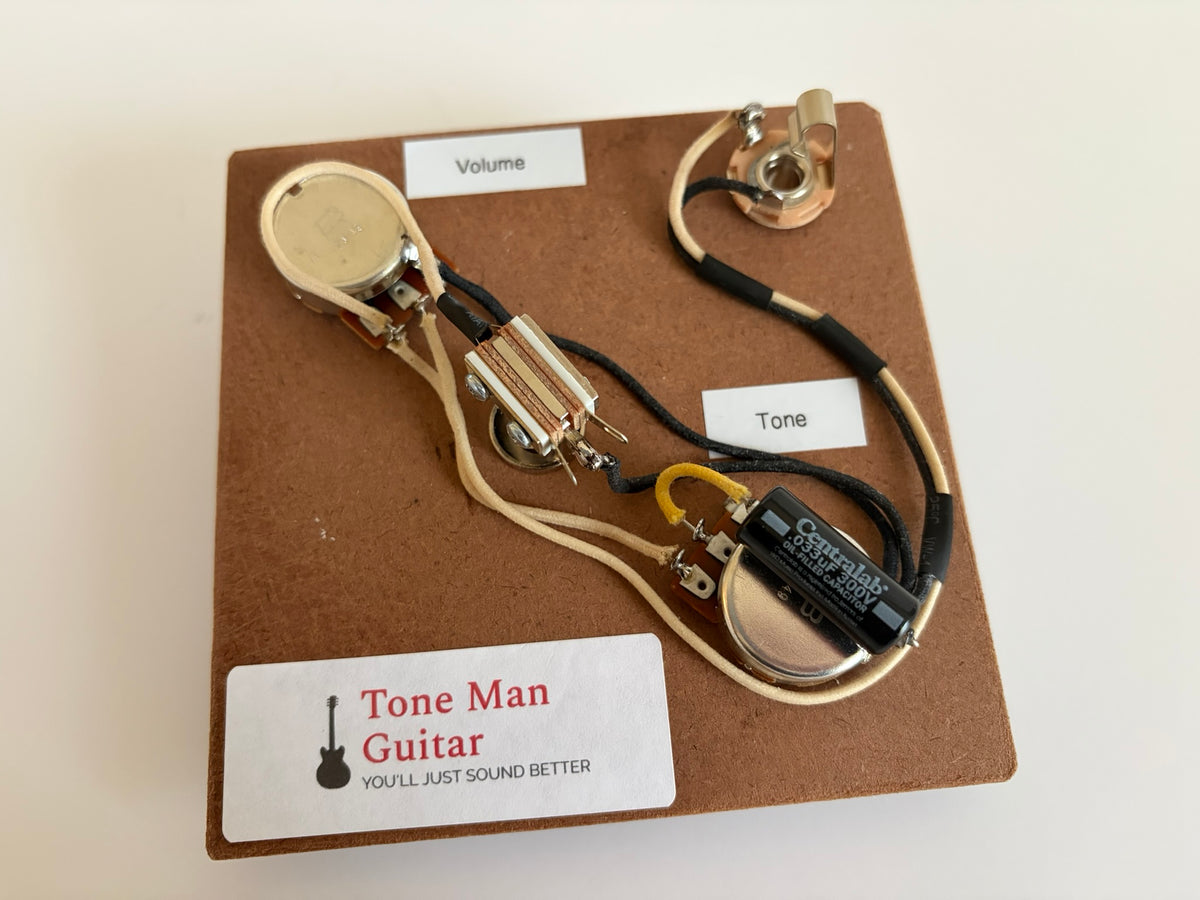

- Fully prewired harness on an assembly board drilled to spec (the board is for building and shipping only; it isn't installed)
- Wiring diagram and installation instructions
For additional product details, see our Product Information page.
Tone Benefits
- Improved clarity and signal response
- Smooth volume and tone controls
- Vintage-style tonal response
- Reliable professional-grade components
Compatibility

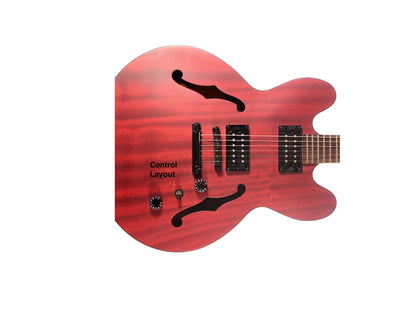

- Epiphone DOT Studio hollow body (1 volume, 1 tone, 3-way switch)
- Feeds through the f-hole: requires at least 1-1/16" at the widest point of the f-hole opening
- Pot holes must be 3/8"
- Knobs require 18-tooth coarse spline (we sell new knobs)
- Component spacing: volume to tone 4.2", jack wire run 4"
- Not sure what you need? Reach out through the Contact Us page.
Shipping & Build Time
Every harness is custom built to order and tested before it ships. Build lead time before shipping is 4 to 6 business days. In stock means we have the parts to build your harness.
Cheers,
Gary Standerfer / Tone Man Guitar
Workbench Note
The DOT Studio is Epiphone's stripped-down semi-hollow: two humbuckers, one master volume and one master tone. With only two pots doing all the work, their quality matters more than on a four-knob guitar. This Epiphone DOT Studio wiring harness swaps the stock electronics for Bourns pots and a paper-in-oil cap, all prewired to feed through the f-hole. Playing a four-knob DOT or ES-335? See our ES-335 wiring harness.
