Upgrade your guitar with the Tone Man Guitar Premium '59 Series Ibanez Artcore wiring harness. This prewired harness uses high-quality components for smoother control, improved reliability, and true vintage tone. Each harness is carefully assembled and tested in my shop with pride and includes a wiring diagram and installation instructions for easy installation. I want you to be 100% satisfied!
- Premium quality components
- 50s wiring configuration for the best tone
- Clear wiring diagram included for easy installation
- Ships to your USA front door for FREE
Product Description
This prewired Premium Ibanez Artcore wiring harness is built using premium components selected for reliability and tonal performance. The vintage 50s wiring helps maintain clarity when rolling down the volume while delivering smooth and responsive tone control.
What's Included
- Bourns Pro Audio 500K potentiometers, coarse spline (short shaft)
- Centralab paper-in-oil tone capacitors: .033uF bridge, .015uF neck
- Switchcraft or Centralab 3-way toggle switch, prewired, black tip (chrome or gold)
- Switchcraft 1/4" jack
- Vintage-style braided Gavitt 22 AWG push-back wire
- Fully prewired harness on an assembly board drilled to spec (the board is for building and shipping only; it isn't installed)
- Wiring diagram and installation instructions
For additional product details, see our Product Information page.
Tone Benefits
- Improved clarity and signal response
- Smooth volume and tone controls
- Vintage-style tonal response
- Reliable professional-grade components
Compatibility
- Ibanez Artcore AG, AF, AS and AM series (2 volume, 2 tone, 3-way toggle)
- Not sure your model fits? Email Gary before you order.
- Pot holes must be 3/8"
- Knobs require 18-tooth coarse spline (we sell new knobs)
Fitment Measurements
Compare these to your guitar:

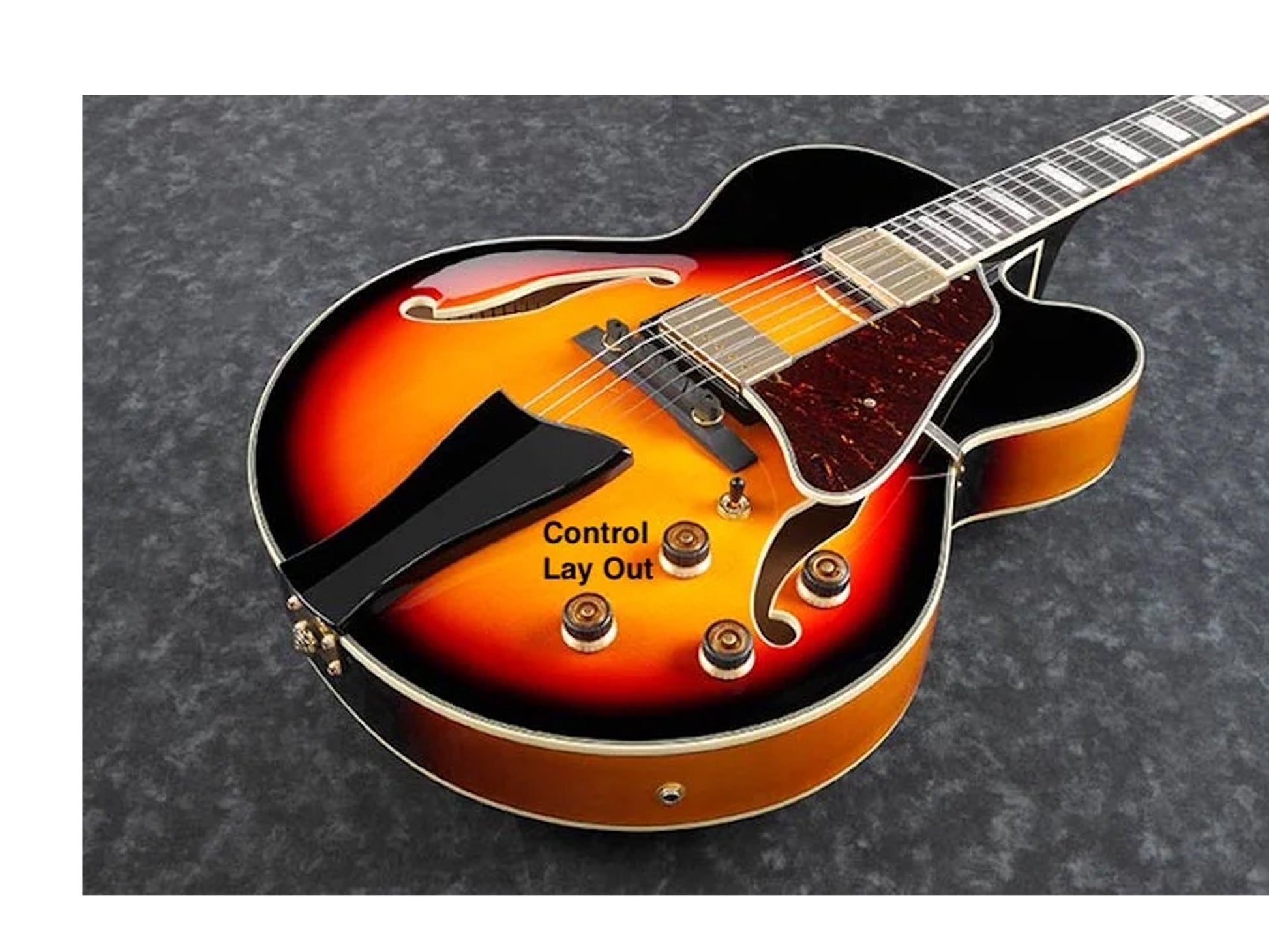

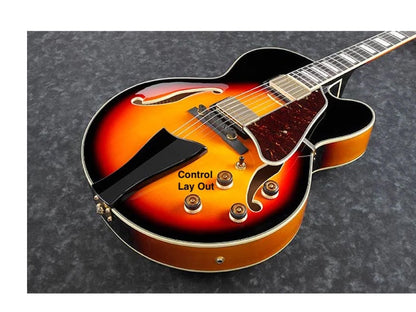

- Volume to volume 2.5", tone to tone 2.5", volume to tone 2.75"
- Switch to neck volume 2"
- Jack to switch wire run 6", plus 3" extra for guitars with the jack in the end of the body
- Jack wire long enough to reach the edge of the body: 9"
- F-hole minimum width at the widest point for feeding the harness through: 1-1/8"
Shipping & Build Time
Every harness is custom built to order and tested before it ships. Lead time to build before shipping is 4 to 6 business days. In stock means we have the parts to build your harness.
Cheers,
Gary Standerfer / Tone Man Guitar
Workbench Note
Artcore hollow bodies have no rear control cavity, so every pot, the switch and the jack go in through the f-hole. That's why this Ibanez Artcore wiring harness arrives as one complete, pre-spaced assembly with extra wire length, rather than loose parts you'd have to solder inside the body. Check the f-hole width and spacing above before ordering. Playing a Gibson or Epiphone archtop instead? See our ES-175 wiring harness.
