Choosing a Les Paul Wiring Harness Upgrade: Long vs. Short Shaft Pots
If you want to breathe new life into your single-cut guitar, committing to a premium Les Paul wiring harness upgrade is the most effective transformation you can perform. Overhauling your internal electronics cleans up your signal chain, increases your pickup's responsiveness, and lets your volume controls roll down smoothly without muddying your tone.
However, the Les Paul family features various hidden structural changes depending on the year of manufacture and origin. Before hunting down the best Les Paul wiring harness, you need to know how to navigate internal pot lengths, metric differences, and classic layout aesthetics.
The Golden Measurement: Long Shaft vs. Short Shaft
The most frequent technical issue guitarists run into when sourcing parts is choosing the wrong threaded bushing length. If you get this wrong, your new components physically won't fit through the wood floor of the guitar.
Long Shaft (3/4 Inch Bushing Required)
Standard Gibson USA production models built from 1977 to the present day—including the Les Paul Standard, Studio, Classic, and Traditional—feature a thick, carved maple cap glued over a solid mahogany body. Because the floor of the control cavity is incredibly thick, you must use long-shaft pots so that enough thread clears the top of the wood to accept the mounting dress nut.
Short Shaft (3/8 Inch Bushing Required)
Gibson Custom Shop Historic Reissues (such as R7, R8, R9, and R0 models) feature an authentic, deep vintage-correct back cavity route. Because the wood floor is routed thin, these premium guitars require short-shaft components. Flat-top variants like the Les Paul Junior and Special also use short shafts.
Navigating Epiphone Les Paul Pots
If you are modifying an import clone, the rules change entirely. Regardless of whether it features a carved top, all Epiphones require short-shaft pots because their internal control cavities are carved deep into the body.
However, swapping factory Epiphone Les Paul pots for premium USA-spec electronics reveals a common structural hurdle: the metric hole pattern. Factory Epiphone tops are drilled with narrow metric holes. Upgrading to pro-grade imperial components means you must cleanly widen the top wood holes to 3/8 inch using a tapered hand reamer to protect the delicate finish.
The Power of '50s Wiring
When picking out your configuration, we highly recommend selecting a Les Paul prewired kit using historic 50s wiring and routing. In a standard modern layout, rolling back your volume knob bleeds off crucial high frequencies, forcing you to constantly adjust your amplifier.
The vintage 50s-style hooks the tone-control capacitor directly to the output side of the volume pot. This subtle structural shift preserves your top-end treble definition, ensuring your guitar stays bright, snappy, and clear even when your volume control is rolled down to 3 or 4.
H2 Upgrade Your Les Paul Today

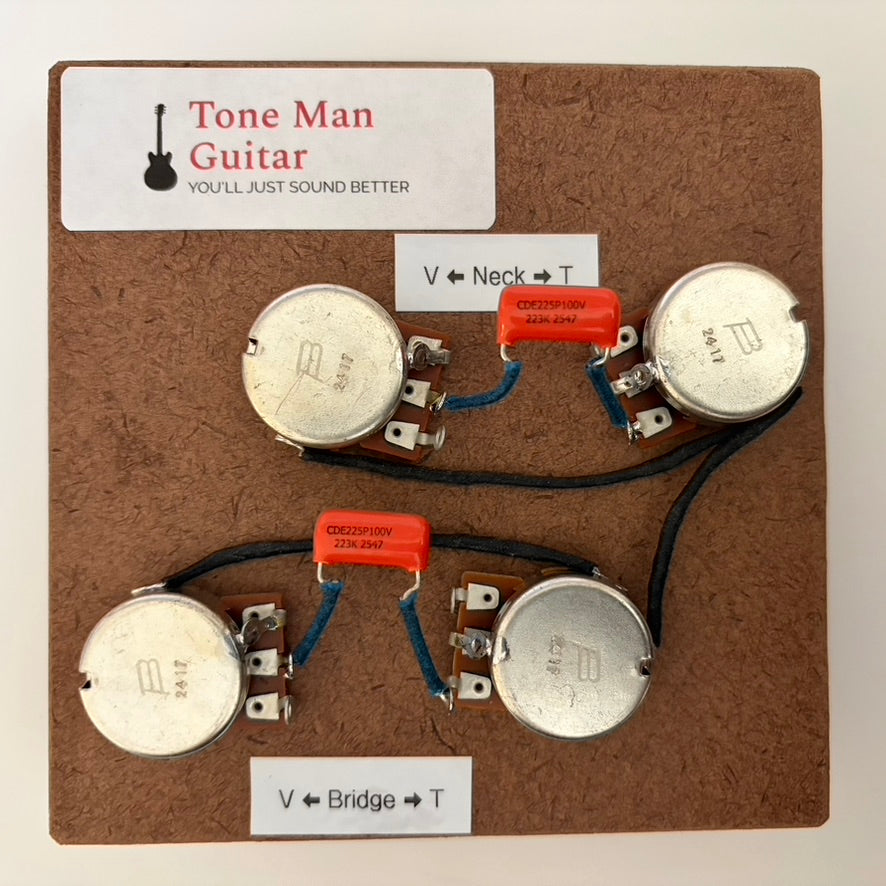

Bypass the frustration of guessing wire runs and melting delicate components on your workbench. Explore our custom line of Prewired Les Paul Premium Upgrades to get a bench-tested, drop-in harness built exactly for your guitar's shaft length requirements.
For a full structural view of how components, fitment tolerances, and shaft specs impact all guitar types, make sure to read our comprehensive Ultimate Guide to Guitar Wiring Upgrades.
