How to Upgrade the ES-335 Wiring Harness and Install Hollowbody Wiring Without Losing Your Mind
Overhauling the internal electronics of a semi-hollow or full hollowbody guitar is universally considered the most daunting project a guitar modifier can tackle. Unlike solid-body guitars that feature convenient plastic access plates on the back, an ES-335, ES-339, ES-175, Joe Pass or Epiphone Casino holds its internal components inside a sealed wooden chamber.
If you attempt to source a raw, unassembled hollowbody guitar wiring kit, you have to handle intricate soldering maneuvers while trying to measure component spacing blindly from the outside. One loose wire or a cold solder joint means extracting the entire rig and starting over.
To complete this upgrade successfully, you need to understand how circuit architecture impacts your hollowbody tone and how utilizing a prebuilt assembly can save you hours of workbench frustration.
The F-Hole Challenge: Why Prebuilt Looms are Mandatory
Because there is no rear door, every potentiometer, selector switch, and output jack must be carefully dragged through the narrow f-holes or the bridge pickup cavity.

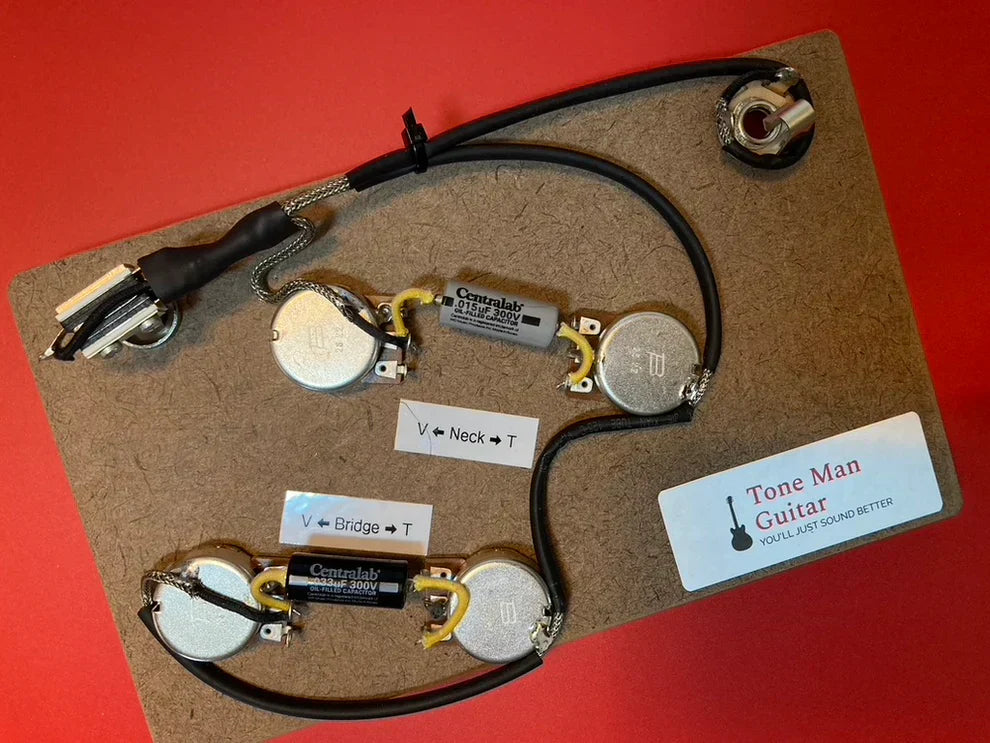

Using a professional ES-335 prebuilt wiring harness completely removes the geometric guesswork. These premium rigs are hand-assembled and soldered on a precise physical template mapping out the exact distances between the control holes. The entire wiring loom is bound and insulated structurally, ensuring that as you pull the components into place using fishing line or flexible surgical tubing, no solder joints face structural stress or snap mid-pull.
Tailoring Your Tone: Humbuckers vs. P-90s
When upgrading a hollow or semi-hollow chassis, your component values must match your pickup configuration to maximize your instrument's dynamic depth:
The Humbucker Setup (ES-335 / ES-339)
Traditional humbuckers require a premium 500k ES-335 wiring harness. Because humbuckers lean heavily into warm, dark low-end frequencies, 500k pots prevent the top-end treble from muddying up, keeping your jazz lines articulate and your overdriven blues riffs crisp.
The P-90 Setup (Epiphone Casino / Gibson ES-330)
P-90 single-coils are high-output pickups that still have the characteristics of a humbucker with a unique, raw midrange bark. Sourcing an upgrade configured with vintage '50s wiring keeps your high-end definition perfectly intact when you roll back the volume knob, allowing you to control amplifier breakup straight from the guitar.
Avoid Finish Damage During Installation
Because USA-spec upgrade pots feature larger imperial diameters than import metric components, Epiphone owners must slightly enlarge the top wood holes to 3/8 inch. Never use a standard electric drill on a finished hollowbody top, as the spinning drill bit will instantly grab the thin laminate plies and shatter the surrounding poly or nitrocellulose lacquer finish. Instead, use a tapered hand reamer to slowly, cleanly widen the holes from the front of the instrument.
Get the Ultimate Hollowbody Upgrade
Don't risk hours of frustration pulling loose components through your guitar's body. Discover our bench-tested, pre-spaced ES-335 & Hollowbody Prebuilt Wiring Harness Collection to ensure a flawless, hum-free drop-in upgrade on your first attempt.
For a full structural view of how components, fitment tolerances, and shaft specs impact all guitar types, make sure to read our comprehensive Ultimate Guide to Guitar Wiring Upgrades.
