The Eric Johnson Strat Wiring Mod: Sizing a Prewired Strat Harness
The Fender Stratocaster is celebrated for its incredible versatility, but standard factory models carry a legendary tonal flaw that has frustrated guitarists for decades: the bridge pickup is completely disconnected from the tone controls. While the neck and middle pickups have dedicated tone pots, switching to the bridge pickup layout gives you a raw, unattenuated signal that can sound incredibly harsh and "ice-picky" through a bright tube amplifier.
When legendary tone purist Eric Johnson set out to design his signature instrument, he engineered a simple, brilliant modification to fix this imbalance. Today, utilizing an authentic Eric Johnson Strat wiring scheme inside a premium prewired Strat harness is one of the single most popular modifications you can make to your instrument.
How the Eric Johnson Modification Works
If you look at a standard Eric Johnson Strat wiring diagram, you will spot a subtle but powerful relocation of a single jumper wire on your 5-way blade switch.
Instead of leaving the bridge position open to bleed high frequencies unchecked, the EJ configuration reassigns the secondary tone pot away from the middle pickup and connects it directly to the bridge pickup layout. This simple circuit adjustment gives you complete control over your bridge position's top-end response, allowing you to roll back harsh frequencies to achieve a warm, violin-like lead tone.
The middle pickup runs wide open without a tone control connected, adding extra chime, bite, and sparkle to your position 2 and 4 "quack" settings.
The Value of a Fender Prewired Upgrade Wiring Kit
Sourcing loose individual components and assembling a custom single-coil configuration yourself means navigating intricate ground wires directly across the back of three separate pots. One cold solder joint or a melted plastic track can instantly introduce heavy ground hum.

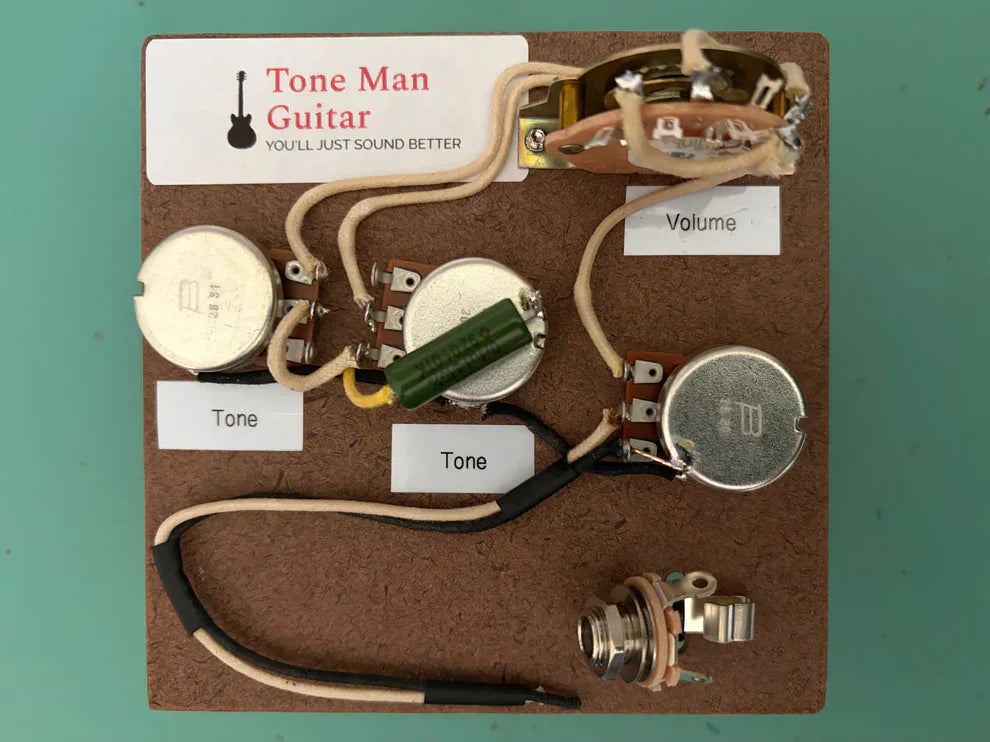

Investing in a premium fender prewired upgrade wiring kit ensures professional, noise-free performance right out of the box. A pre-assembled harness features low-tolerance, hand-matched 250k Bourns Pro Audio pots, a genuine Switchcraft USA jack, a heavy-duty Oak Grigsby 5-way blade switch, and premium vintage cloth pushback wire.
The Squier Pickguard Trap
If you are dropping a premium prewired Strat harness into a Squier or an import Strat copy, be prepared for a minor physical adjustment. Import pickguards are stamped with narrow metric holes to accommodate small-diameter foreign pots.
Because pro-grade USA upgrade kits use heavy-duty, full-size 3/8-inch brass bushings, you will need to cleanly widen your pickguard holes using a hand reamer before mounting the new assembly.
Experience the Eric Johnson Mod
Ready to eliminate harsh bridge treble and unlock the true tonal potential of your Stratocaster? Explore our bench-tested Stratocaster Eric Johnson Prewired Upgrade Harness to drop a professional, historically correct circuit layout straight into your pickguard.
For a full structural view of how components, fitment tolerances, and shaft specs impact all guitar types, make sure to read our comprehensive Ultimate Guide to Guitar Wiring Upgrades.
