Upgrade your guitar with the Tone Man Guitar Premium Telecaster Deluxe wiring harness. This prewired harness uses high-quality components for smoother control, improved reliability, and true 50s vintage tone. Each harness is carefully assembled in my shop with pride and includes a wiring diagram and installation instructions for easy installation. I want you to be 100% satisfied!
- Vintage-inspired 50s Telecaster tone
- Bourns Pro Audio 500K potentiometers
- Paper-in-oil tone caps, Gavitt cloth push-back wire
- Wiring diagram and installation instructions included
- Ships to your USA front door for FREE
Product Description
The Premium Telecaster Deluxe wiring harness is designed for players seeking true 50s vintage tone and reliable components. The prewired assembly simplifies installation while delivering smooth volume and tone controls.
What's Included

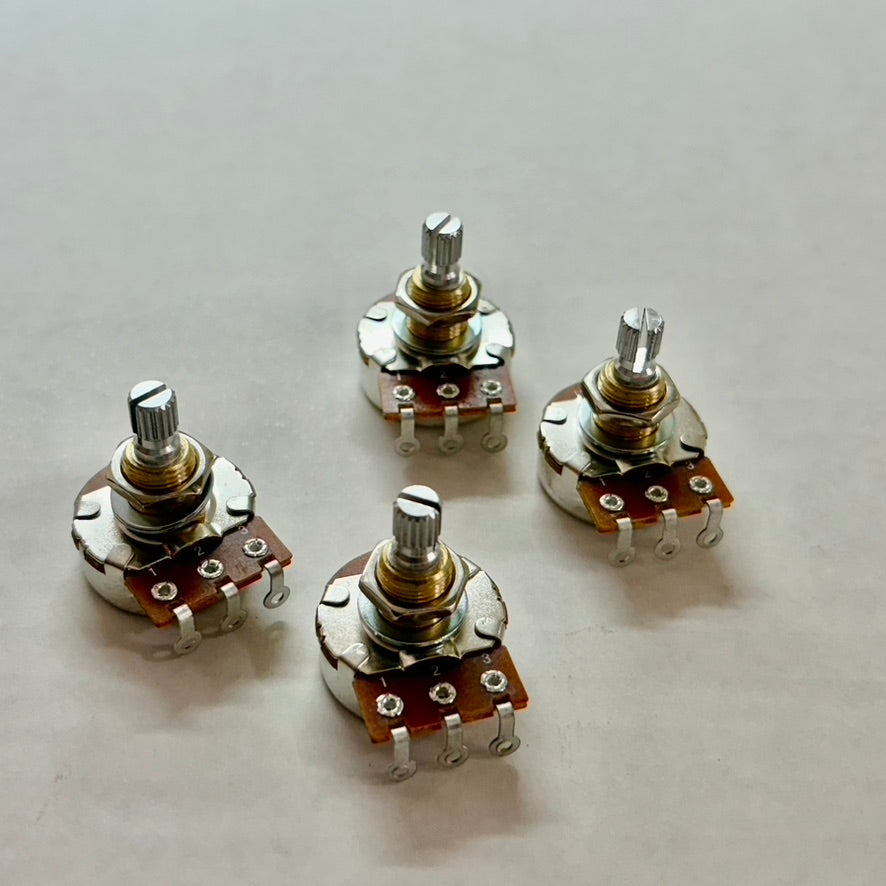

- Bourns Pro Audio 500K potentiometers, short split shaft, audio taper, 18-tooth coarse spline
- Centralab paper-in-oil tone capacitors: .033uF bridge, .015uF neck
- Switchcraft or Centralab 3-way right-angle toggle switch, black tip
- Switchcraft 1/4" jack
- Vintage-style Gavitt cloth push-back wire

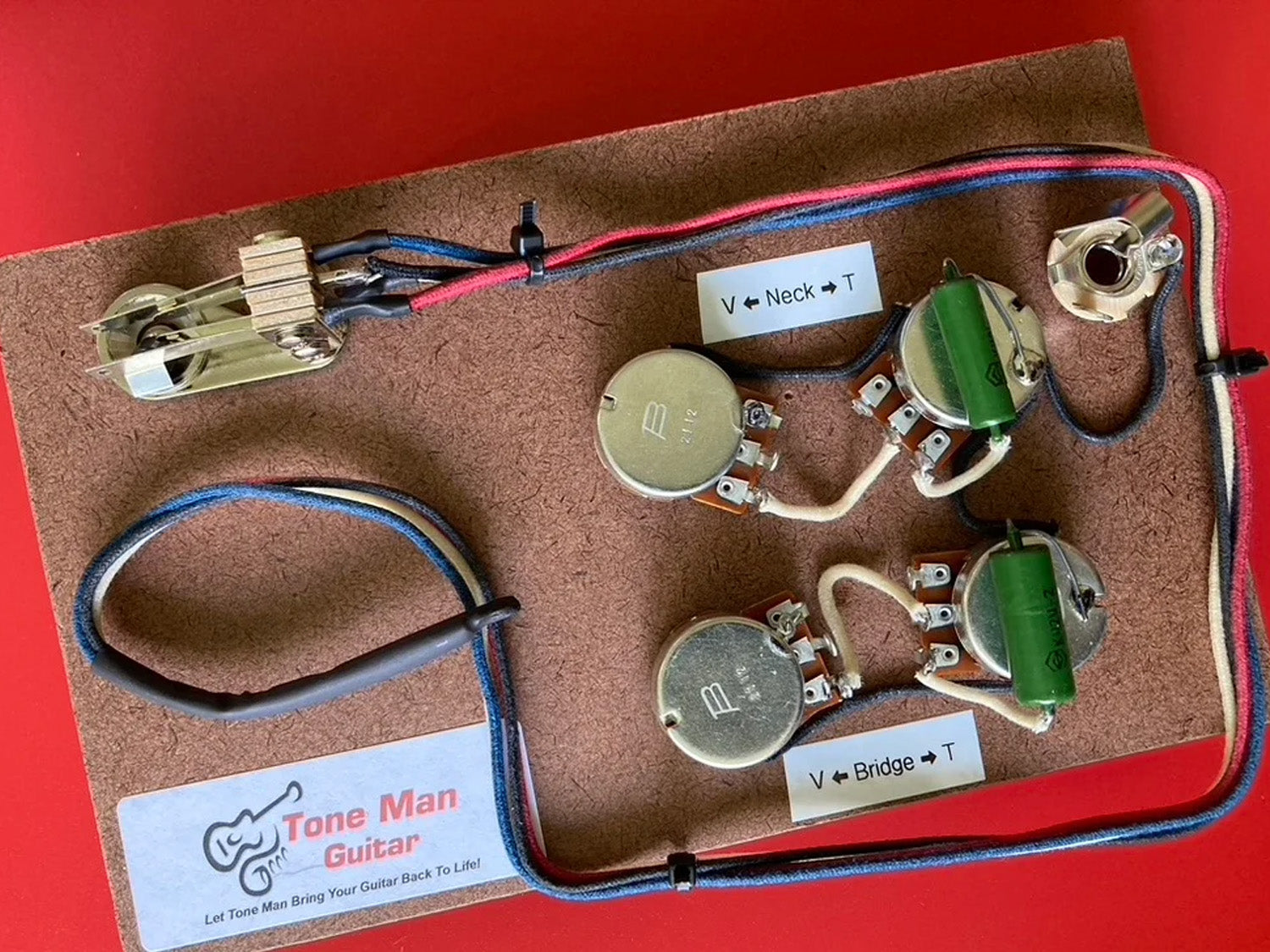

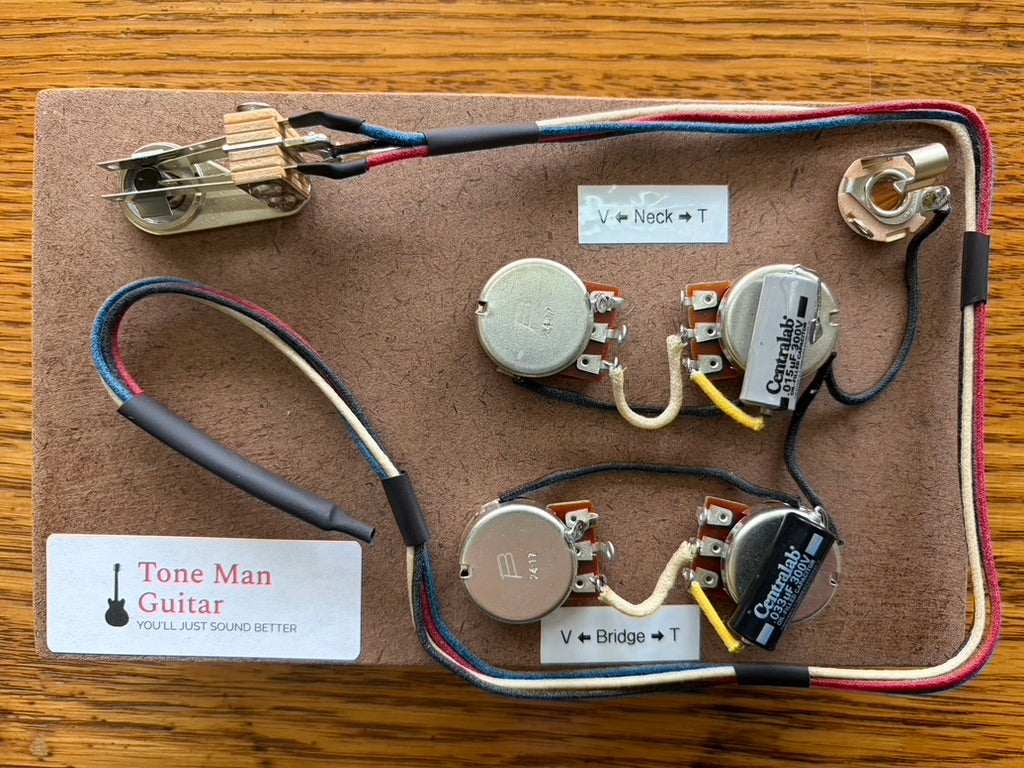

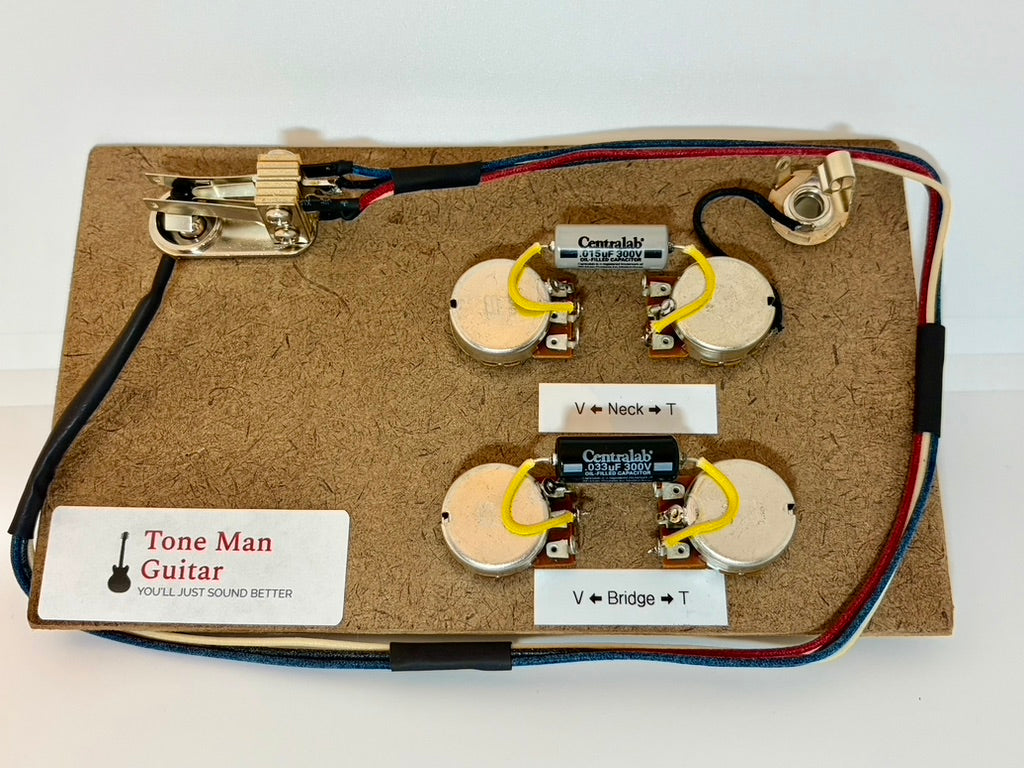

- Fully prewired harness on an assembly board drilled to spec (the board is for building and shipping only; it isn't installed)
- Wiring diagram and installation instructions
For additional product details, see our Product Information page.
Tone Benefits
- Clearer pickup response
- Smooth volume and tone adjustments
- Vintage-style 50s Tele sound
- Reliable premium-grade components
Compatibility

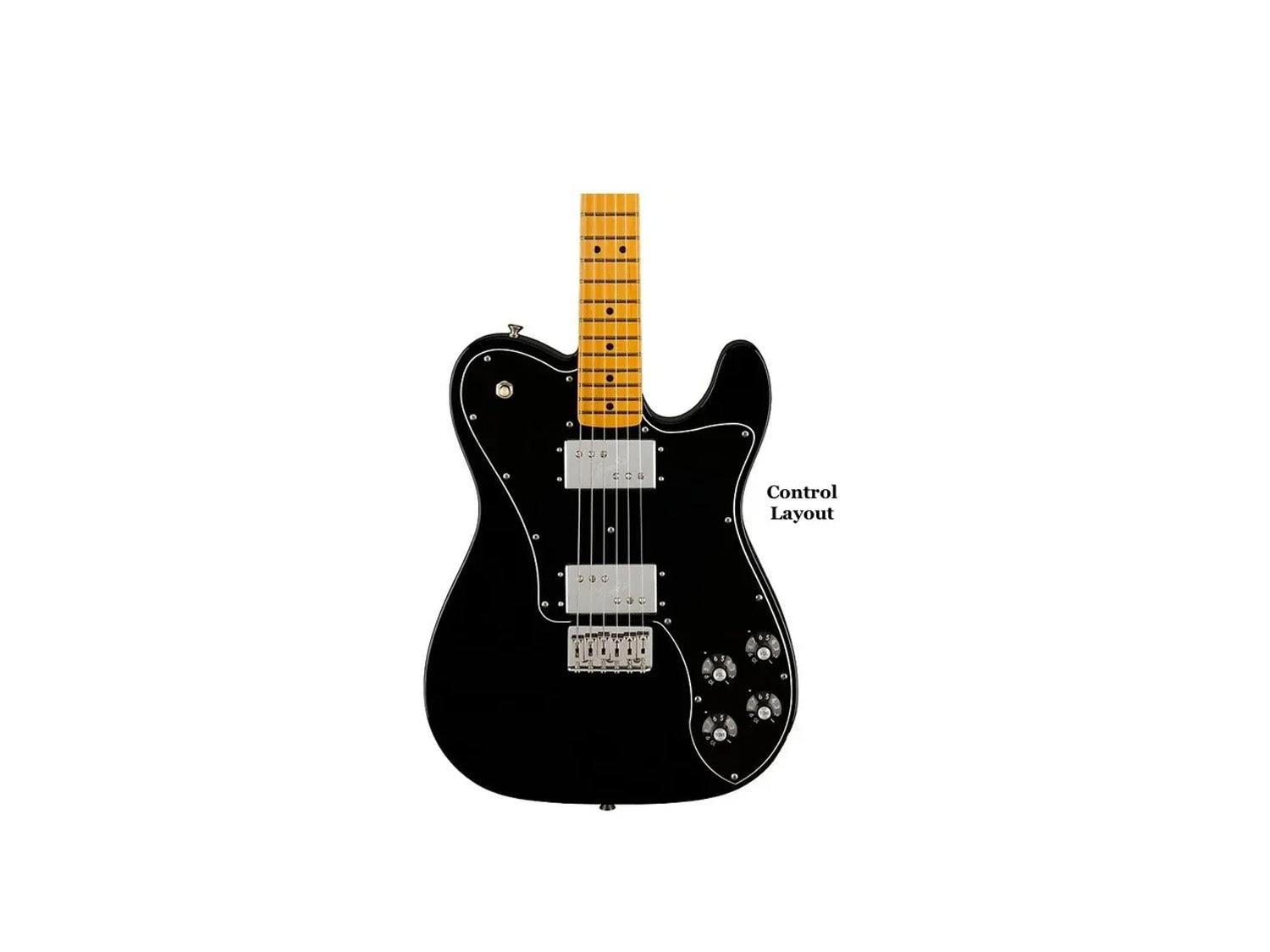

- Fender Telecaster Deluxe and '72 Deluxe reissues (4 controls, 2 pickups)
- Fender American Deluxe
- Uses a right-angle 3-way toggle that lies angled in the cavity under the pickguard. If your guitar uses a straight toggle, email us before ordering – we can build it with one.
- Knobs require 18-tooth coarse spline
- Not sure what you need? Reach out through the Contact Us page.
Fitment Measurements
- Vol to vol 1-5/8", tone to tone 1-5/8", vol to tone 2"
- Prewired switch wire run 20" (extra length included)
- Minimum cavity depth at the switch: 1"
- Minimum elongated cavity for the L-shaped switch: 2"
Shipping & Build Time
Every harness is custom built to order and tested before it ships. Lead time to build before shipping is 4 to 6 business days. In stock means we have the parts to build your harness.
Cheers,
Gary Standerfer / Tone Man Guitar
Workbench Note
The Telecaster Deluxe is a different animal from a standard Tele: two humbuckers, four controls and a toggle switch, closer to a Les Paul in layout than a Fender. That's why this Telecaster Deluxe wiring harness uses 500K pots and paired paper-in-oil caps rather than the 250K pots of a single-coil Tele. It fits both the original '72 Deluxe and the modern reissues. Playing a standard two-pickup, three-way Tele instead? See our Telecaster wiring harness.
