Telecaster Wiring Harness – Prewired
Telecaster Wiring Harness – Prewired
- Premium Paper-in-Oil (PIO) capacitor for the warmer, more gradual roll-off Telecaster players associate with true 50s vintage tone; or
- Orange Drop capacitor for a brighter, more affordable classic voicing.
Gary Standerfer - Tone Man Guitar.
Couldn't load pickup availability
What players say · from verified buyers
“His detail to attention, craftsmanship and quality is the best I have ever seen. I really do just sound and play better.”
John L., Nashville, TN · Strat & Telecaster
“Your work is exemplary. One of the cleanest and neatest soldering jobs I've ever seen.”
Ed M., Harrisville, WV · Strat
“Best wiring harnesses out there. The soldering is top notch. Everything is looks clean and tidy. Comes with really great instructions.”
Les Paul owner

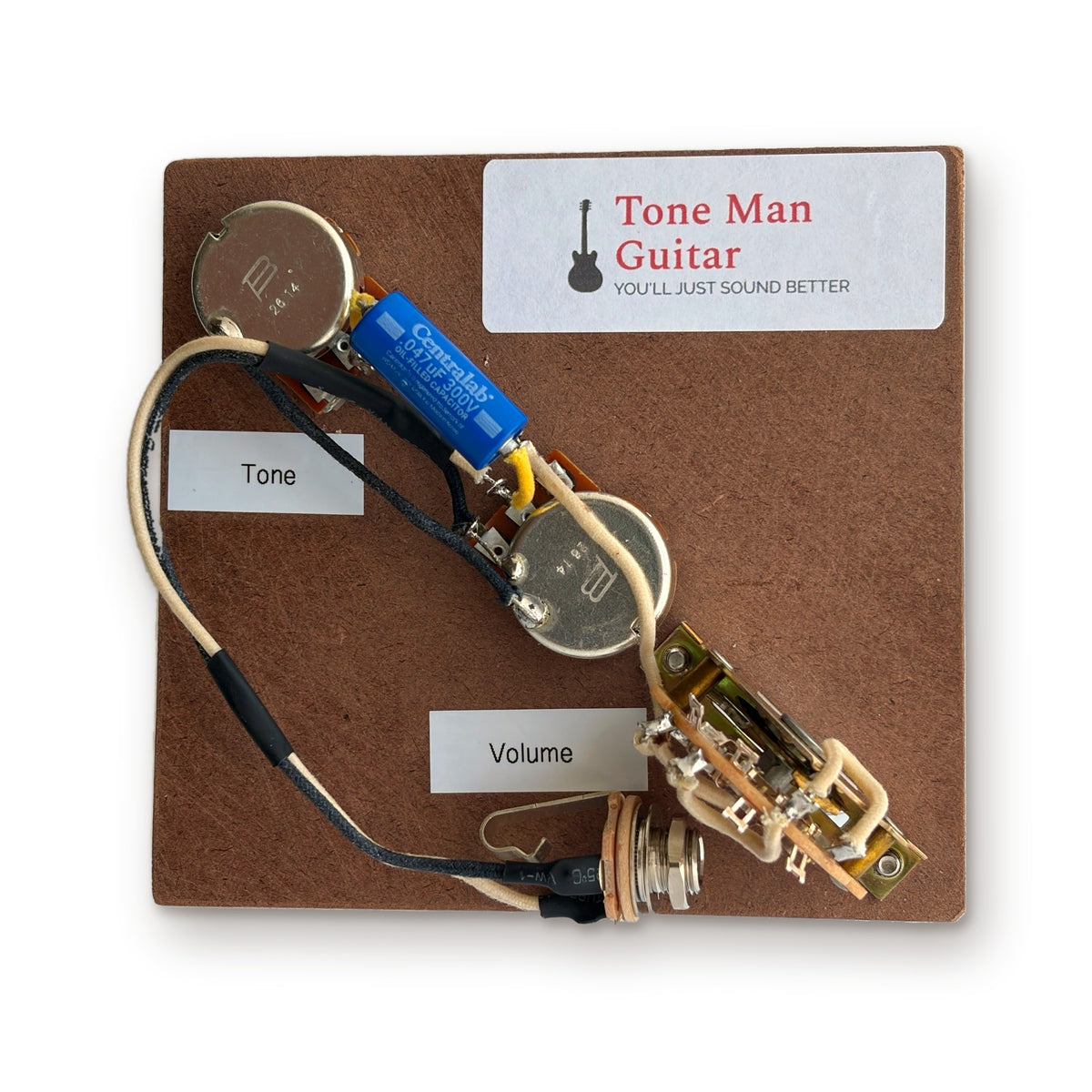

Telecaster Wiring Harness, Prewired and Bench-Tested
This prewired Telecaster wiring harness is built for the standard Fender Telecaster—one volume control, one tone control, and a 3-way pickup selector switch— and is fully assembled and bench-tested before it ships. Every harness ships with a wiring diagram and installation instructions, and arrives prewired on an assembly board with sleeve adapters included so it drops straight into a standard Telecaster control cavity.
This Telecaster harness uses 50s-style wiring, meaning the tone cap is wired between the tone and volume pots. This helps eliminate treble bleed when the volume is turned down and maintains the correct taper of both controls. Built with vintage-inspired 50s-style wiring and correct-value components throughout, it delivers smoother control feel, improved reliability, and clearer pickup response as soon as you install it. It fits Fender, Player, and American Standard Telecasters with the standard control layout.
Choose Your Tone Cap
Paper-in-Oil (PIO) or Orange Drop
Both are proven vintage-style .047uF tone capacitors, available on the same prewired harness.
Paper-in-oil (PIO) caps are the premium choice — prized for a warmer, more gradual roll-off as you turn down the tone knob, the true 50s vintage character Telecaster players chase.
Orange Drop caps are the modern standard — a clean, consistent roll-off at a more affordable price. Wire either one into your Telecaster the same way; only the capacitor changes.
What's Included
- Two 250K Bourns Pro Audio potentiometers (one volume, one tone)
- Tone capacitor — your choice: Paper-in-Oil / PIO (.047uF) or Orange Drop (.047uF)
- Oak Grigsby 3-way blade switch, prewired (switch tip not included)
- Switchcraft 1/4-inch output jack
- Vintage-style Gavitt cloth push-back wire
- Sleeve adapters (split-shaft to solid-shaft conversion)
- Fully assembled onto a harness board and tested before it ships
- Wiring diagram and installation instructions included
Specifications & Fitment
- Fits the standard Fender Telecaster: 1 volume, 1 tone, 3-way switch, 2 single-coil pickups — including Player Telecaster and American Standard Telecaster models
- Ships with 250K pots; need 500K instead? Leave a note in your order comments at checkout, and we'll build it that way at no extra charge
- Not sure what your guitar needs? Reach out through our Contact Us page before ordering
Have a Telecaster with a different control layout?
These harnesses are built for the standard 2-control layout above — for other configurations, see:
- Nashville Telecaster Wiring Harness (3 pickups)
- Telecaster Reversed-Control Wiring Harness (volume front, tone middle, switch back)
- Telecaster Deluxe Wiring Harness (4-control models)
- Telecaster Blues 60s Wiring Harness (.033uF cap voiced to tame harsh high-end "ice pick" frequencies)
Shipping & Build Time
- Custom-built to order, with a 4–6 business day lead time before it ships
- In-stock means we have the components on hand to build yours — not a pre-built unit sitting on a shelf
- Free shipping to U.S. addresses
- Easy 30-day return policy — if anything about your harness isn't right, we want to make it right
Frequently Asked Questions
What's the difference between PIO and Orange Drop tone caps?
Both are 0.047uF and wired the same way. Paper-in-oil (PIO) is the premium option, rolling off more gradually for a warmer, vintage-correct character. Orange Drop is the modern-vintage standard with a clean, consistent roll-off.
Does this include the pickup selector switch?
Yes — an Oak Grigsby 3-way blade switch is prewired into every harness (switch tip not included).
What guitars does this fit?
The standard Fender Telecaster control layout: 1 volume, 1 tone, 3-way switch, 2 pickups — including Player and American Standard Telecasters. If your Telecaster has 3 pickups (Nashville), a reversed control layout, or 4 controls (Deluxe), see the links above for the harness built for your model.
Can I get 500K pots instead of 250K?
Yes — just note it in your order comments at checkout, and we'll build your harness with 500K pots instead.
How long does it take to ship?
Each harness is custom-built to order, with a 4–6 business-day lead time before it ships. Shipping to U.S. addresses is free.
What's your return policy?
Every harness is backed by an easy 30-day return policy — if anything isn't right, we want to make it right.
Cheers,
Gary Standerfer / Tone Man Guitar
Workbench Note:
On a Telecaster, the harness mounts to the control plate (or pickguard, depending on your model) and drops into the body cavity as one unit. It's a straightforward install but still worth doing carefully. Test-fit the harness against your control plate before final assembly, keep the ground wire connections clean and secure, and lay a soft cloth over the body edge while you work to protect the finish. Not sure what your guitar needs? Reach out through our Contact Us page before ordering.
