Telecaster Premium Prewire PIO Tone Cap Cloth Wiring

This kit is for a Fender Telecaster 2 controls 3 way switch.

What’s In The Tele Kit:

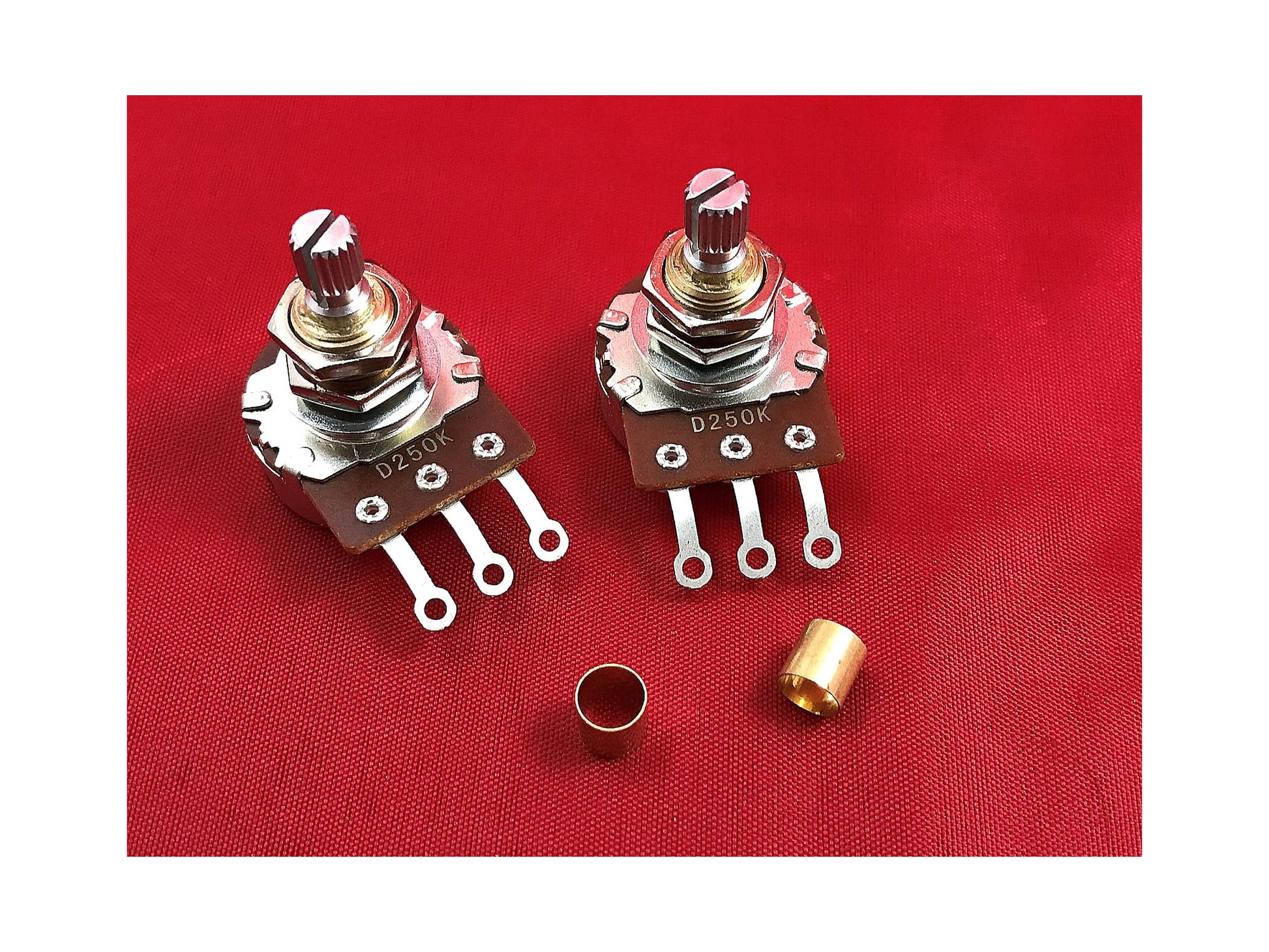

• Bourns Pro Audio 250K Short Shaft Audio Taper pots with Brass Bushings
• Includes Sleeve adapters to convert split shaft pot to solid shaft if needed for knobs with set screws
• Paper-In-Oil (PIO) Aged Vintage K42Y Tone Cap .047uf
• Gavitt 22awg vintage cloth push back wiring thru out. Just like Leo used in the 50’s
• Oak Grigsby 3-way switch with mounting screws
• Switchcraft ¼ jack

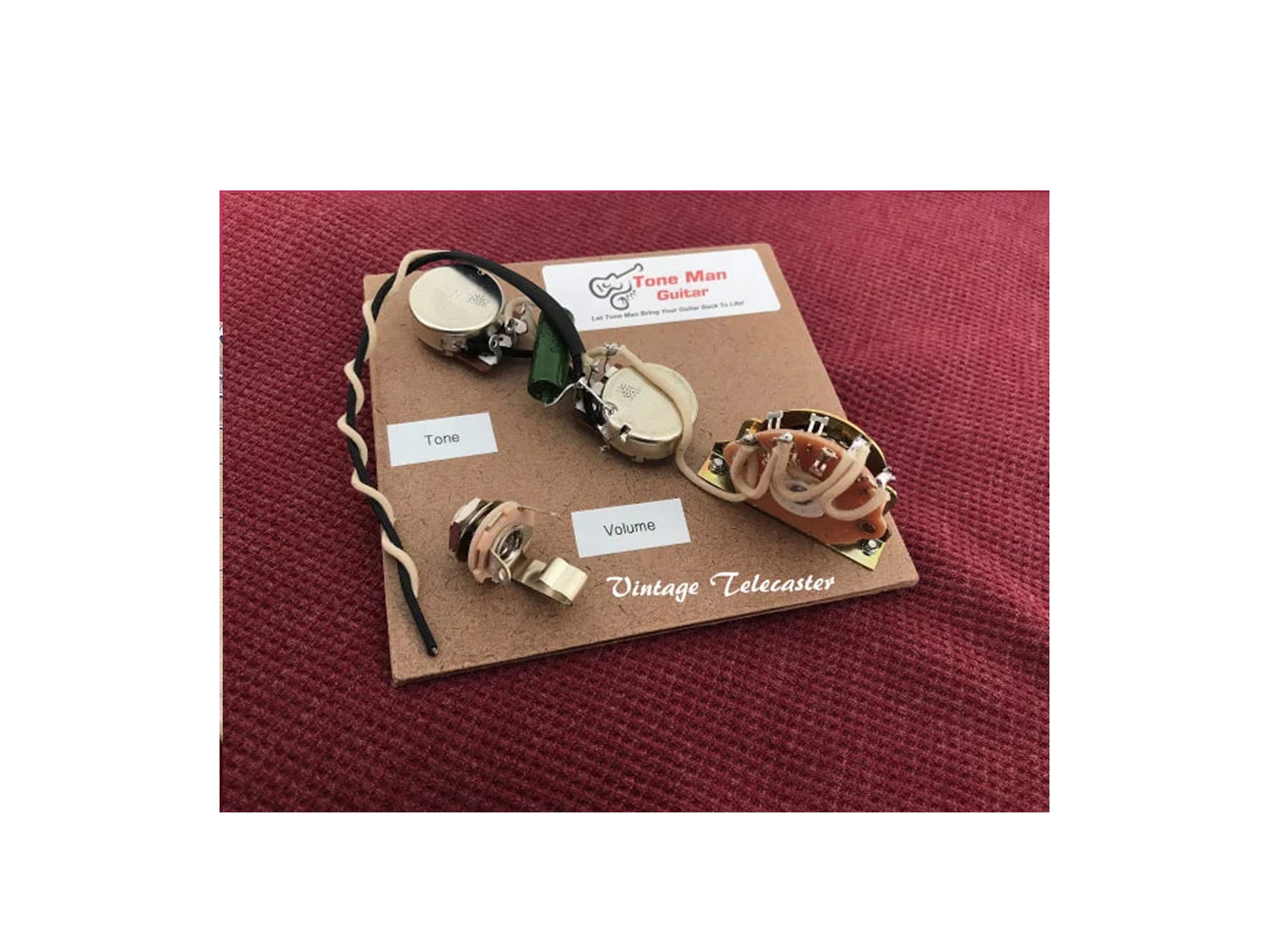

• Assembled template hard board. Note the template only used to assure correct measurements distances when building, shipping protection and makes your part of the installation easier.
• 50’s Wiring diagram and installation instructions
• Every kit goes thru our Performance and Accuracy Testing before being shipped out. Our kits work

For additional product details go to our Product Information page.

NOTES:

• Component Cavity width min 1 1/8 inch, depth min 1-5/8 inch for switch location.

• Distance volume to tone control center to center 2.5 inches. Distance between switch mounting holes 1 - 5/8 inch

Humbucker pickup pot value option:

• 500K pot values w/ .022uf tone cap

Each harness is custom hand assembled after purchase so my lead time to build your kit before shipping is 6 to 12 business days depending on my back log of kits.  In stock quantity means I have the parts to build that quantity of kits. You will receive a USP
