TrueAudio Bleed Filter Mod Circuit | Tone Man Guitar

TrueAudio Bleed Filter Mod Circuit | Tone Man Guitar

$14.99 USD
$14.99 USD
Sale Sold out
Shipping calculated at checkout.
Upgrade your guitar from Tone Man Guitar parts / components selection.  Every part is of the highest quality designed to deliver improved performance and reliability.  Our parts are all tested for correct values and tolerances.  I want you to be 100% satisfied!
The Ultimate High-End Retention Mod for Smooth, Natural Volume Control
Are you tired of your guitar turning muddy the second you roll back the volume?  Standard generic treble bleed circuits come with a major catch  - they flatten out natural audio taper.  Our Special Design Tone Man TrueAudio Bleed Filter Mod Series Style solves it all.  Fixes interaction between volume and tone controls, eliminating high-end loss and "Ice-Pick highs plus keeps your volume roll-off smooth and musical from 10 to 0.
Most generic treble bleeds use a simple capacitor or a parallel resistor/capacitor network.  While they keep the sparkle, they severely warp your volume pot's natural taper, flattening out your control sweep and making the volume drop off like a cliff.  Worse yet, they actively fight against vintage '50s wiring configuratations, causing the tone to sound thin, tinnier or rendering the treble bleed completely redundant.
Our TrueAudio Bleed Filter Circuit fixes all of it.  By replacing a premium resistor and high-grade capacitor in series rather than parallel, we have designed a circuit that limits excess high-end glassiness while keeping your volume sweep perfectly organic and predictable.
Key Benefits
  • Preserves the Pot's Natural Taper: Unlike parallel mods that ruin the sweep and cause sudden drops between 7 and 10, the series design protects your volume potentiometer's natural audio taper.  Your volume changes smoothly from 1 to 10 without unpredictable jumps.
  • Engineered for "50s Wiring Compatibility: Standard treble bleeds are notortious for sounding thin or redundant when parired with '50s guitar wiring.  Our tuned series configuration allows players who love '50s interacative tone controls to finally maintain note clarity and low-end warmth when rolling off the volume.
  • Eliminates "Ice-Pick" Highs:  Simple capacitor-only modifications allow too much treble to bleed through at lower volumes, making your guitar sound screechy.  The series resistor functions as a gentle frequency gate, broadening the resonance peak to keep your tone full-bodied and organic.
  • Retains Bass presence:  When you clean up your overdriven amp or pedal by rolling back the volume, you won't lose your guitars fundamental punch.  The series circuit leaves your bottom end intact so your rhythmum tone stays thick and powerful.
  • Invisible at Full Volume:  When your volume is dimed at 10, the circuit is completely bypassed, leaving your pickup's raw, uncolored tone 100% pure.

Technical Specifications

  • Specific  capacitor-resister values hand picked
  • Special designed capaitor-resistor series wired
  • Sealed heat shrink tubbing for extra protection
  • Easy install across volume pot in/out tabs (see photo)
  • Hand wired in our shop in Noblesville, Indiana
  • Design for all styles of guitar wiring.  Modern and '50s wiring

Compatibility

  • All styles guitar wiring
  • Stratocaters (normally not wired '50s style)
  • Telecaster that are wired modern or '50s style
  • For single coil, P90s or humbucker pickups
  • If you have questions or just not sure contact us

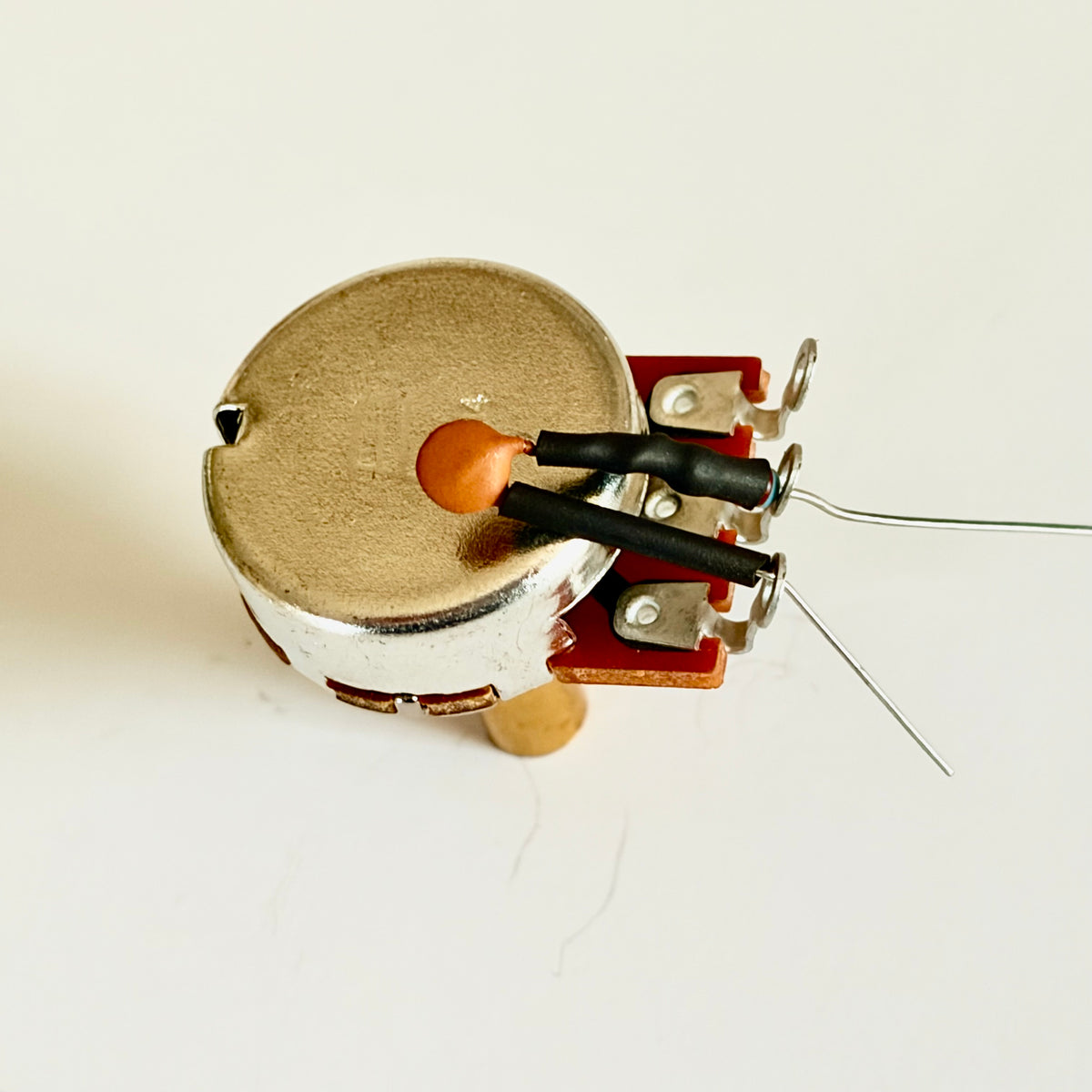

Note: picture of volume pot only shown to illustrate were the TrueAudio Bleed circuit is to be connected.  Filter circuit does not include the pot.

  • Premium quality components from major part manufacturers
  • Hand tested completely before shipping
  • Fast shipping
  • Ships to your front door for FREE

Product Description:

Tone Man designed TrueAudio Bleed Filter Mod Circuit

What's Included

  • 1 special capacitor and resistor
  • Hand wired in series and ready to install
  • Sealed protective tubbing
  • Brand new and tested and ready to solder in

For additional product details see our Product Information Page

Cheers,
Gary Standerfer / Tone Man Guitar
