Eric Johnson Stratocaster Wiring Harness (Dedicated Bridge Tone Pot, PIO .1uF)

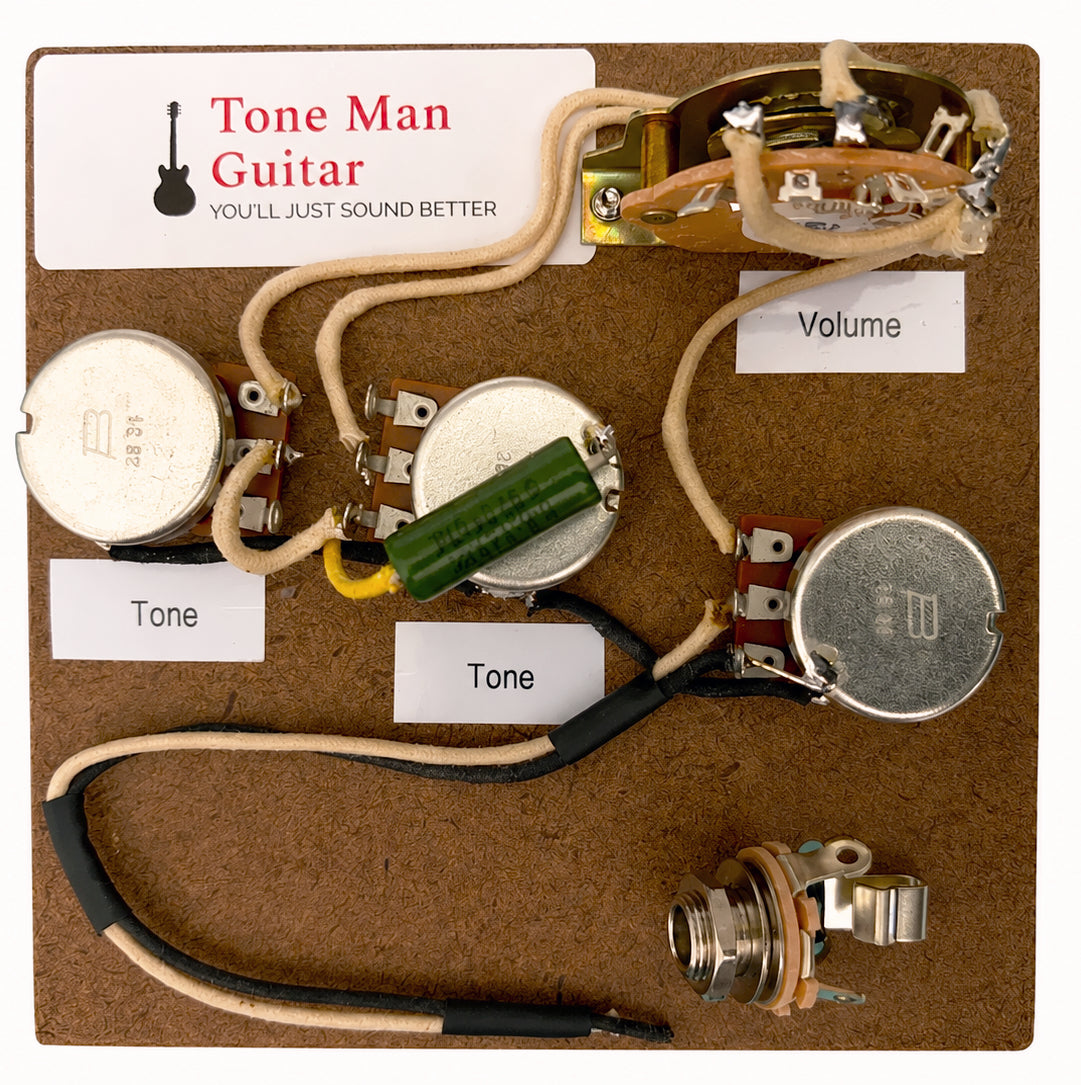

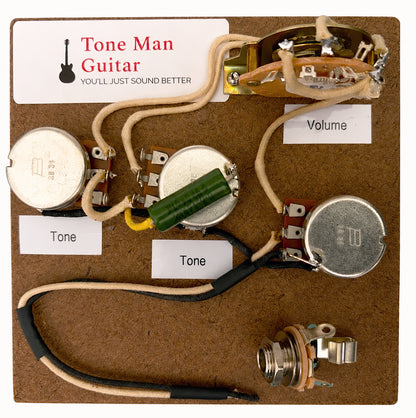

This prewired wiring harness reproduces Eric Johnson's signature Stratocaster wiring: instead of the standard 3-control layout with two tone pots on the neck and middle pickups, this harness moves the second tone pot to the bridge pickup — giving you a dedicated tone control to tame that often too bright bridge single-coil. Fully assembled and tested on our workbench before it ships, every harness arrives prewired on a drilled assembly board sized to your Stratocaster's control cavity, with a wiring diagram and installation instructions included. Each harness is carefully assembled by hand. I want you to be 100% satisfied.
If you've been searching for an Eric Johnson Stratocaster wiring harness or a way to finally shape that harsh bridge-pickup top end, this is the harness.
The Eric Johnson Wiring Mod
Why a Dedicated Bridge Tone Pot?
Standard factory single-coil Strat wiring gives you one volume and two tone controls — one for the neck pickup, one shared between the middle and neck. That leaves the bridge pickup wide open, with no way to roll off its high end. It's a big part of why a bright bridge single-coil can sound harsh or thin next to the neck and middle positions.
This harness rewires that second tone pot straight to the bridge pickup instead: T1 controls the neck pickup, T2 controls the bridge pickup, and the middle pickup runs with no tone control — the same configuration Eric Johnson uses to dial in warmth and control from his bridge pickup on demand. It's wired with a vintage-correct .1uF Paper-in-Oil tone cap for a smooth, gradual roll-off.
What's Included

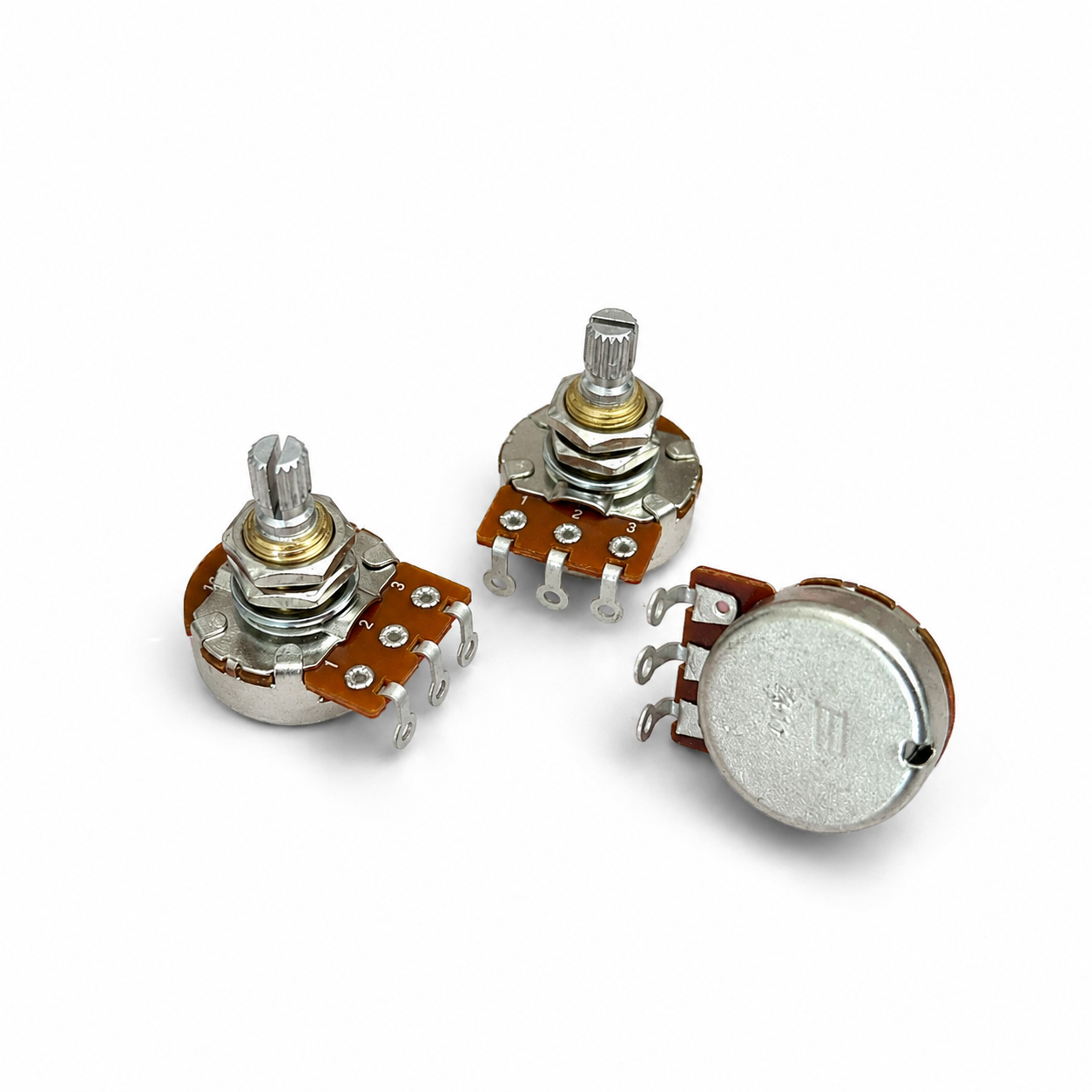

- Bourns Pro Audio potentiometers, 250K (volume, neck tone, bridge tone)
- Paper-in-Oil (PIO) tone capacitor, .1uF — vintage-correct EJ spec
- Eric Johnson pot assignment: T1 = neck tone, T2 = bridge tone; no tone control on the middle pickup
- Oak Grigsby 5-way blade switch, prewired (switch tip not included)
- Switchcraft 1/4-inch output jack
- Vintage-style cloth Gavitt push-back wire
- Fully assembled onto a drilled harness board and tested before it ships
- Wiring diagram and installation instructions included
Tone Benefits
- Independent control over the bridge pickup's high end — no more stuck-bright bridge tone
- Clearer, more balanced pickup response across all five switch positions
- Smooth, gradual tone roll-off from the vintage-correct PIO .1uF cap
- Reliable, premium-grade components throughout
Specifications & Fitment
- Fits the standard 3-control, 5-way switch Stratocaster with three single-coil (SSS) pickups: Fender Stratocaster, Player Strat, American Standard Strat, and similar EJ-style Strats
- Built around the Eric Johnson dedicated-bridge-tone wiring — not the standard 3-control Strat layout
- Want the standard wiring Strat harness, with a choice of PIO or Orange Drop at .047uF? See the Stratocaster Wiring Harness
- Looking for a vintage-correct .1uF early-60s tone cap on the standard wiring? See the Blues '64 Harness
- Not sure what your guitar needs? Reach out through our Contact Us page before ordering.
Shipping & Build Time
- Custom-built to order, with a 5–10 business day lead time before it ships
- In-stock means we have the components on hand to build yours — not a pre-built unit sitting on a shelf
- Free shipping to U.S. addresses
- If anything about your harness isn't right, we want to make it right
Frequently Asked Questions
What makes the Eric Johnson wiring different from a standard Strat harness?
Standard Strat wiring puts one tone pot on the neck pickup and one shared between neck and middle, leaving the bridge pickup with no tone control. This harness moves that second pot to the bridge instead, so T1 shapes the neck and T2 shapes the bridge — the middle pickup runs with no tone control.
Does this include the 5-way switch?
Yes — an Oak Grigsby 5-way blade switch is prewired into every harness (switch tip not included).
What tone cap does this harness use?
A Paper-in-Oil (PIO) .1uF capacitor — the vintage-correct spec for the EJ wiring. This harness doesn't come with an Orange Drop or .047uF option; if you want a cap choice, see our Standard Stratocaster Harness.
Will this fit my HSS or HH Stratocaster?
This wiring is built around three single-coil (SSS) pickups, since the whole point is shaping the bridge single-coil's top end. If you're running HSS or HH, contact us before ordering so we can point you to the right harness.
Do you offer the standard Strat wiring instead?
Yes — see our Standard Stratocaster Harness (choice of PIO or Orange Drop, .047uF) or our Blues '64 Harness (vintage .1uF PIO on the standard layout).
How long does it take to ship?
Each harness is custom-built to order, with a 5–10 business-day lead time before it ships. Shipping to U.S. addresses is free.
Cheers,
Gary Standerfer / Tone Man Guitar
Workbench Note:
Most players who go looking for Eric Johnson's wiring do it for one reason: the bridge pickup on a standard Strat is stuck bright, and there's no tone control to fix it. You can hear it on plenty of recordings and still not get that sound out of your own bridge position — not because your guitar is wrong, but because the standard wiring never gave you a knob for it.
Eric Johnson's fix is simple once you see it: stop sharing a tone pot between the neck and middle, and give the bridge pickup its own dedicated tone control instead. Suddenly you can roll off exactly as much ice-pick top end as the song calls for, without touching your amp or reaching for a different guitar.
That's what this harness gives you, built and tested before it ever leaves the bench — Bourns pots, a vintage-correct PIO .1uF cap, and the wiring already run neck-to-T1, bridge-to-T2. No tracing diagrams, no re-soldering a working harness to move one wire — just drop it in. The installation guide included with every order shows you exactly how.
