ES175 Premium Series Prewire PIO Tone Caps

Our Best ES175 Prewired Kit

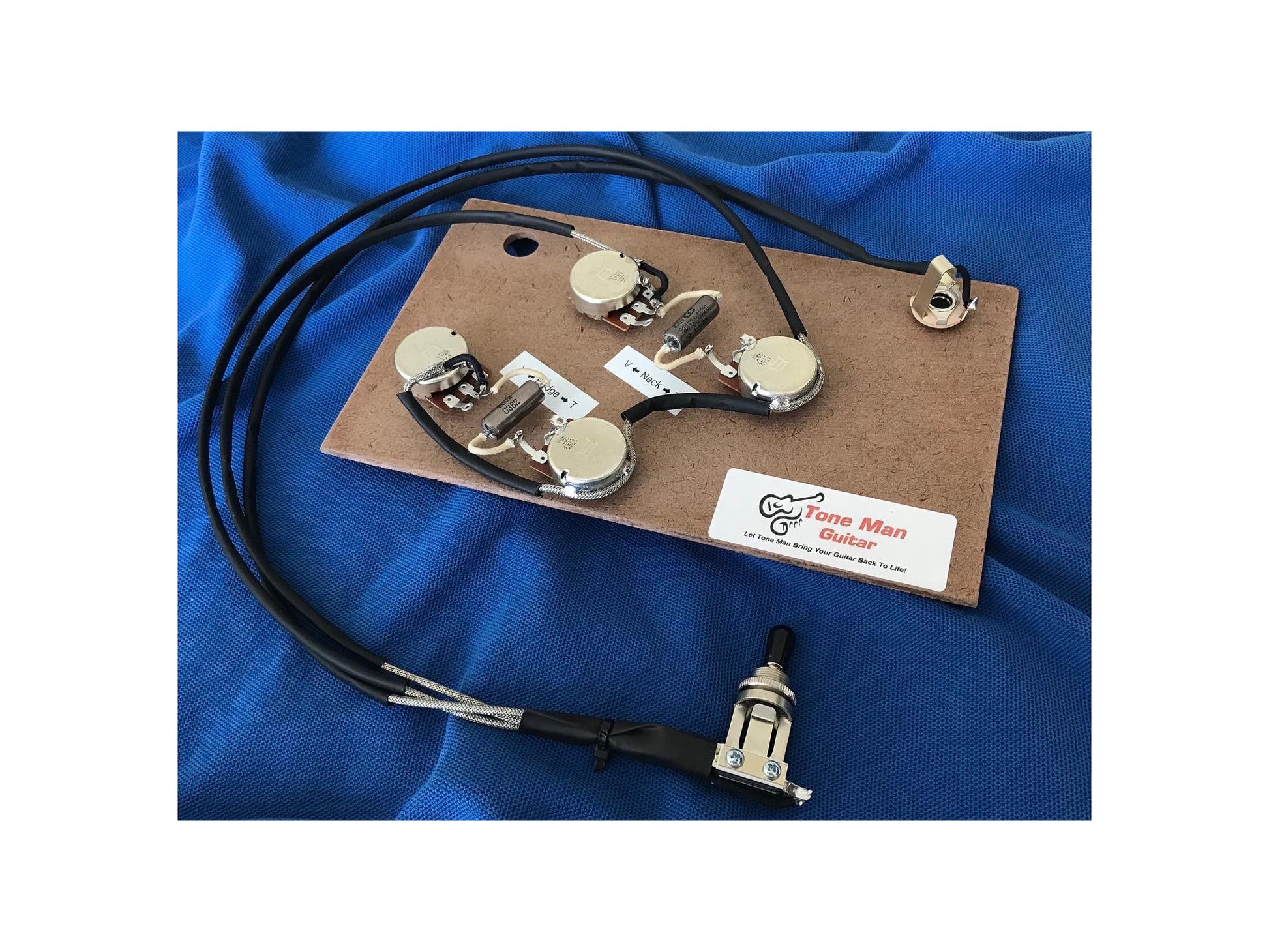

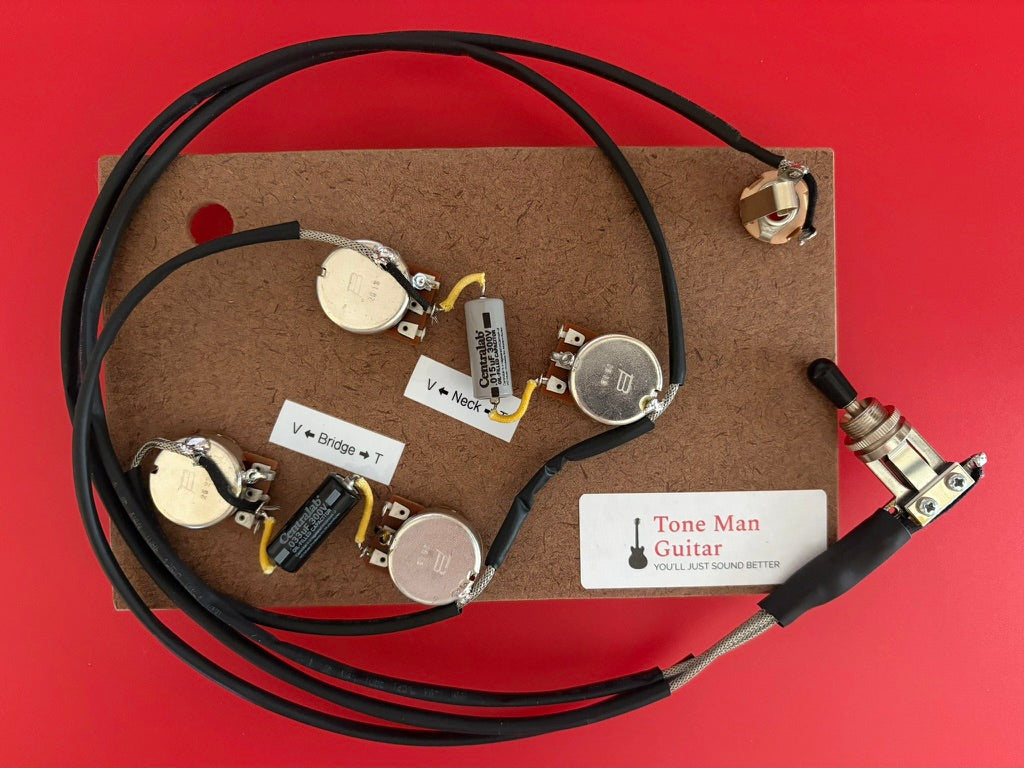

What's In The Kit:

• Bourns Pro Audio 500K potentiometers short shaft coarse spline 18 teeth, audio taper 15% tolerance. Hand picked values for the best 59 tone.
• Paper In Oil (PIO) Aged K40Y bridge tone cap. .033uf
• Paper In Oil (PIO) Aged K40Y neck tone cap. .015uf
• Switchcraft or Centralab Chrome (brand depends on availability) prewired 3-way toggle switch black tip.
• Swithcraft 1/4 jack for the best connection.
• Gavitt 22awg Braided cloth push back wiring thru out all wrapped with high quality insulation to prevent short outs.
• Assembly Template Hard Board. Template does not get installed. All assembled except for final hook up of Pickups connections and grounds.
• 50's wiring diagram with step by step easy to read instructions

• Every kit goes thru our Performance and Accuracy Testing before being shipped out. Our kits work.

For more product details go to our Product Information page.

NOTES:

• Switch tip color black. Cream available upon request ONLY if we have in stock. Add note color request when purchased.
• Wiring harness is feed thru the f holes and requires opening in the widest part of the f hole no less than 1-3/16 inch to be able to feed the harness into the hollow body.
• Each harness is custom built after purchase.  Lead time to build before shipping is 6 to 12 business days depending on our back log of orders.  In stock means we have the parts to build the kit.

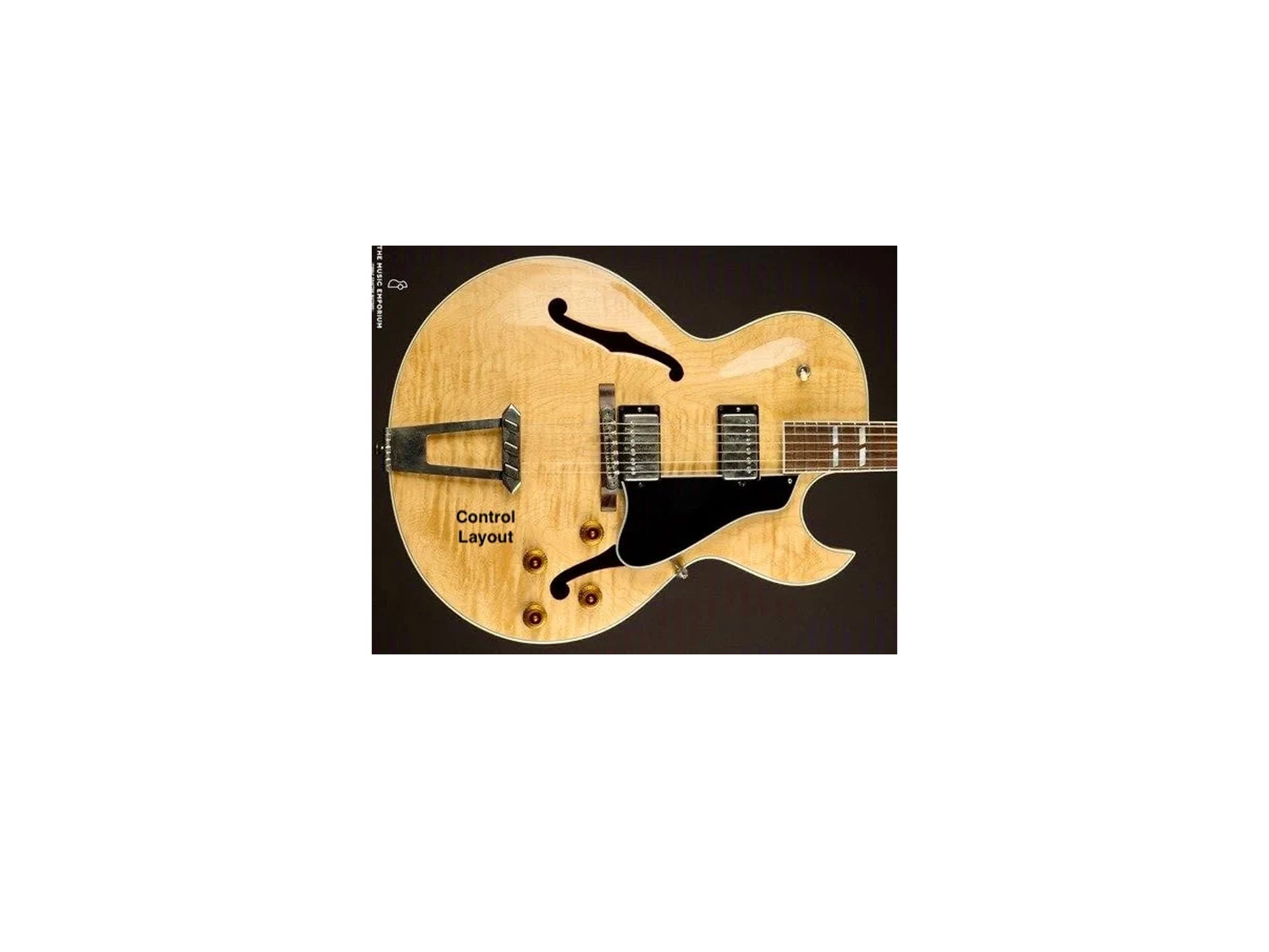

Template component measurements center to center:

• Volume to Volume 2.5"   Switch to Neck Volume 15"
• Tone to Tone 2.5"       Switch to Jack 20"
• Volume to Tone 2.5"

We add an additional 1/2 to 1 inch extra wire run between components for installation flexibility.
