SG wiring kit Premium Series DIY PIO tone caps

Gibson or Epi SG with 4 contols. 3 Way Toggle switch, jack wire

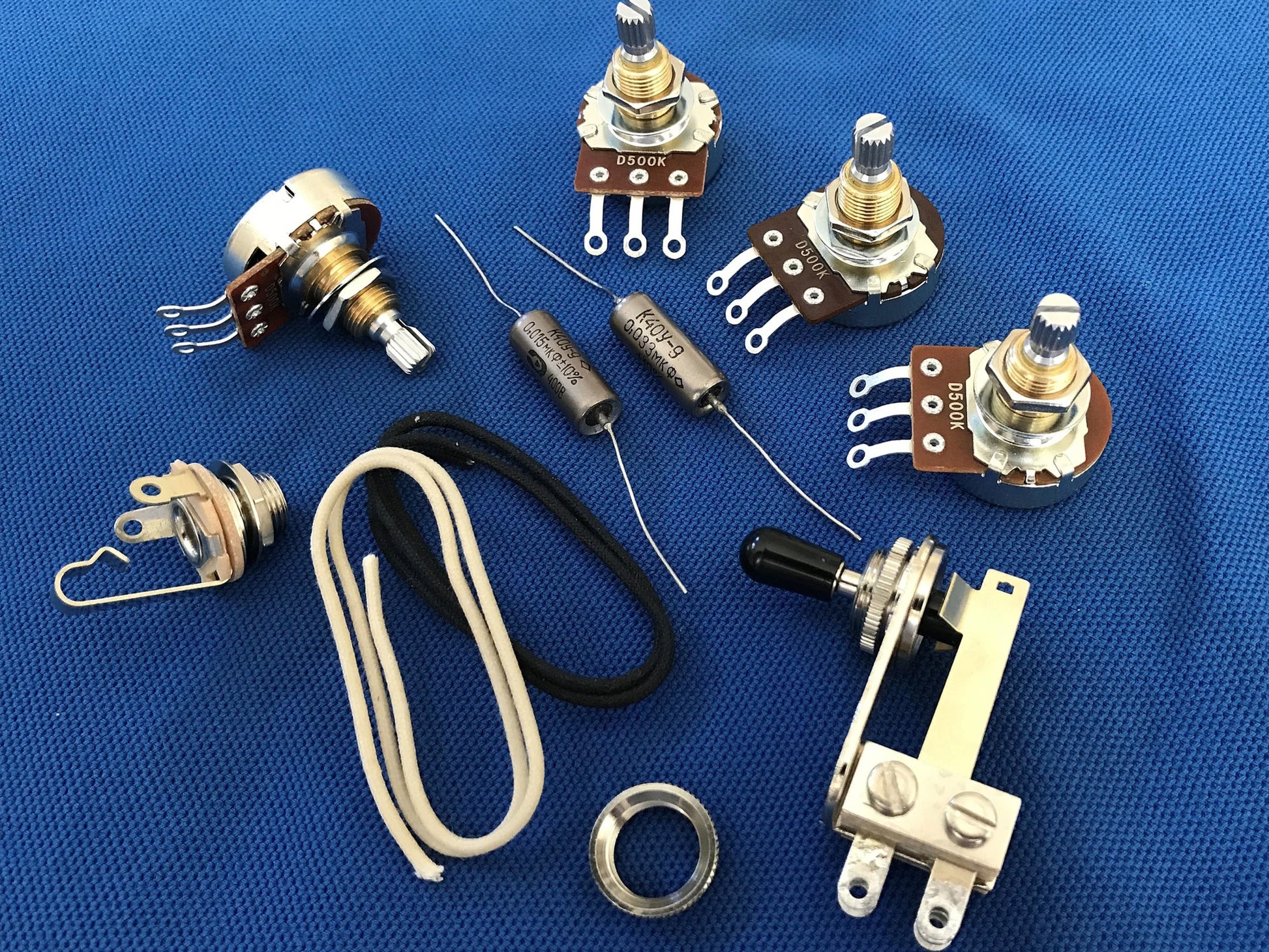

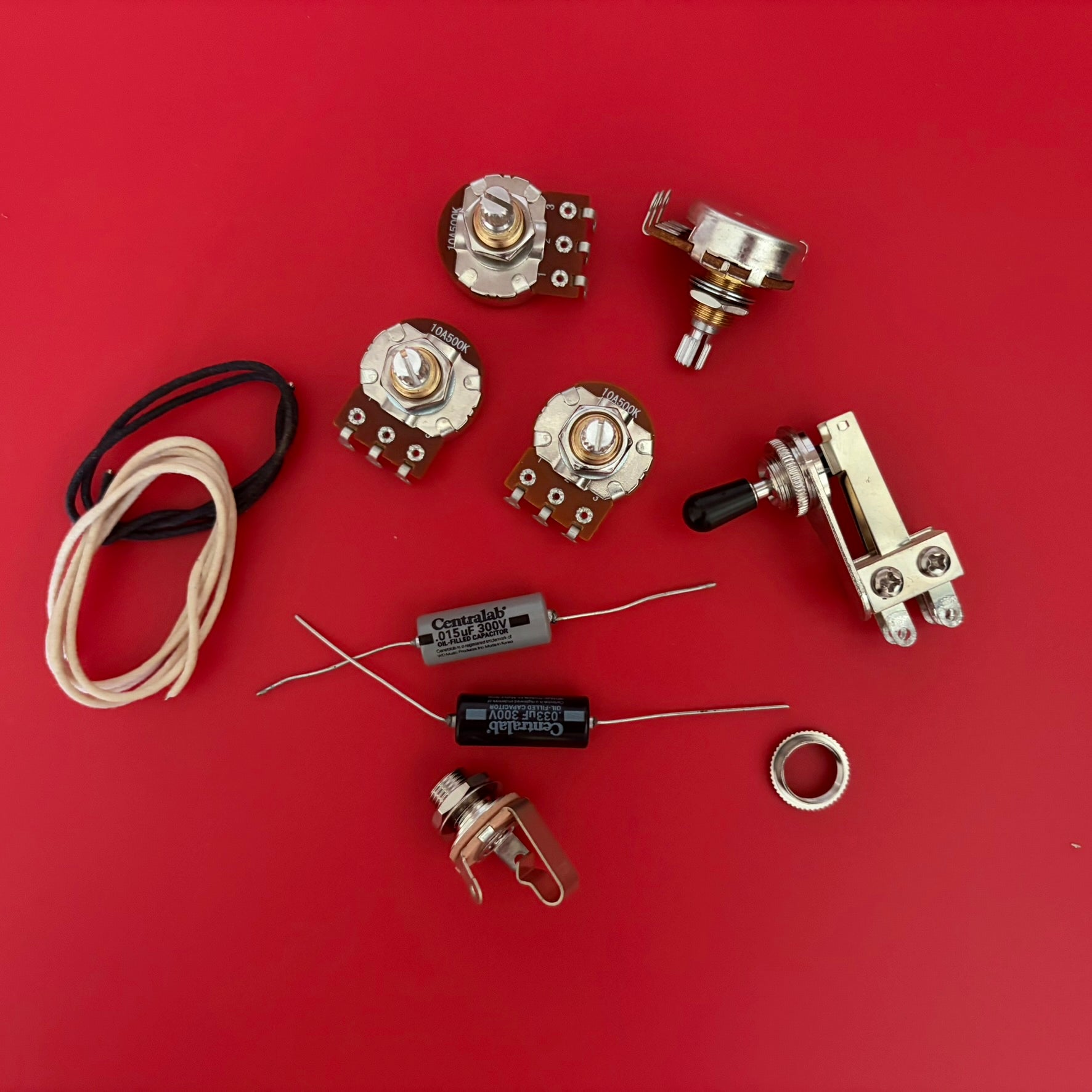

 What is the DIY kit:

• Bourns Pro Audio 500K Potentiometers - Short-Split-Shaft, Audio Taper Coarse spline
• Switchcraft or Centralab (brand depends on availability) prewired 3-way toggle R-Angle switch black tip.
• Paper-In-Oil (PIO) K40Y-9 Vintage Tone Caps. 033 bridge .015 neck
• Switchcraft ¼ inch output jack
• 1 ft. black pushback cloth vintage wire / 1 ft. white pushback cloth vintage wire
• 50's wiring diagram
• For more product details go to our Product Information page.

NOTES:

• Note: If you have an imported guitar (e.g. Japan, China, etc.)  you may need to modify the potentiometer holes to 3/8 inch to accommodate the Brourns bushings.  Bourns pots require 18 teeth coarse spline knobs. We sell knobs that fit. Email me with questions.
• Need new knobs: See our list of knobs under Parts Category.
