SG 3 Pickup Premium Prewire Gibson Epiphone Short Shaft Pots PIO Caps

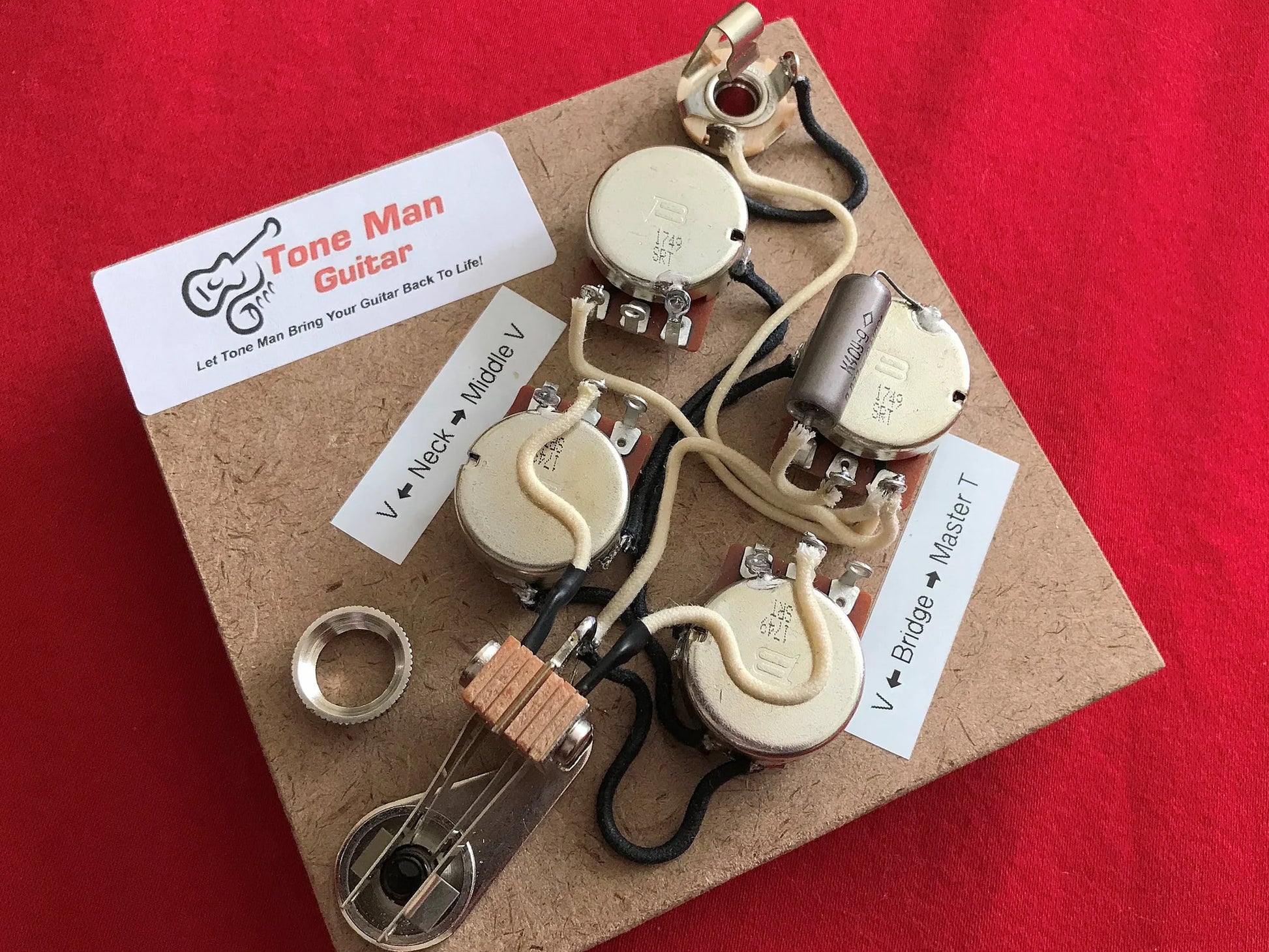

SG 3 pickup Prewire

Special Tone Modification Pickup Selection:  Our Vintage 3 Pickup SG Harness is wired with a special modified schematic that gives you the best pickup combination selection for 3 pickups. The standard wiring for 3 humbucker guitar is Bridge / Bridge & Middle / Neck. With our modified set up the Neck & Bridge pickups still operate the same with the 3-way toggle as a standard 2 pickup SG. Middle pickup is blended in with its on volume control.

 What's In The  Kit:

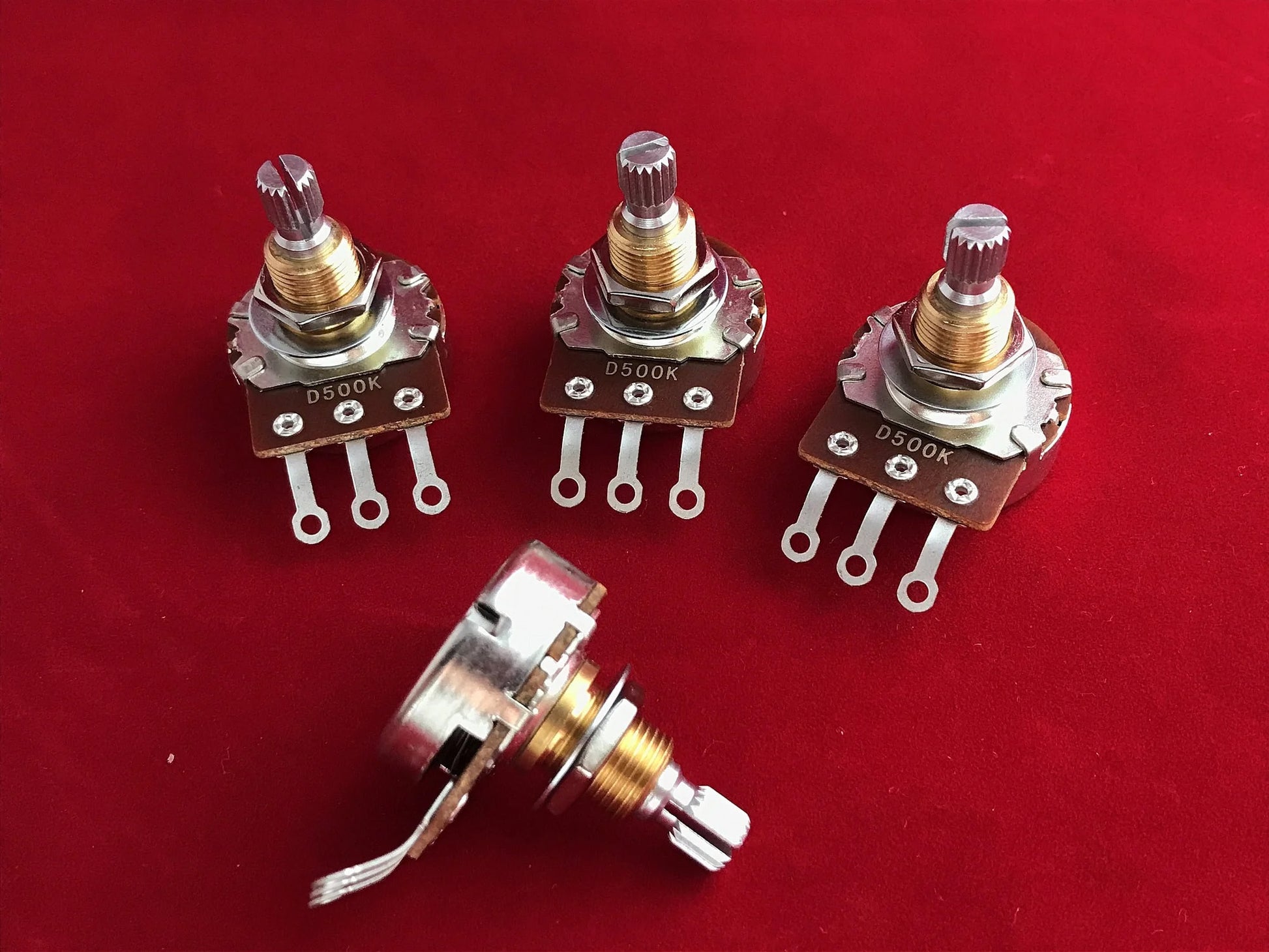

• Bourns 500K Potentiometers - Short-Split-Shaft, Audio Taper. 1 Master Tone 3 Volume Controls
• Switchcraft or Centralab (brand depends on availability) prewired 3-way toggle r-angle switch black tip.
• Switchcraft 1/4 jack
• K40Y-9 .033uf PIO Vintage Tone Cap
• Gavitt cloth wiring thru out
• Assembly Template Hard Board does not get installed.
• Wire diagram & installation instructions.

NOTES:

• Switch tip color black. Cream available upon request ONLY if we have in stock. Add note color request when purchased.

• Note: If you have an imported guitar (e.g. Japan, China, Epiphone, etc.)  you may need to modify the potentiometer holes to 3/8 inch to accommodate the Bourns bushings. Email me with questions.
• If you need new knobs we offer a variety of knobs that fit this unit.  See our complete list of knobs under Parts Category.
• If you need new knobs we offer a variety of knobs that fir our kits.  See our selection in Parts Category.
• Each prewire kit is custom built after purchase.  Lead time to build the kit is 6 to 12 business days depending on our back log of orders.  In stock means we have the parts to build the kit.
