ES335 Classic Series Prewire Orange Drop Tone Caps

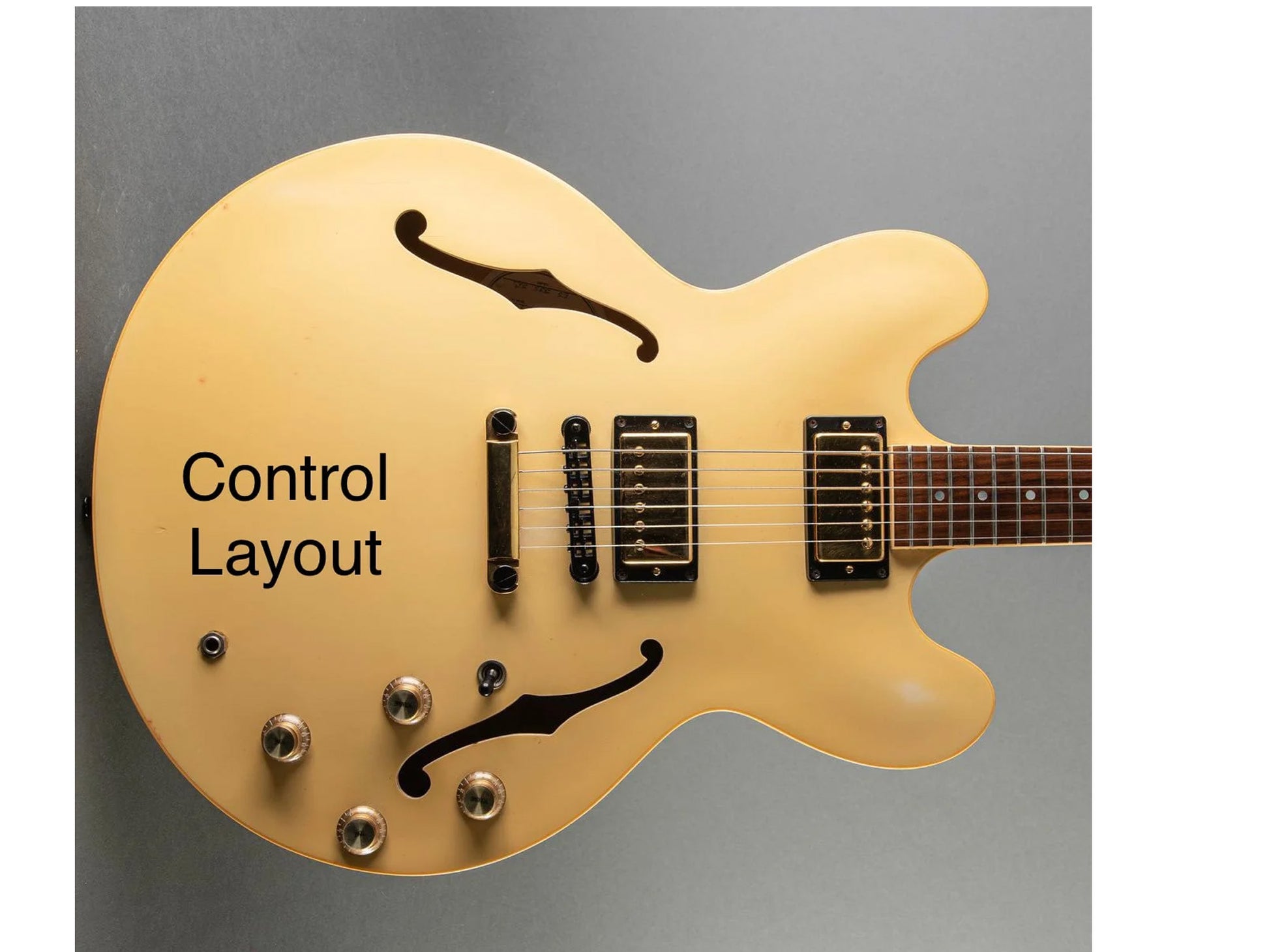

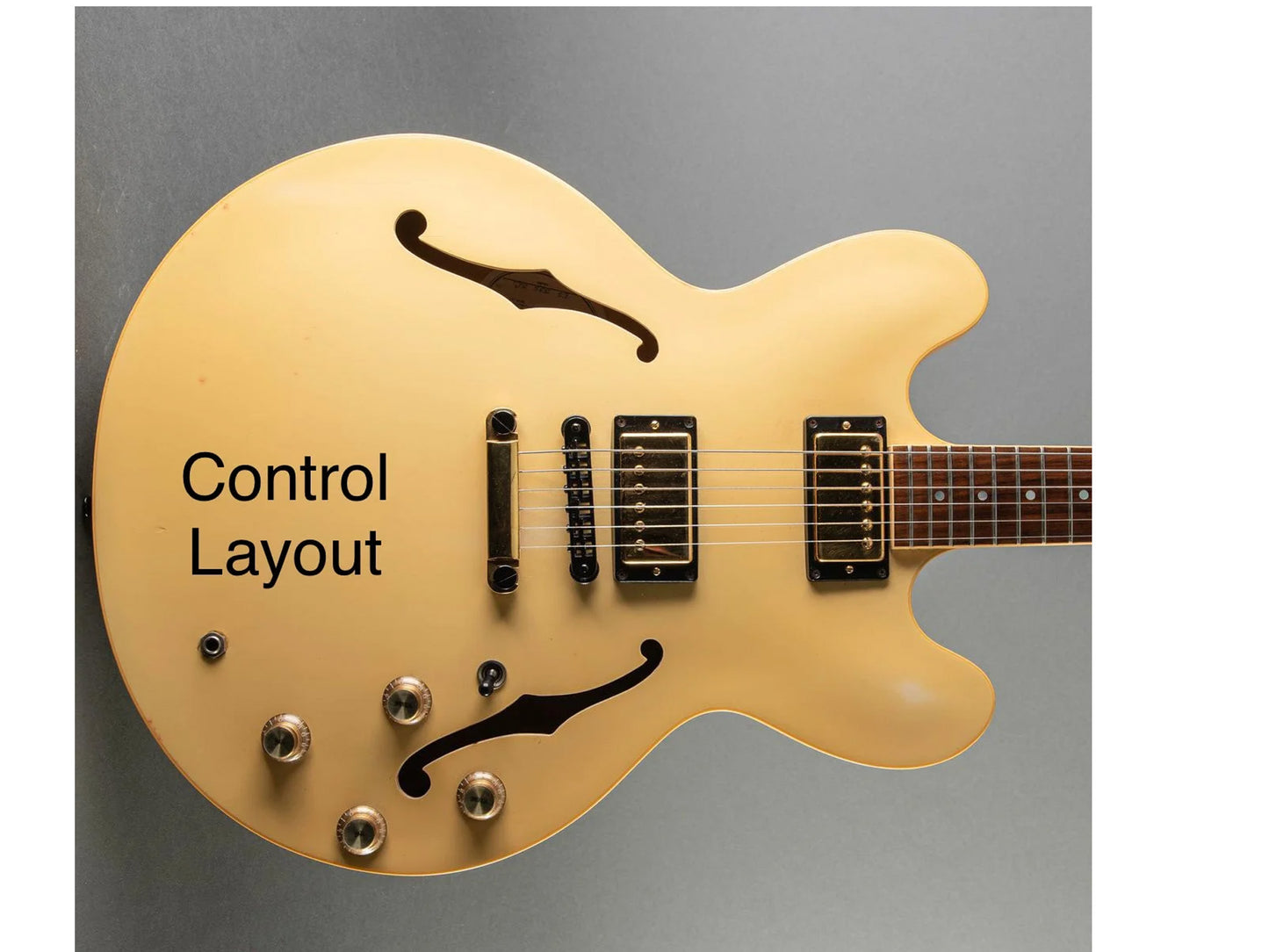

Gibson or Epiphone ES335, Casino or other hollow body guitars with same layout.  Se photo.

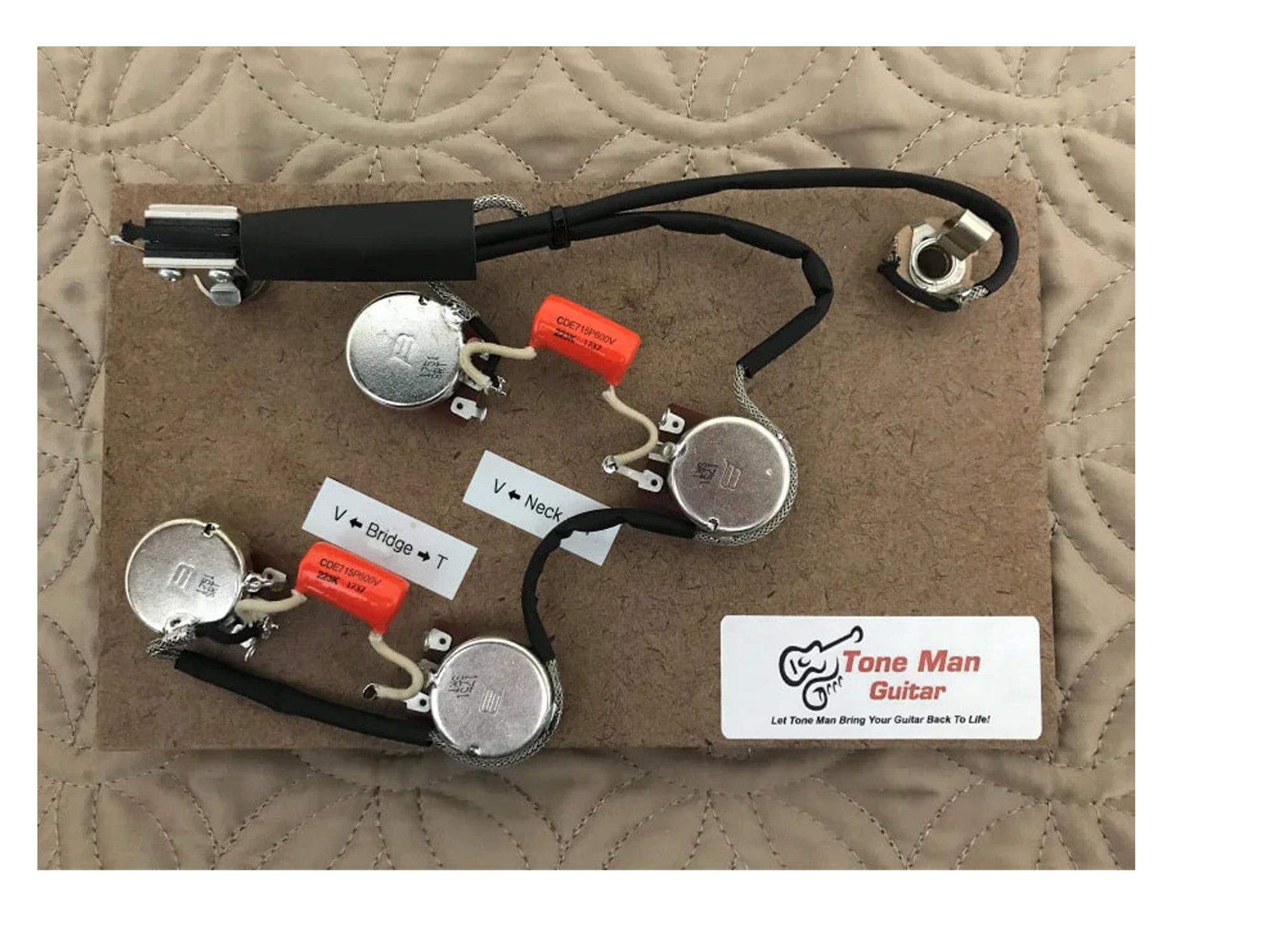

What's In The Kit:

• Bourns Pro Audio 500K audio taper short shaft pots. 15% tolerance, Coarse 18 teeth spline.
• Orange Drop .022uf bridge .022uf neck tone cap.
• Switchcraft or Centralab (brand depends on availability) prewired 3-way toggle switch black tip.
• Vintage 22awg Braided clothmwiring all wrapped with high quality shrink
• Switchcraft ¼ inch Output Jack
• 50's wiring diagram with instructions
• Assembly Template Hard Board All assembled except for final hook up of Pickups connections and grounds.
• Every kit goes thru our Performance and Accuracy Testing before being shipped out. Our kits work.

For additional product details go to our Product Information page.

Template component measurements center to center:

• Volume to Volume 2.5"   Switch to Neck Volume 2"
• Tone to Tone 2.5"       Switch to Jack 9"
• Volume to Tone 2.75"
• Jack wire run longer for jack's located on end.
• We add an additional 1/2 to 1 inch extra wire run between components for installation flexibility.

NOTES:

• Wiring harness is feed thru the f holes and requires opening in the widest part of the f hole no less than 1-1/8 inch to be able to feed the harness into the hollow body.
• Sheraton Models: These models may have a smaller f hole opening & will not allow a full size pot to feed thru. Measure the widest opening at The V f hole. Min width is 1-1/8". Email us we do have an option.
• Note: If you have an imported guitar (e.g. Japan, China, etc.)  you may need to modify the potentiometer holes to 3/8 inch to accommodate the Bourns bushings. Email me with questions.
• Need New Knobs >  See our complete list of knobs under Parts Category
• Each prewire kit is custom built after purchase.  Lead time to build kit  before shipping is 6 to 12 business days depending on our back log of order.  In stock means we have the parts to build the kit.
