ES335 Wiring Harness - Premium Prewired Kit - PIO Caps - 50s Wiring

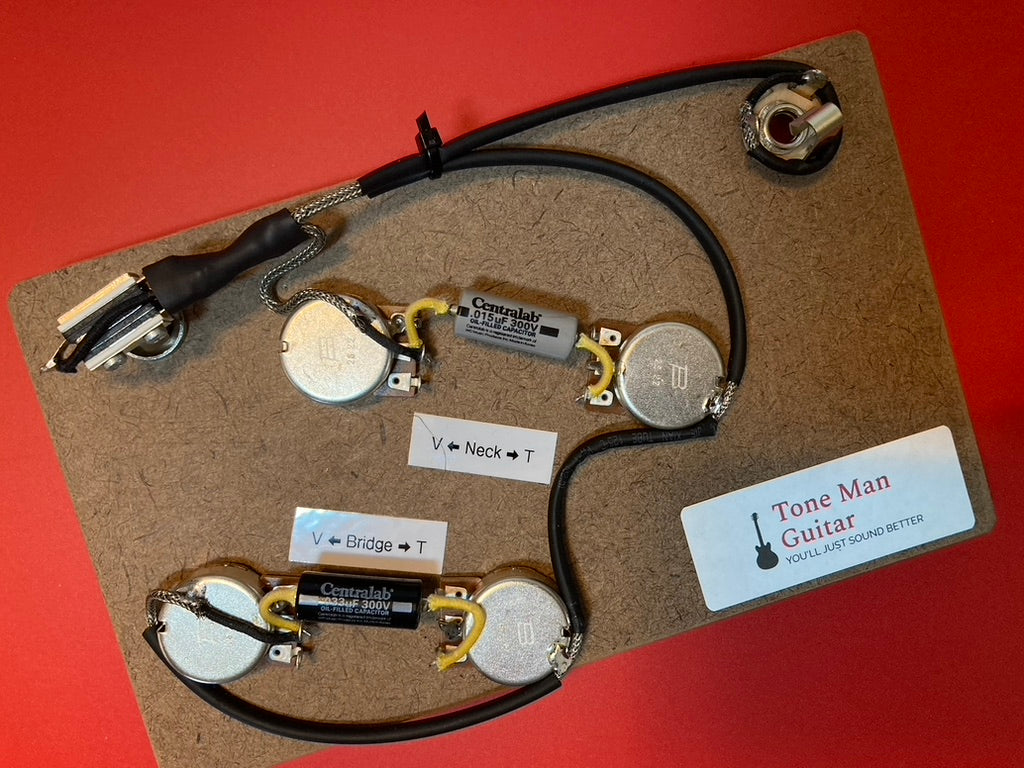

Upgrade your guitar with the Tone Man Guitar Premium ES335 wiring harness.  This prewired kit uses high-quality components designed to deliver smoother control, improved reliability, and true vintage tone.  Each harness is carefully assembled and tested in my shop with pride and includes wiring diagram and installation instructions for easy installation.  I want you to be 100% satisfied!

• Premium quality components

• 50s wiring configuration for the best tone
• Clear wiring diagram included for easy installation
• Ships to your USA front door For FREE

Product Description

This prewired Premium ES335 wiring harness is built using premium components selected for reliability and tonal performance.  The vintage 50s wiring helps maintain clarity when rolling down the volume while delivering smooth and responsive tone control. Improves sustainability.

What's Included

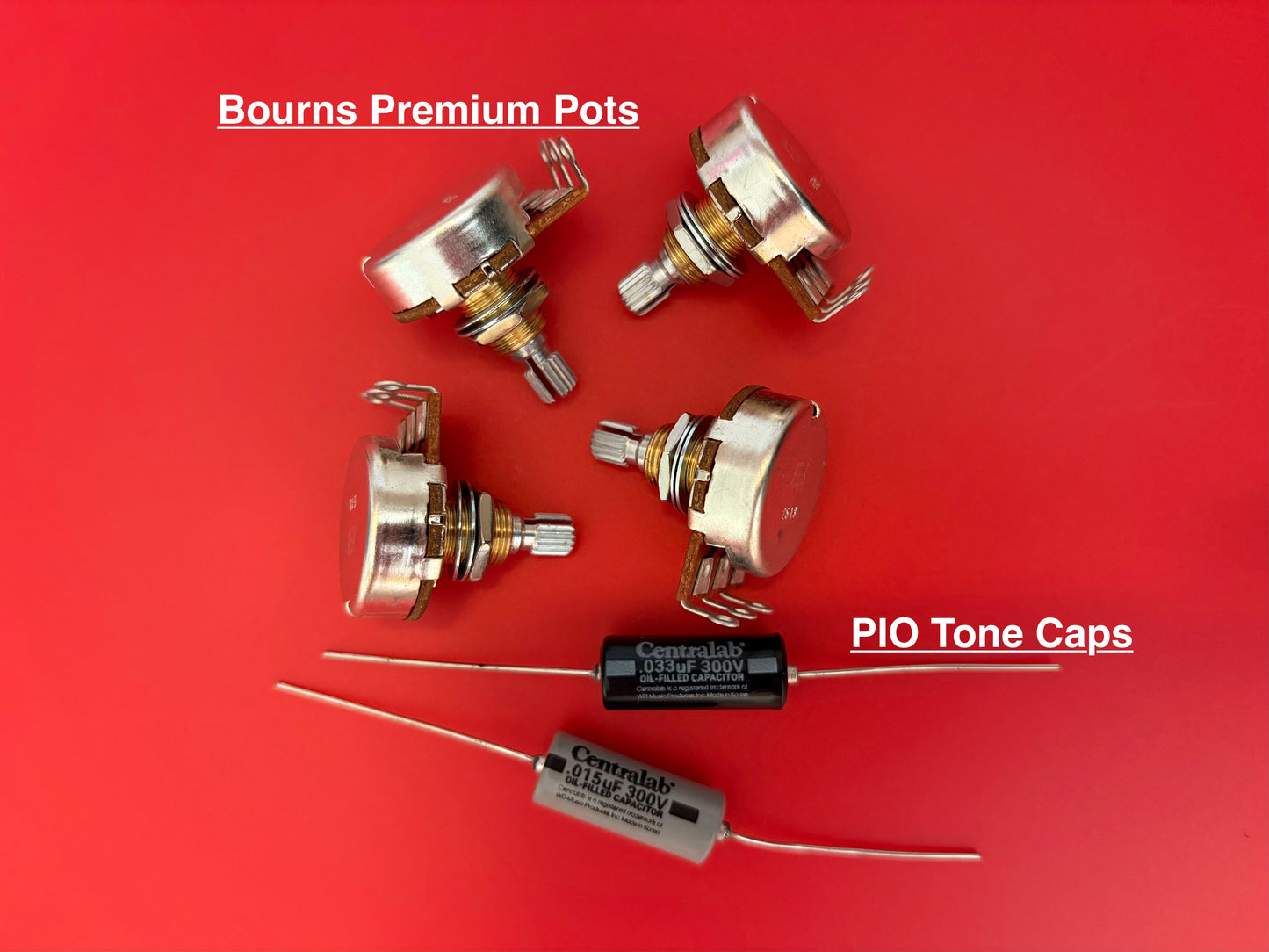

• Bourns Pro Audio 500K potentiometers coarse spline (short shaft)
• Paper in Oil tone capacitors Centralab .033uf bridge .015uf neck
• Switchcraft or Centralab 3-way toggle switch prewired black tip
• Switchcraft 1/4-inch jack
• Vintage style Braided Gavitt 22 awg push-back wire
• Fully prewired harness assembly board drilled to specs
• Wiring diagram and installation instructions

For additional various product details see our Product Information page.

Tone Benefits

• Improved clarity and signal response and Sustain
• Smooth volume and tone controls
• Vintage style tonal response
• Reliable professional grade components

Compatibility

• Gibson and Epiphone ES335, ES339, Casino
• Sheraton may have smaller f hole. If too small contact us we may have option
• Knob fitting requires 18 teeth coarse spline knobs (we sell new knobs)
• Pot hole size requirements 3/8 inch
• Jack wire run length long enough to reach edge of body 9"
• If you're not sure what you need reach back to us thru the "Contact Us" link


Template component distance measurements. Compare to your guitar

• Volume to volume 2.5" Tone to tone 2.5"
• Volume to tone 2.75" Jack to switch  wire run 9"
• Switch to neck volume 2"
• F-hole min width at widest V 1-1/8" for harness feed thru

This wiring harness is custom built to order after purchase.  Lead time to build kit prior to shipping is 5 to 10 business days. In stock means we have the parts to build your kit.

Cheers,

Gary Standerfer / Tone Man Guitar
