Epiphone DOT Studio Premium Series Prewire PIO Tone Cap

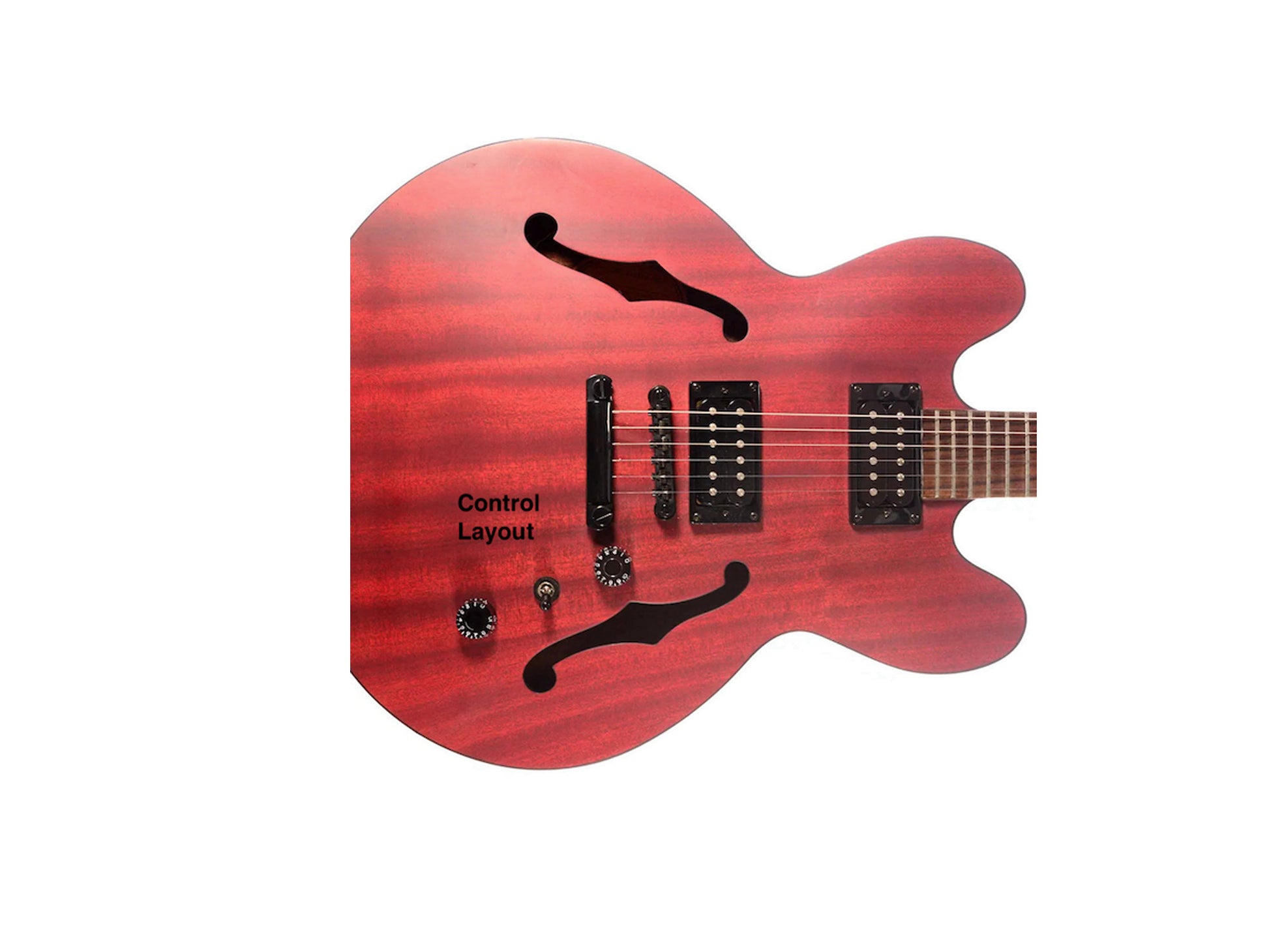

Epiphone DOT Studio hollow body with single volume & tone controls, switch & jack located in lower body.  See photo.

Template component measurements center to center:

• Volume to tone 4.2" Jack wire run 4 inches

What's In The Kit:

• Bourns 500K Pro Audio Pots Short-Split Shaft Audio Taper 3/8 inch bushing Coarse spline
• Switchcraft or Centralab (brand depends on availability) 3-way toggle switch black tip.
• Vintage Gavitt Cloth Push back wire thru out
• K42Y-2 PIO Vintage Aged NOS PIO .022uf tone cap
• Switchcraft ¼ inch output jack Chrome

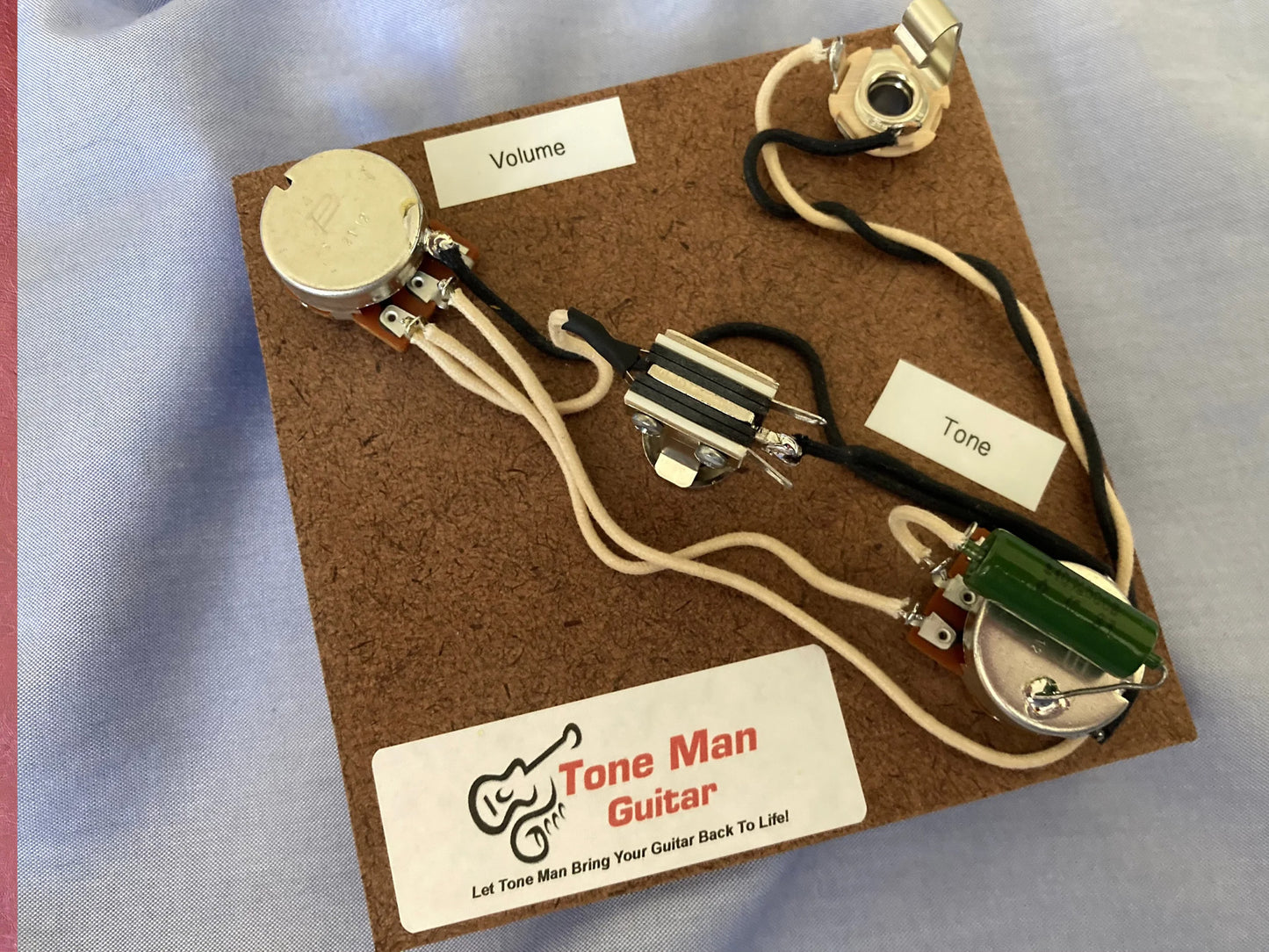

• Assembly Template Board assembled except for final hook up of Pickups connections and grounds
• Wiring diagram and installation instructions.
• Every kit goes thru our Performance and Accuracy Testing procedures before being shipped out. Our kits work.

For additional product details go to our Product Information page.

NOTES:

• Note: If you have an imported guitar (e.g. Japan, China, etc.) you may need to widen the potentiometer holes to 3/8 inch to accommodate the Bourns full size bushings.
• Kit feed thru f holes and requires a min 1-1/16 inch width at widest v opening.

• Each harness is custom built after purchase.  Lead time to build the kit is 6 to 12 business days depending on our back log of orders.  In stock means we have the parts to build the kit.
